Cub Cadet 551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment Blower Housing Parts Lookup with Diagrams

1

Cub Cadet 05139A

Guide Blade

(Superseded to 790-00181-0637) 

Variations

Cub Cadet 05139A-0498

USE 790-00181-0637 BLADE-GUID - OLD CUB YELLOW (0498)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0637

USE 790-00181-0637 BLADE-GUID - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0638

USE 790-00181-0637 BLADE-GUID - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0662

USE 790-00181-0637 BLADE-GUID - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0665

USE 790-00181-0637 BLADE-GUID - YARDMAN GREEN (0665)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0674

USE 790-00181-0637 BLADE-GUID - YARDMAN YELLOW (0674)

$45.99

$

Usually ships in 3-6 days

Cub Cadet 05139A-0716

USE 790-00181-0637 BLADE-GUID - CUB YELLOW-99 (0716)

$45.99

$

Usually ships in 3-6 days

$45.99

$

Usually ships in 3-6 days

2

Cub Cadet 618-0242

Gear Box Ass'y

$

Not available 

3

Cub Cadet 684-0068

Blower Housing Ass'y

(Superseded to 684-0068B) 

Variations

Cub Cadet 684-0068-0498

45" HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 684-0068-0637

45" HOUSING (POWDER BLACK) - POWDER BLACK (0637)

$

Not available 

$

Cub Cadet 777-0783

Graphic, Warning

$

Not available 

Cub Cadet 777-2361A

Graphic, Danger Rotating Auger

$

Currently unavailable 

Cub Cadet 777-2658

Graphic, Cub Cadet

(Superseded to 777D09506) 

$19.99

$

Usually ships in 3-6 days

Cub Cadet 779-3538

Graphic, Weight Needed

$

Not available 

4

Cub Cadet 703-2869

Belt Cover

Variations

Cub Cadet 703-2869-0498

BELT COVER - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 703-2869-0637

BELT COVER - POWDER BLACK (0637)

$

Not available 

$

5

Cub Cadet 703-2870

Bracket, Belt Cover

Variations

Cub Cadet 703-2870-0498

BELT COVER BRACKET - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 703-2870-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

Not available 

$

6

Cub Cadet 710-0389

Bolt, Carriage, 3/8-16 X .75

$4.99

$

Usually ships in 3-6 days

7

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

8

Cub Cadet 710-0653

Screw, Hex Wash. Hd. Tapp 1/4-20 X .375

$4.99

$

In Stock, only 1 left!

9

Cub Cadet 710-0696

Screw, Hex Cap, 3/8-24 X .875 GR8.

$7.49

$

In Stock, only 1 left!

10

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 GR5

$4.49

$

In Stock, Qty 20+

11

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 GR5

$4.49

$

In Stock, Qty 20+

12

Cub Cadet 712-0130

Nut, Hex Insert Lock, 3/8-16

$4.49

$

Usually ships in 3-6 days

13

Cub Cadet 712-0267

Nut, Hex, 5/16-18

(Superseded to 912-3010) 

$4.99

$

In Stock, Qty 20+

14

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, only 3 left!

15

Cub Cadet 712-0429

Nut, hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

16

Cub Cadet 731-1696

Adapter, Discharge Chute

(Superseded to 731-1696B) 

$96.99

$

In Stock, Qty 9

17

Cub Cadet 736-0105

Washer, Bell, .401 X .870 X .063 Thk

$4.99

$

In Stock, Qty 20+

18

Cub Cadet 736-0119

Washer, Lock, 5/16

(Superseded to 936-0119) 

$4.99

$

In Stock, Qty 20+

19

Cub Cadet 736-0235

Washer, Flat, 3/8 X 1.26 X .172 Thk

(Superseded to 736-0247) 

$10.99

$

In Stock, Qty 20+

20

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06 Thk

$4.99

$

In Stock, Qty 20+

21

Cub Cadet 756-3087

Pulley

$150.99

$

Usually ships in 3-6 days

22

Cub Cadet 784-5696

Plate, Shave

(Superseded to 790-00280-0637) 

Variations

Cub Cadet 784-5696-0498

Shave Plate, 45" Black - OLD CUB YELLOW (0498)

$64.99

$

In Stock, only 2 left!

Cub Cadet 784-5696-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 2 left!

Cub Cadet 784-5696-0650

Shave Plate, 45" Black - RED METALLIC (0650)

$64.99

$

In Stock, only 2 left!

Cub Cadet 784-5696-0716

Shave Plate, 45" Black - CUB YELLOW-99 (0716)

$64.99

$

In Stock, only 2 left!

$64.99

$

In Stock, only 2 left!

23

Cub Cadet 784-5697

Shoe, Skid

Variations

Cub Cadet 784-5697-0498

Snow Skid Shoe, Yellow - OLD CUB YELLOW (0498)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$46.99

$

In Stock, only 2 left!

Cub Cadet 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$46.99

$

In Stock, only 2 left!

$48.99

$

Usually ships in 3-6 days

24

Cub Cadet 784-5703

Bracket, Gear Box Mtg.

(Superseded to 784-5703-0637) 

Variations

Cub Cadet 784-5703-0637

Bearing Mounting Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

$51.99

$

Usually ships in 3-6 days

25

Cub Cadet 784-5711

Bracket, Chute

(Superseded to 784-5711-0637) 

Variations

Cub Cadet 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

Not available 

$

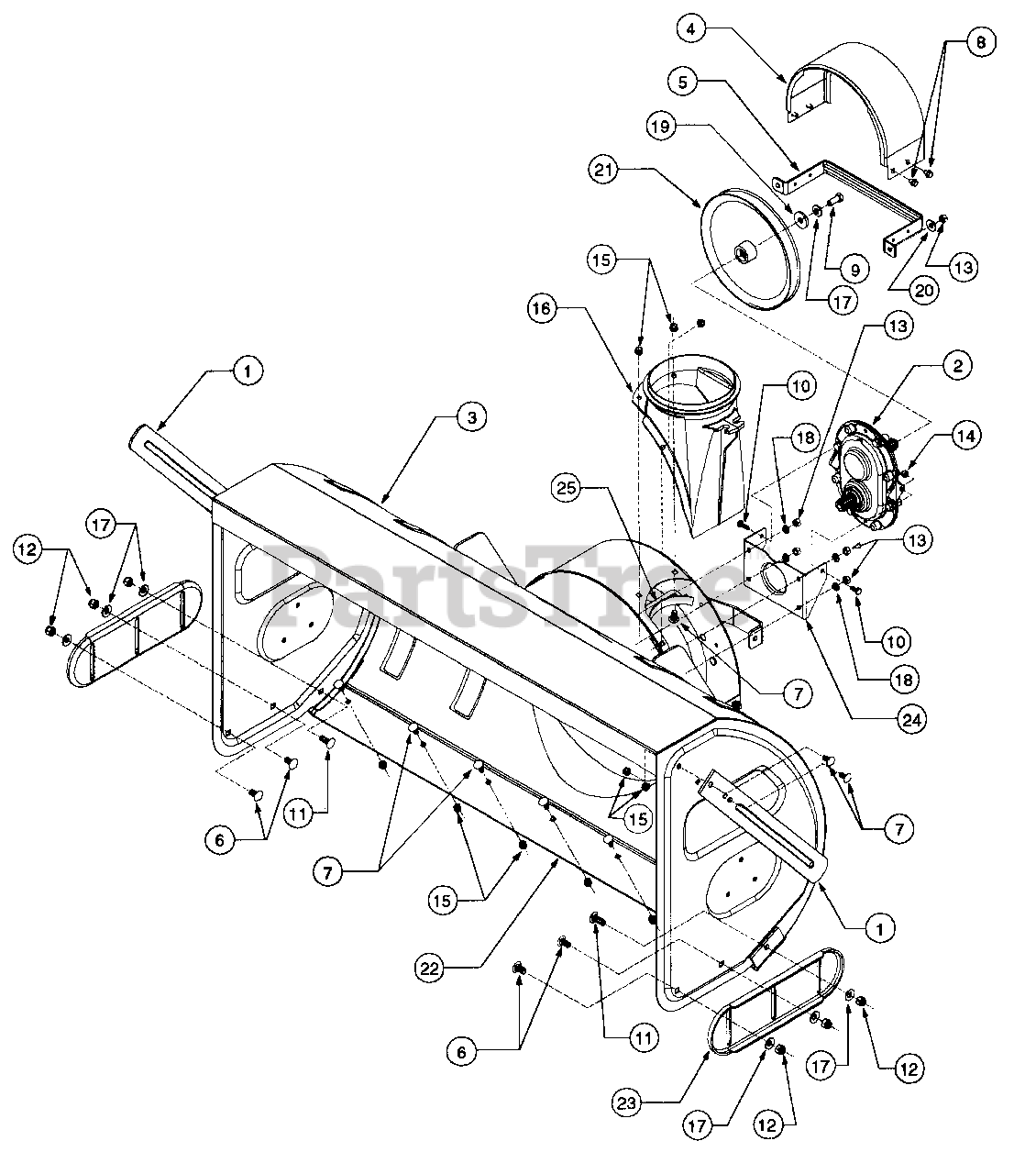

551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment Blower Housing Parts Diagram

Blower Housing Parts Diagram
