55101 - Toro Compact Suburban Lawn Tractor, Electric (SN: 008000001 - 008999999) (1968) WHEEL AND AXLE ASSEMBLY Parts Diagram

Compact Suburban Lawn Tractor, Electric

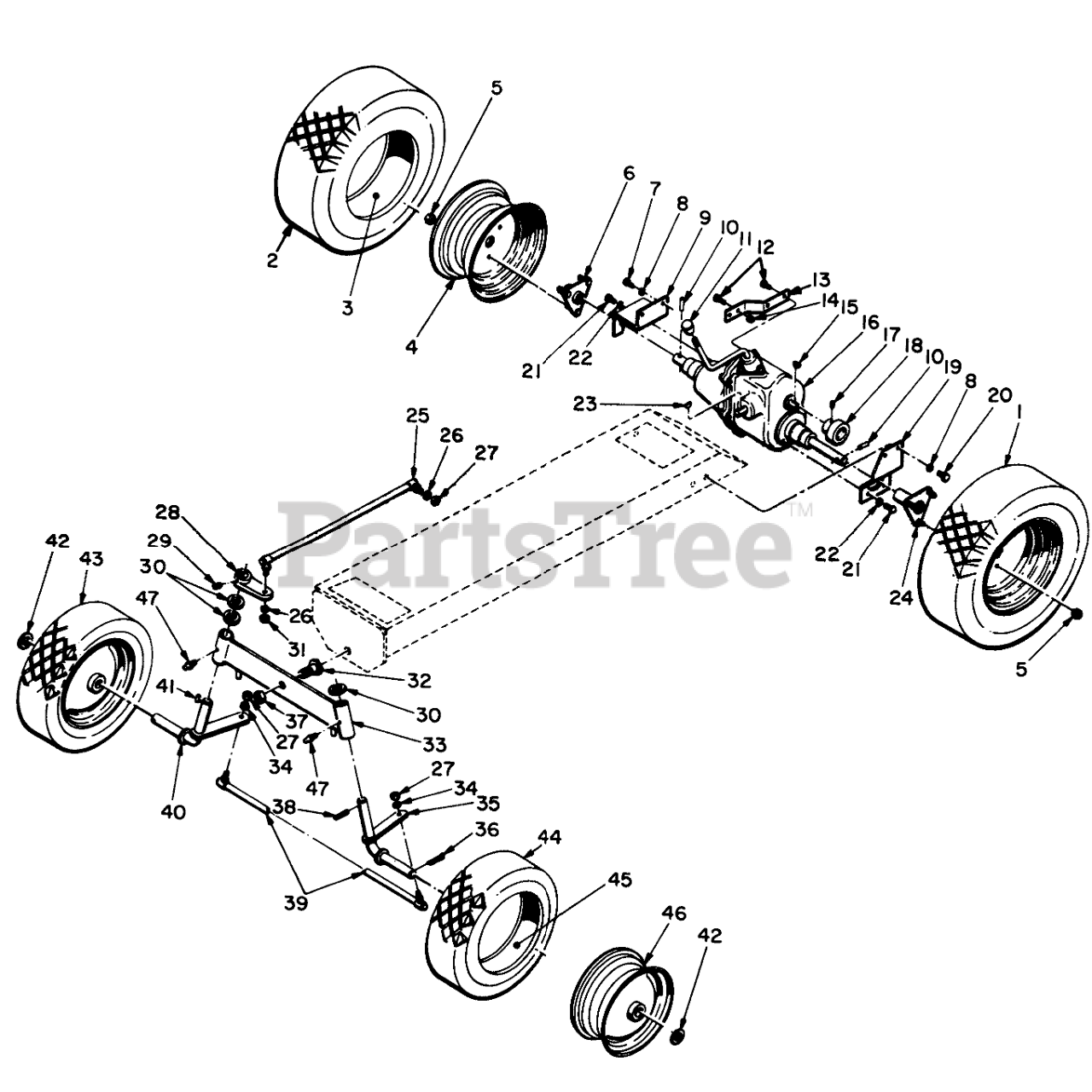

WHEEL AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 241-90(s

Rear Wheel Assy

$

$

Currently unavailable

2

Toro 231-39(s

Terra Tire, 6.50 x 8, 16-in. dia.

$

$

Currently unavailable

3

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$7.49

$

In Stock, Qty 8

0

4

Toro 217-69(s

Wheel

$

$

Currently unavailable

5

Toro 242-32

LUG NUT

$

$

Currently unavailable

6

Toro 217-66(s

Wheel Hub, RH

$

$

Currently unavailable

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

9

Toro 7-0833

Axle Support, RH

$

$

Currently unavailable

10

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 18

0

Toro 32121-51

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

11

233-21(s

Knob

$

$

Not available

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 7-0890

Transmission Bracket

$

$

Currently unavailable

14

Toro 32152-1(s

Nut

$

$

Currently unavailable

15

Toro 3257-56(s

Woodruff Key

$

$

Currently unavailable

16

Toro 7-0815

Transmission (transaxle)

$

$

Currently unavailable

17

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

18

Toro 7-0887

Brake Drum

$

$

Currently unavailable

19

Toro 7-0832

Axle Support, LH

$

$

Currently unavailable

20

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

21

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

23

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 15

0

24

Toro 217-67(s

Wheel Hub, LH

$

$

Currently unavailable

25

Toro 7-3342

Steering Rod

$

$

Currently unavailable

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

27

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

0

28

Toro 7-0418

Steering Lever

$

$

Currently unavailable

29

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 2 left!

0

30

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

31

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

32

Toro 7-0851

Leveler Head Bolt

$

$

Currently unavailable

33

Toro 7-0850

Wheel Support

$

$

Currently unavailable

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

35

Toro 7-0852

Axle Assy, LH

$

$

Not available

36

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

37

32152-6(s

Nut

$

$

Not available

38

Toro 32151-15

Roll Pin

$

$

Currently unavailable

39

Toro 7-0854

Tie Rod

$

$

Currently unavailable

40

Toro 7-0853

Axle Assy, RH

$

$

Not available

41

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 10

0

42

Toro 7-0126

Washer

$

$

Not available

43

Toro 7-3360

Wheel Assy.

Note: Incorporates 2- Num 256-175(s) bearings, and 1- Num 302-5 zerk fitting.

$

$

Not available

44

231-49(S

Tire

$

$

Not available

45

Toro 232-27(S

Valve

$

$

Currently unavailable

46

Toro 241-105(s

Wheel

$

$

Currently unavailable

47

Toro 302-43(s

Grease Fitting

$

$

Currently unavailable
