55150 (940) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) 940 ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor, Electric

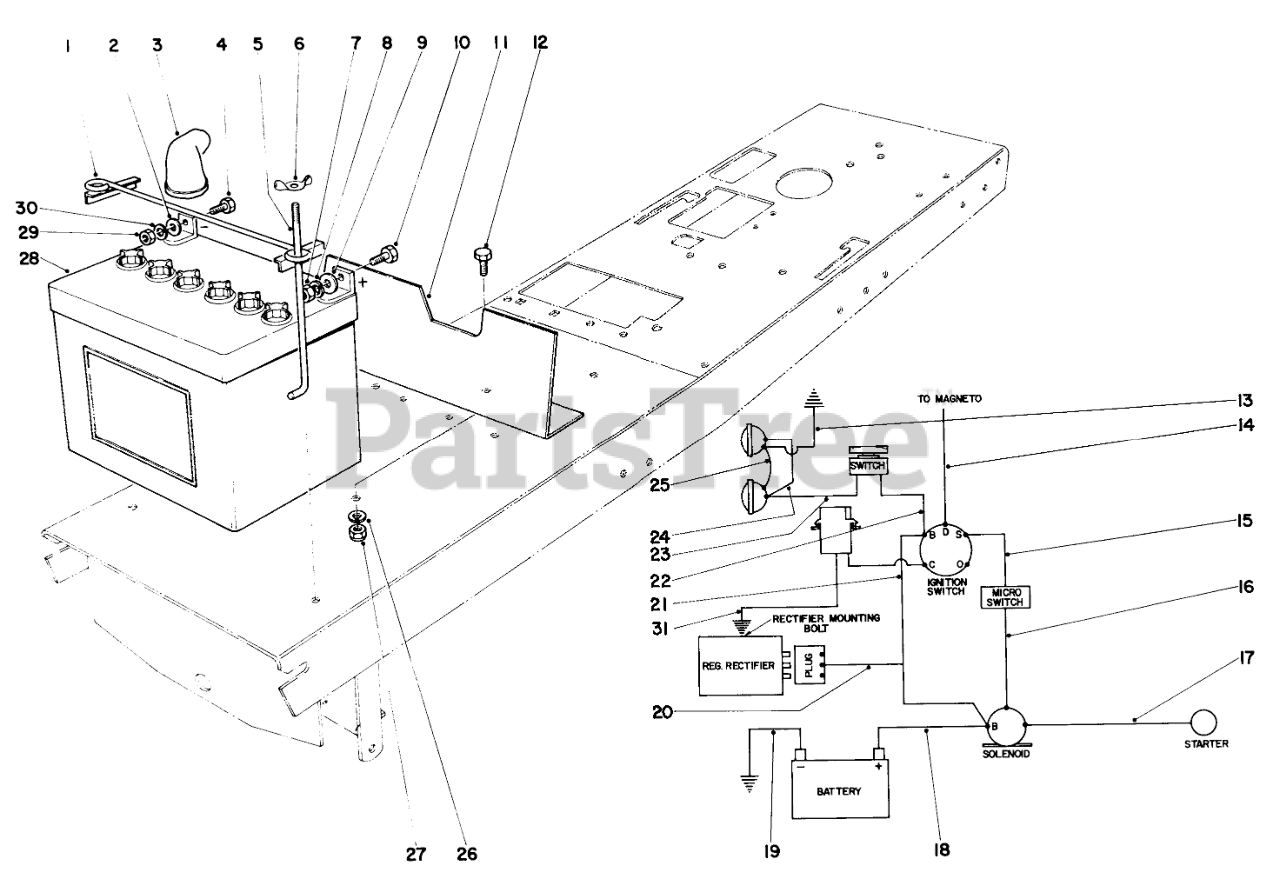

940 ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

2

Toro 7-0024

Washer

$

$

Currently unavailable

3

218-331S

Battery Boot

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

6

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

7

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

3256-16S

Washer

$

$

Not available

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 7-4328

Heat Shield

$

$

Currently unavailable

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 7-3541

Wire Assy.-Red

$

$

Currently unavailable

14

Toro 7-4282

Wire Assy. Switch To Magneto

$

$

Currently unavailable

15

Toro 7-4283

Wire Assy. Switch to Micro Switch

$

$

Currently unavailable

16

Toro 7-4267

Wire Assy. Micro Switch to Solenoid

$

$

Currently unavailable

17

Toro 7-4270

Wire Assy. Solenoid to Starter

$

$

Currently unavailable

18

Toro 7-4268

Wire Assy. Solenoid to Battery

$

$

Currently unavailable

19

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

20

Wire Assy. Switch to Reg. Rectifier

Note: See your local Tecumseh dealer.

$

$

Not available

21

Toro 7-4271

Wire Assy. Switch to Solenoid

$

$

Currently unavailable

22

Toro 7-4257

Wire Assy.-Red

$

$

Currently unavailable

23

Toro 7-3540

Wire Assy.

$

$

Currently unavailable

24

Toro 7-3543

Wire 960

$

$

Currently unavailable

25

Toro 7-3538

Wire 960

$

$

Currently unavailable

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

32152-1S

Nut

$

$

Not available

28

239-13S

Battery

$

$

Not available

29

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 7-4490

Wire Assy.

$

$

Currently unavailable

Toro 7-4670

Wire Harness (Incl. Ref. #14, 15, 21 & 23)

Note: Not Illustrated.

$

$

Currently unavailable
