55150 (940) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) Starter Motor No. 32468 Parts Diagram

Lawn Tractor, Electric

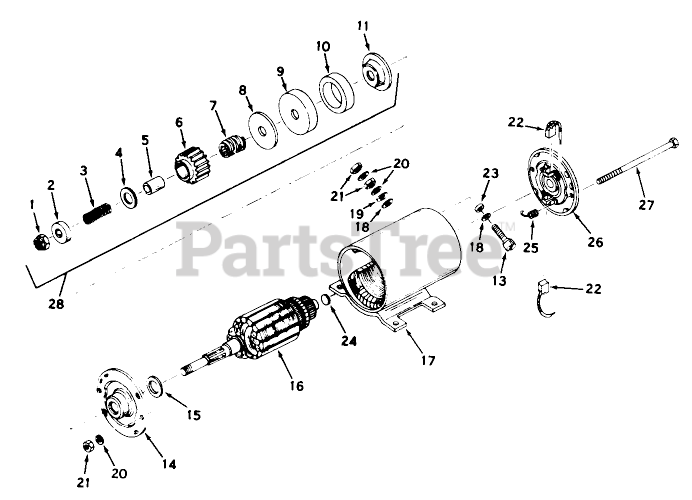

Starter Motor No. 32468 Parts Diagram

  • Title

1

Toro 32483

Nut, Hex

$

$

Currently unavailable

2

Toro 32484

Setscrew

$

$

Currently unavailable

3

Toro 32485

Spring, Anti drift

$

$

Currently unavailable

4

Toro 32486

Washer, Pinion

$

$

Currently unavailable

5

Toro 32487

Sleeve, Anti drift

$

$

Currently unavailable

6

Toro 32488

Gear, Pinion

$

$

Currently unavailable

7

Toro 32489

Shaft, Screw

$

$

Currently unavailable

8

Toro 32490

Washer, Thrust

$

$

Currently unavailable

9

Toro 32491

Cup, Cushion

$

$

Currently unavailable

10

Toro 32492

Cushion, Rubber

$

$

Currently unavailable

11

Toro 32493

Washer, Thrust

$

$

Currently unavailable

13

Toro 32499

Bolt, Terminal

$

$

Currently unavailable

14

Toro 32494

Cap Assy., Drive end (Incl. Bearing)

$

$

Currently unavailable

15

Toro 32495

Washer, Spacing (.024 Thick)

$

$

Currently unavailable

15

Toro 32496

Washer, Spacing (.008 Thick)

$

$

Currently unavailable

16

Toro 32497

Armature

$

$

Currently unavailable

17

Toro 32498

Housing-Assy. (Incl. pole shoes, field coils, terminal post, straight mounting bracket, Nos. 18 thru 21)

$

$

Currently unavailable

18

Toro 32500

Washer, Insulating

$

$

Currently unavailable

19

Toro 650168

Washer

$

$

Currently unavailable

20

Toro 650131

Washer, Lock

$

$

Currently unavailable

21

Toro 28710

61710/VAR.HILLER AT

$3.23

$

Usually ships in 3-6 days

0

22

Toro 32505

Brush Spring Kit

$

$

Currently unavailable

23

Toro 32501

Bushing, Insulating

$

$

Currently unavailable

24

Toro 32509

Washer, Spring

$

$

Currently unavailable

25

Toro 32507

Spring, Brush

$

$

Currently unavailable

26

Toro 32506

End Cap Assy., Commutator

$

$

Currently unavailable

27

Toro 32508

Bolt, Thru

$

$

Currently unavailable

28

Toro 32481

Drive Assy., Complete (Incl. Nos. 1 thru 11)

$

$

Currently unavailable
