55152 (888) - Toro Toromatic Lawn Tractor (SN: 000000001 - 000999999) (1970) CHASSIS ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

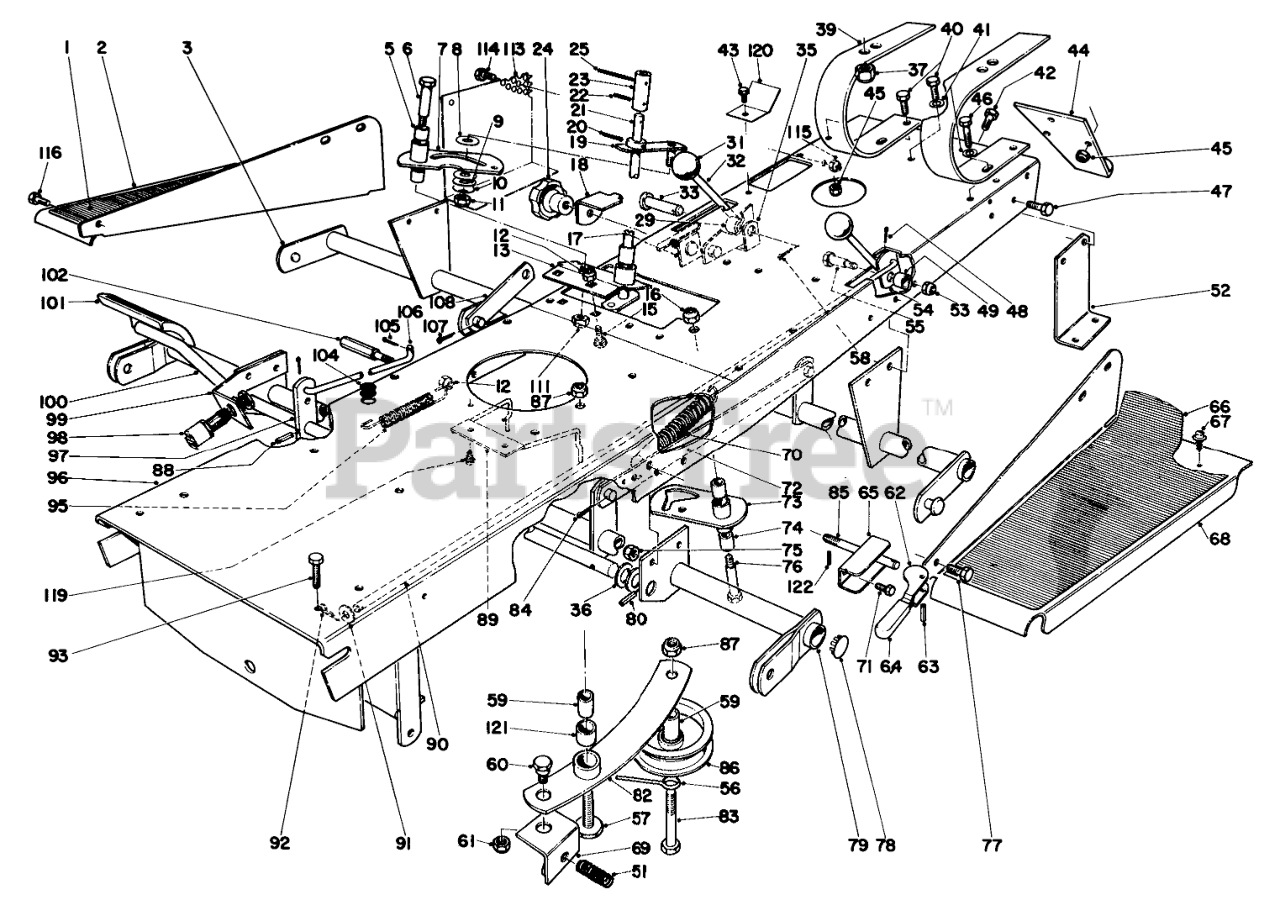

CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-5770

Cross Tube

$

$

Currently unavailable

5

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

6

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

7

Toro 7-4164

Cam Plate (Incl. Ref. #5)

$

$

Currently unavailable

8

Toro 7-4182

Washer

$

$

Currently unavailable

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3290-301S

Spring Washer

$

$

Currently unavailable

11

Toro 32152-7S

Nut

$

$

Currently unavailable

12

32152-1S

Nut

$

$

Not available

13

Toro 7-4166

Bracket-Control

$

$

Currently unavailable

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 32152-2S

Nut

$

$

Currently unavailable

17

Toro 7-3667

Knob Plate

$

$

Currently unavailable

18

Toro 7-4098

Slide

$

$

Not available

19

Toro 7-4160

Control Crank

$

$

Currently unavailable

20

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

21

Toro 7-4172

Handle Hydro Control

$

$

Currently unavailable

22

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Toro 7-4181

Sleeve Handle

$

$

Currently unavailable

24

Toro 7-3902

Knob

$

$

Not available

25

Toro 32121-82

Roll Pin

$

$

Currently unavailable

29

Toro 7-4237

Spacer

$

$

Currently unavailable

31

Toro 233-24S

Knob

$

$

Currently unavailable

32

Toro 7-4076

Lever

$

$

Currently unavailable

33

Toro 7-4265

Pin

$

$

Currently unavailable

35

Toro 7-4245

Support Height of Cut Lever

$

$

Currently unavailable

36

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

37

Toro 32152-3S

Nut

$

$

Currently unavailable

39

Toro 7-5130

Seat Spring

$

$

Not available

40

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

42

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

43

Toro 32140-1

10-24X1/2 OVAL HD SEMS

$

$

Not available

44

Toro 7-4032

Hitch

$

$

Currently unavailable

45

Toro 32152-2S

Nut

$

$

Currently unavailable

46

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

48

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

49

Toro 7-4070

Spacer

$

$

Currently unavailable

51

Toro 7-5840

Compression Spring

$

$

Currently unavailable

52

Toro 7-4187

Axle Support L.H.

$

$

Currently unavailable

Toro 7-4470

Axle Support R.H.

Note: Not illustrated

$

$

Currently unavailable

53

Toro 32152-2S

Nut

$

$

Currently unavailable

54

Toro 7-4073

Lever

$

$

Currently unavailable

55

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

56

Toro 7-6530

Belt Retainer

$

$

Currently unavailable

57

Toro 32141-84

3/8-16 X 1-1/2 BOLT

$

$

Not available

58

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

59

Toro 7-6550

Idler Spacer

$

$

Currently unavailable

60

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 3 left!

0

61

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

62

Toro 7-5780

Idler Crank

$

$

Currently unavailable

63

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

64

Toro 7-6560

Handle Grip

$

$

Currently unavailable

65

Toro 7-5850

Retainer Idler

$

$

Currently unavailable

66

Toro 7-4130

Pad Left

$

$

Not available

67

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

68

Toro 7-4034

Footrest

$

$

Currently unavailable

69

Toro 7-5860

Swivel Bracket

$

$

Currently unavailable

70

Toro 7-4292

Spring Counterbalance

$

$

Not available

71

Toro 32140-1

10-24X1/2 OVAL HD SEMS

$

$

Not available

72

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

73

Toro 7-4170

Plate Neutralizer (Incl. Ref. #74)

$

$

Currently unavailable

74

Toro 256-172S

Bushing

$

$

Currently unavailable

75

32152-1S

Nut

$

$

Not available

76

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

77

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

78

Toro 2410-26S

Plug Button

$

$

Currently unavailable

79

Toro 7-4022

Cross Tube Front

$

$

Currently unavailable

80

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

82

Toro 7-5830

Bracket Idler

$

$

Currently unavailable

83

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

84

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

85

Toro 7-6540

Adjustment Rod

$

$

Currently unavailable

86

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 2 left!

0

87

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

88

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

89

Toro 7-6490

Belt Guide

$

$

Currently unavailable

90

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

91

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

92

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

93

Toro 32104-28

He Ha. Screw

$

$

Not available

95

Toro 7-4291

Spring

$

$

Not available

96

Toro 7-5440

Frame Hydrostatic

$

$

Currently unavailable

97

Toro 7-4183

Pedal Crank Neutralizer

$

$

Currently unavailable

98

Toro 7-4256

Switch

$

$

Not available

99

Toro 7-4235

Bracket Switch

$

$

Currently unavailable

100

Toro 7-5680

Pedal

$

$

Currently unavailable

101

Toro 7-3900

PAD-BRAKE

$31.99

$

In Stock, only 3 left!

0

102

Toro 7-4590

Brake Stop

$

$

Currently unavailable

104

Toro 237-62

GROMMET

$

$

Currently unavailable

105

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

106

Toro 7-4185

Link Neutralizer

$

$

Currently unavailable

107

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

108

Toro 7-4195

Lift Link

$

$

Currently unavailable

111

Toro 32152-2S

Nut

$

$

Currently unavailable

113

Toro 7-4460

Fan Guide Side

$

$

Currently unavailable

114

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

115

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

116

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

119

Toro 32140-58

10-32 X 1/2 PHILLIPS

$

$

Not available

120

Toro 7-5900

Shield Fan

$

$

Currently unavailable

121

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

122

Toro 32121-7

PIN-ROLL, SLOTTED

$

$

Currently unavailable
