55152 (888) - Toro Toromatic Lawn Tractor (SN: 000000001 - 000999999) (1970) DASH AND TRANSAXLE ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

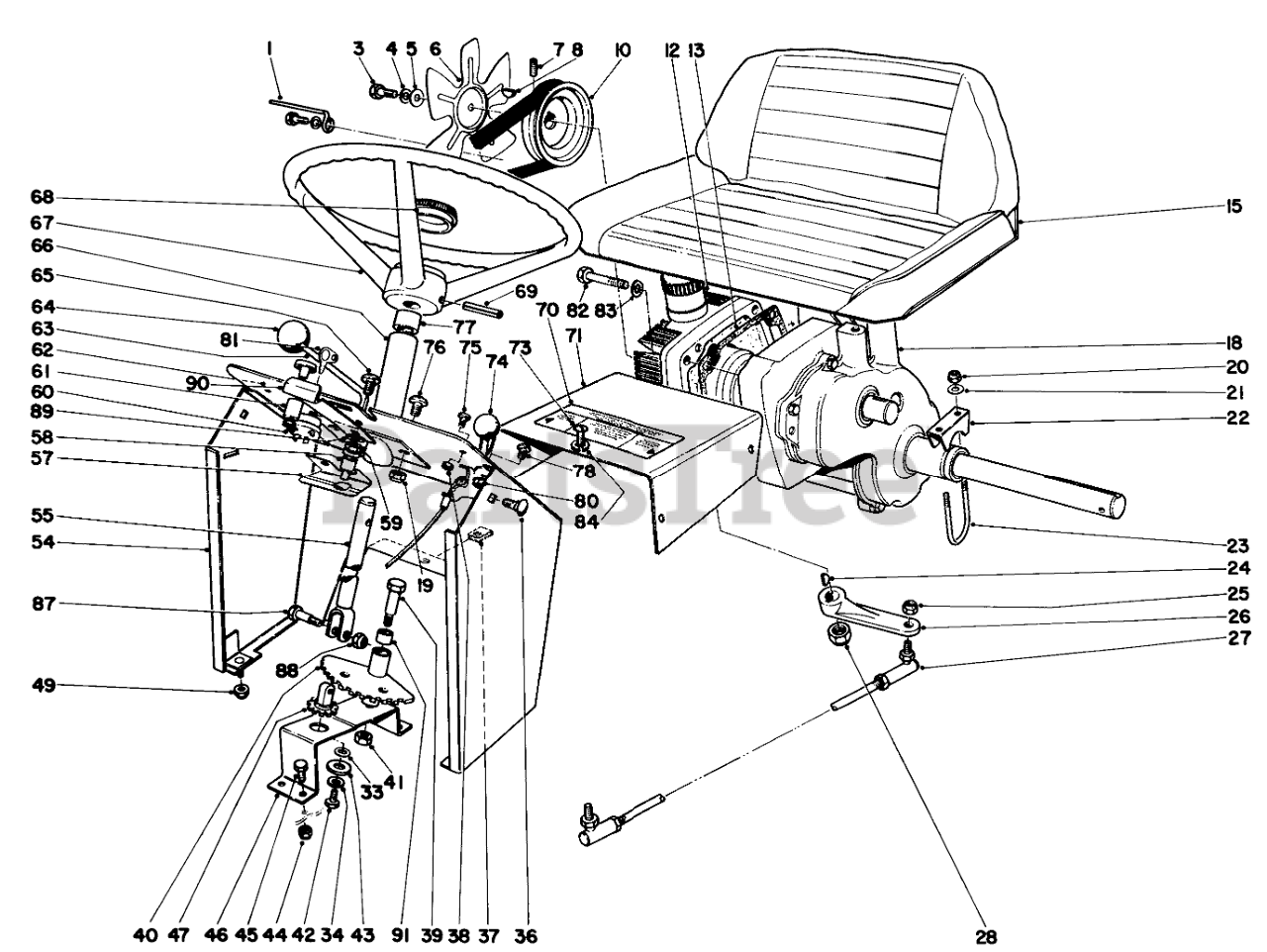

DASH AND TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4304

Belt Guide

$

$

Currently unavailable

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 7-4226

Fan

$

$

Currently unavailable

7

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

10

Toro 7-4142

Pulley

$

$

Currently unavailable

12

Toro 7-5480

Hydrostatic Transmission

Note: Defective Hydrostatic Units should be replaced rather than attempting repairs.

$

$

Currently unavailable

13

Toro 7-4313

Gasket

$

$

Currently unavailable

15

Toro 7-6110

Seat

$

$

Currently unavailable

18

Toro 7-4224

Transaxle

$

$

Currently unavailable

19

32152-1S

Nut

$

$

Not available

20

Toro 32152-5S

Locknut

$

$

Currently unavailable

21

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 7-0203

Axle Bracket

$

$

Currently unavailable

23

Toro 7-0202

U-Bolt

$

$

Currently unavailable

24

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

25

Toro 32152-5S

Locknut

$

$

Currently unavailable

26

Toro 7-4176

Lever Hydrostatic

$

$

Currently unavailable

27

Toro 4-4184

Control Rod Transmission

$

$

Currently unavailable

28

Toro 32152-2S

Nut

$

$

Currently unavailable

33

Toro 7-5990

Spacer

$

$

Not available

34

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

37

Toro 3290-192

SPEED NUT

$

$

Not available

38

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

39

Toro 7-5500

Shoulder Bolt

$

$

Currently unavailable

40

Toro 7-5920

Gear Steering

$

$

Not available

41

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

42

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 7-6640

Washer

$

$

Not available

44

32152-1S

Nut

$

$

Not available

45

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 7-4148

Bracket

$

$

Not available

47

Toro 7-6000

Pinion Steering

$

$

Not available

49

32152-1S

Nut

$

$

Not available

54

Toro 7-5590

Dash

$

$

Currently unavailable

55

Toro 7-5960

Steering Shaft

$

$

Currently unavailable

57

Toro 7-4180

Spring Detent

$

$

Currently unavailable

58

Toro 256-172S

Bushing

$

$

Currently unavailable

59

Toro 32152-4S

Nut

$

$

Currently unavailable

60

Toro 7-5240

STARTER SWITCH

$

$

Not available

61

Toro 7-1780

Light Switch

$

$

Currently unavailable

62

Toro 7-5620

Decal Dash

$

$

Currently unavailable

63

Toro 7-4178

Handle Hydro Control

$

$

Currently unavailable

64

Toro 233-24S

Knob

$

$

Currently unavailable

65

Toro 3229-23

Carriage Bolt
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

66

Toro 7-4038

Steering Tube (Incl. Ref. #77)

$

$

Currently unavailable

67

Toro 238-5S

Steering Wheel

$

$

Currently unavailable

68

Toro 7-4323

Steering Wheel Cap

$

$

Not available

69

32121-78S

Roll Pin

$

$

Not available

70

Toro 7-6620

Decal

$

$

Currently unavailable

71

Toro 7-5320

Tunnel

$

$

Currently unavailable

73

Toro 3258-2

SCREW

$

$

Not available

74

Toro 7-5370

Throttle Control

$

$

Not available

75

Toro 3290-305

Screw

$

$

Currently unavailable

76

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

77

Toro 256-167S

Bushing

$

$

Currently unavailable

78

Toro 3290-305

Screw

$

$

Currently unavailable

80

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

81

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

82

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 18

0

83

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

84

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

87

Toro 7-6010

Screw Shoulder

$

$

Currently unavailable

88

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

89

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

90

Toro 7-5080

Hood Latch

$

$

Currently unavailable

91

Toro 256-100

BUSHING

$

$

Not available
