55152 (888) - Toro Toromatic Lawn Tractor (SN: 000000001 - 000999999) (1970) ELECTRICAL ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

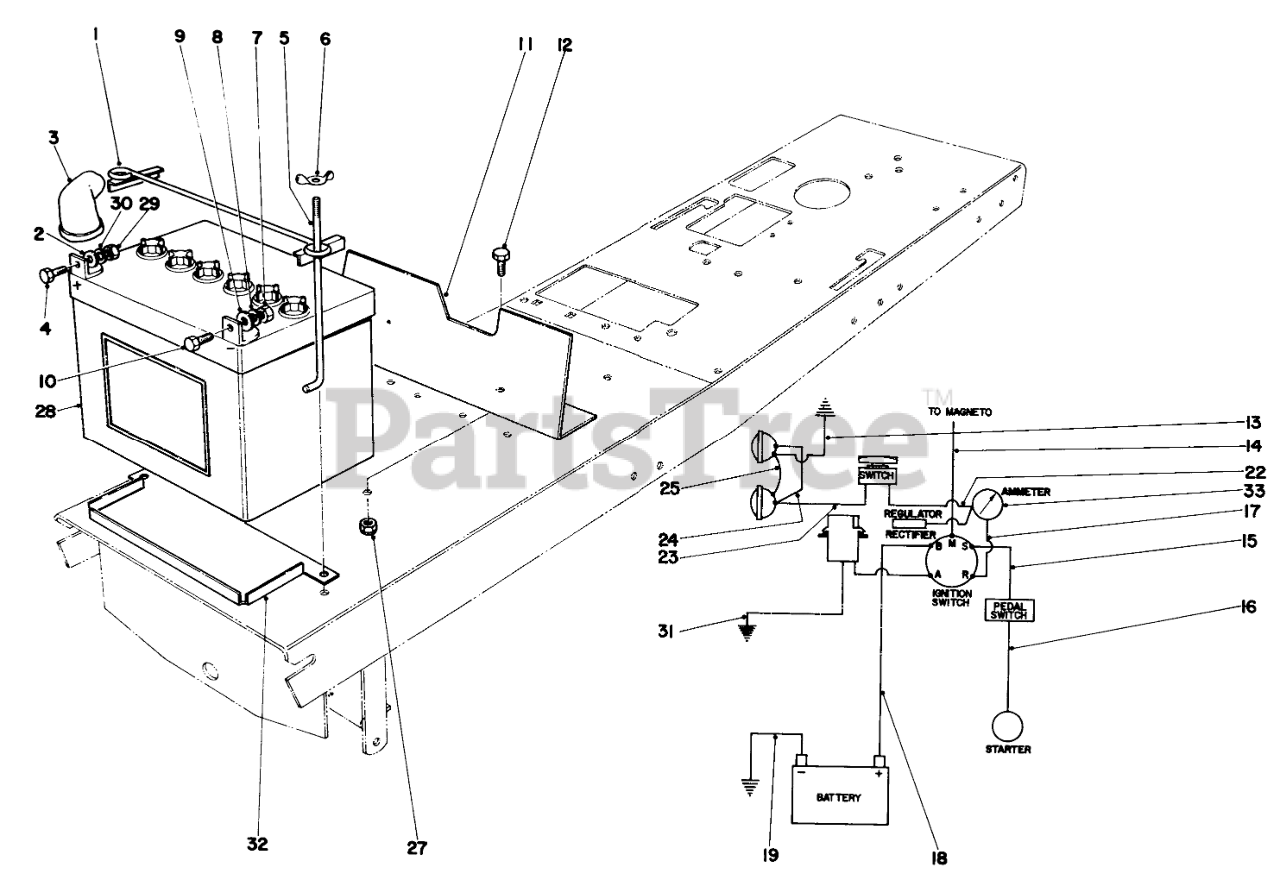

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

2

Toro 7-0024

Washer

$

$

Currently unavailable

3

218-331S

Battery Boot

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

6

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

7

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 7-4328

Heat Shield

$

$

Currently unavailable

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 7-3541

Wire Assy.-Red

$

$

Currently unavailable

14

Toro 7-6220

Wire Switch to Battery

$

$

Currently unavailable

15

Toro 7-6230

Wire Pedal Switch to Starter Switch

$

$

Currently unavailable

16

Toro 7-6160

Wire Assembly

$

$

Currently unavailable

17

Toro 7-6180

Wire Assy. Ammeter to Switch

$

$

Currently unavailable

18

Toro 7-6150

Wire Assy. Switch to Battery

$

$

Currently unavailable

19

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

22

Toro 7-6170

Wire

$

$

Currently unavailable

23

Toro 7-6190

Wire Assy.

$

$

Currently unavailable

24

Toro 7-3543

Wire 960

$

$

Currently unavailable

25

Toro 7-3538

Wire 960

$

$

Currently unavailable

27

32152-1S

Nut

$

$

Not available

28

239-13S

Battery

$

$

Not available

29

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 7-5230

Wire Assembly

$

$

Not available

Toro 7-4670

Wire Harness (Incl. Ref. #14, 15, 21 & 23)

Note: Not illustrated

$

$

Currently unavailable

32

Toro 7-5390

Retainer Battery

$

$

Currently unavailable

33

Toro 7-6130

Ammeter
(Superseded to 33-0990)

$

$

Not available
