5516 RT (1693847) - Simplicity Rear-Tine Tiller, 5hp Engine Mount, Belts & Wheels Group Parts Diagram

Rear-Tine Tiller, 5hp

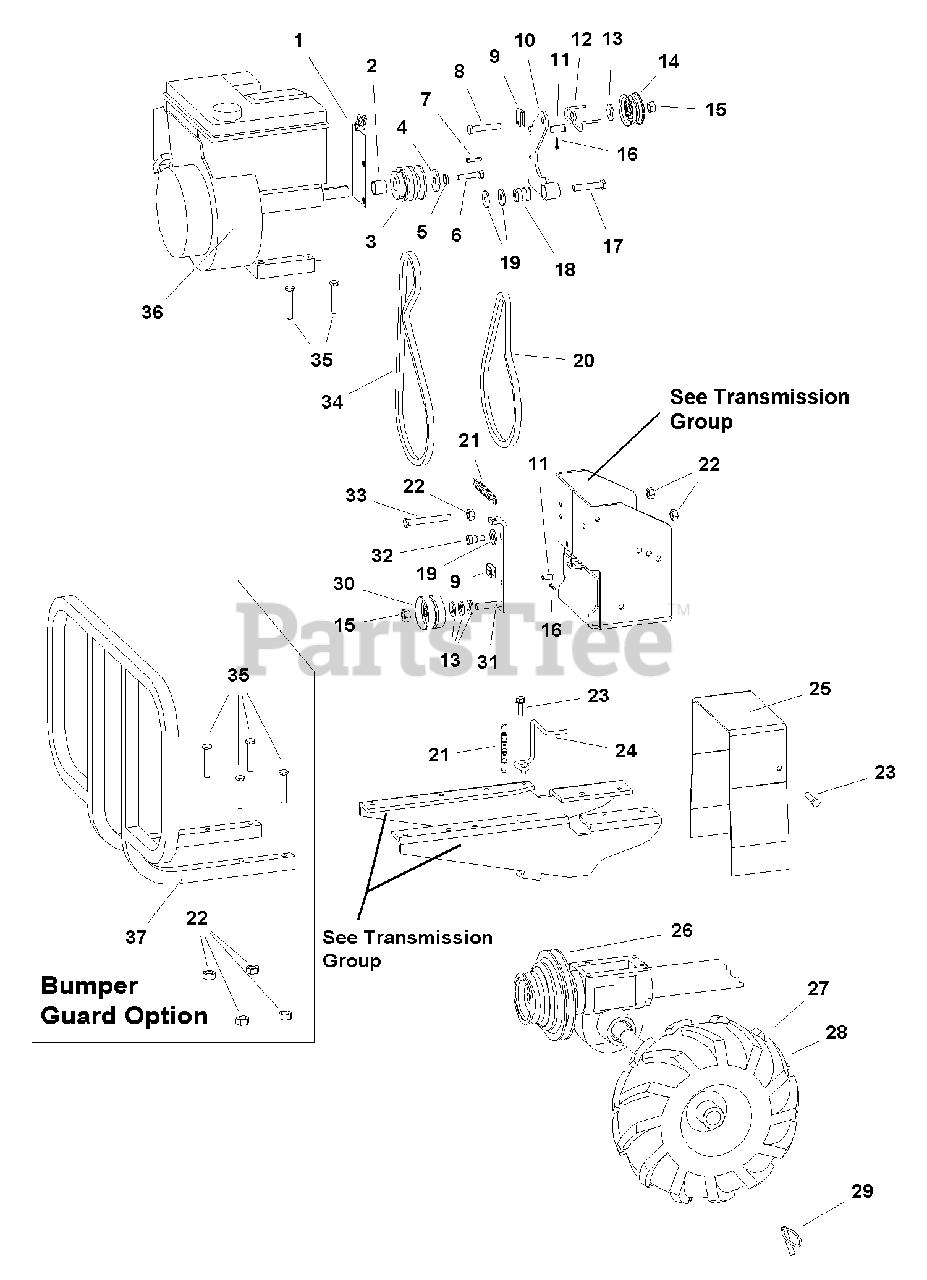

Engine Mount, Belts & Wheels Group Parts Diagram

  • Title

1

Simplicity 1722157SM

BRACKET, Engine

$14.99

$

Usually ships in 2-12 days

0

2

Simplicity 1722164SM

SPACER, Engine

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722158SM

PULLEY, Engine 2 Groove

$185.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716770SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

5

Simplicity 1917356SM

LOCKWASHER, Spring 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1921515SM

CAPSCREW, Hex Head 5/16" - 24 x 3/4" G5

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 2805850SM

KEY, PARALLEL PLN 3/16" x 3/16 x 1-3/32"

$2.49

$

Usually ships in 2-12 days

0

8

Simplicity 1960345SM

CAPSCREW, Hex Head 3/8" - 24 x 2" G5

$2.99

$

In Stock, only 1 left!

0

9

Simplicity 1716728SM

YOKE, Cable

$

$

Not available

10

Simplicity 1722159SM

ARM, Pivot

$

$

Not available

11

Simplicity 1716702SM

PIN, Link Forward/Reverse

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1722162SM

GUIDE, Belt Reverse

$36.99

$

Usually ships in 2-12 days

0

13

Simplicity 1924940SM

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1716805SM

PULLEY, Idler Reverse

$42.99

$

Usually ships in 2-12 days

0

15

Simplicity 1916950SM

NUT, Hex 3/8" - 16NC, 2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

16

Simplicity 1716703SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716760SM

BOLT, Hex Head 5/16" - 24 x 1-1/2"
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1722160SM

PIVOT

$5.49

$

In Stock, only 1 left!

0

19

Simplicity 1960044SM

WASHER, 5/16"

$4.49

$

In Stock, Qty 11

0

20

Simplicity 1716766SM

V-BELT, Forward

$23.99

$

In Stock, Qty 8

0

21

Simplicity 1716802SM

SPRING, Idler Arm

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 1935048SM

NUT, Hex Flange 5/16" - 18 Two, Way Lock GA
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1921332SM

BOLT, Hex Flange Head 5/16" - 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

24

Simplicity 1722161SM

GUIDE, Belt Forward

$26.99

$

Usually ships in 2-12 days

0

25

Simplicity 1722165SM

COVER, Belt

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722163SM

PULLEY, Transmission 2 Groove

$125.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721525SM

Wheel & TIRE ASSEMBLY TILLER, Left

$131.99

$

In Stock, only 1 left!

0

28

Simplicity 1721524SM

Wheel & TIRE ASSEMBLY TILLER, Right

$158.99

$

Usually ships in 2-12 days

0

29

Simplicity 1723699SM

PIN, Lock

$1250.99

$

Usually ships in 2-12 days

0

30

Simplicity 1716803SM

PULLEY, Forward Idler

$45.99

$

Usually ships in 2-12 days

0

31

Simplicity 1722166SM

ARM, Idler Forward

$63.99

$

Usually ships in 2-12 days

0

32

Simplicity 1722168SM

SCREW, Hex Socket Shoulder 5/16" - 18 x 3/8"

$6.99

$

Usually ships in 2-12 days

0

33

Simplicity 1925690SM

CAPSCREW, Hex Head 5/16" - 18 x 3-1/2" G5

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1722144SM

V-BELT, Reverse
(Superseded to 37X139MA)

$22.99

$

In Stock, Qty 5

0

35

Simplicity 1922127SM

CAPSCREW, Hex Head 5/16" - 18 x 1-3/4" G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

36

ENGINE, 5.5HP Briggs & Stratton INTEK - Engine Model 110412, Engine Type 0023-E1

$

$

Not available

37

Simplicity 1721528SM

** BUMPER, Guard

$265.99

$

Usually ships in 2-12 days

0
