5516 RT (1693847) - Simplicity Rear-Tine Tiller, 5hp Transmission Group Parts Diagram

Rear-Tine Tiller, 5hp

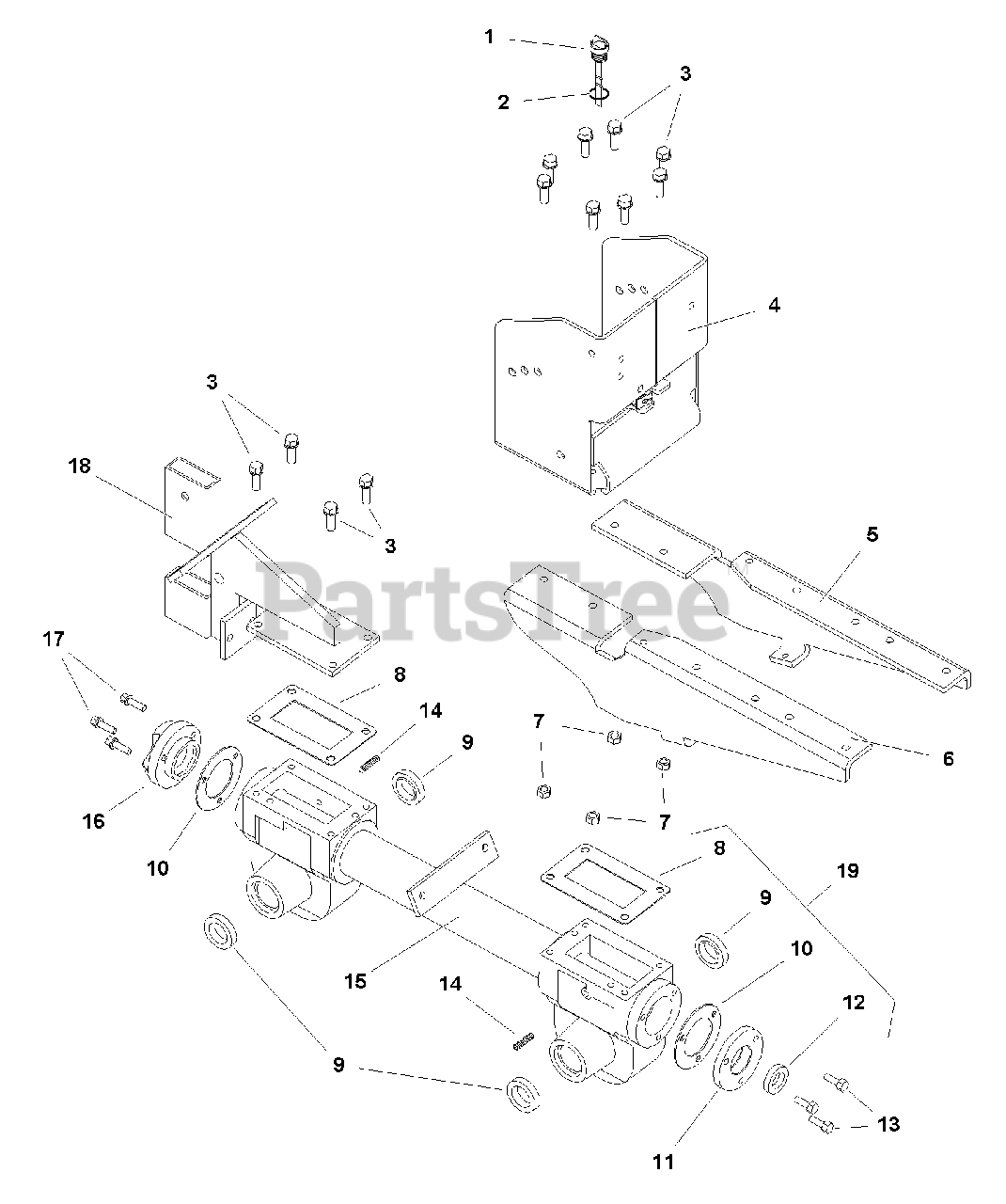

Transmission Group Parts Diagram

  • Title

1

Simplicity 1718882SM

DIPSTICK

$15.99

$

Usually ships in 2-12 days

0

2

Simplicity 1718883SM

O, RING, Dipstick

$

$

Not available

3

Simplicity 1921332SM

BOLT, Hex Flange Head 5/16" - 18 x 3/4"
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1722327SM

COVER PLATE & MOUNT

$42.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716753SM

BRACKET, Engine Mount LH

$70.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716752SM

BRACKET, Engine Mount RH

$72.99

$

Usually ships in 2-12 days

0

7

Simplicity 1935048SM

NUT, Hex Flange 5/16" - 18 Two, Way Lock GA
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1716796SM

CAP, Rear Bearing

$22.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716798SM

BOLT, Hex Flange Head 1/4" - 20 x 3/4"
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1716790SM

PLUG, Pipe Socket Head, 1/4" - 18 Oil Check

$

$

Not available

15

Simplicity 1722330SM

TRANSMISSION, Housing, Tiller Casting

$

$

Not available

15

Simplicity 1723701SM

TRANSMISSION ASSEMBLY, Complete

$1208.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716793SM

CAP, Rear Bearing

$37.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716795SM

BOLT, Hex Flange Head 1/4" - 20 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1721511SM

BRACKET, Depth Regulator RT

$67.99

$

Usually ships in 2-12 days

0

19

Simplicity 1716799SM

GASKET KIT, Oil Seal ( Includes Ref. 8, 9, 10, and 12)

$

$

Not available

8

Simplicity 1716789SM

GASKET, Housing & Transmission Cover

$16.99

$

In Stock, only 2 left!

0

9

Simplicity 1716791SM

SEAL, Housing

$53.99

$

In Stock, only 4 left!

0

10

Simplicity 1716792SM

GASKET, Bearing Cap Front/Rear

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716797SM

SEAL, Oil, Drive Shaft

$19.99

$

Usually ships in 2-12 days

0
