5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower FC150V-ES23 Crankcase Parts Diagram

21" Wide Area Walk-Behind Mower

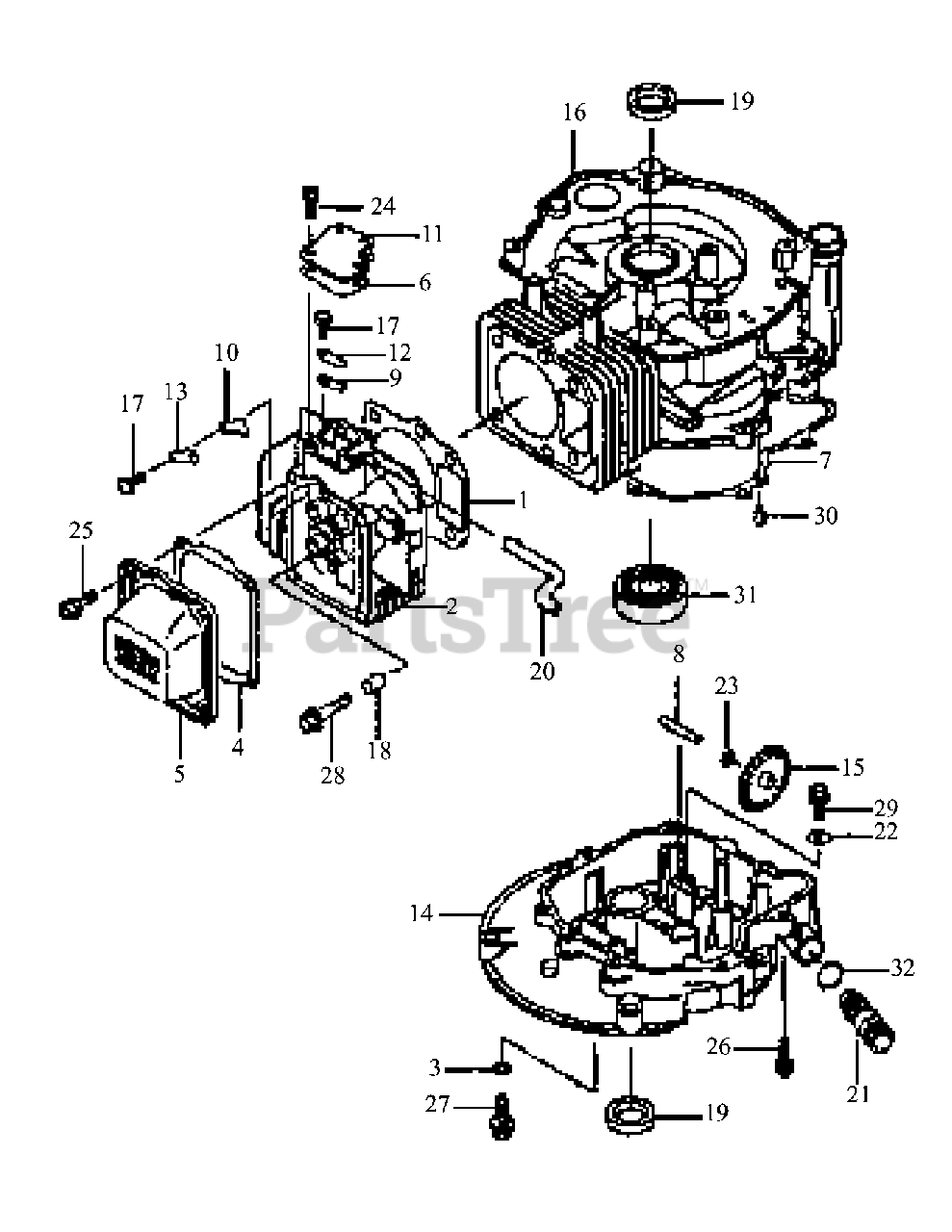

FC150V-ES23 Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-2099

Head Gasket

$

$

Not available

2

Cub Cadet KM-11008-6023

Cylinder Head complete

Note: NLA

$

$

Not available

3

Cub Cadet KM-11009-2747

Gasket

$0.99

$

In Stock, only 3 left!

0

4

Cub Cadet KM-11009-2848

Gasket, Rocket Case

$

$

Not available

5

Cub Cadet KM-11022-2071

Case, Rocker

$

$

Not available

6

Cub Cadet KM-11060-2007

Gasket, Cover

$0.99

$

In Stock, Qty 16

0

7

Cub Cadet KM-11060-2011

Gasket, Crankcase Cover

$5.99

$

In Stock, Qty 5

0

8

Cub Cadet KM-13107-2202

Shaft

$

$

Not available

9

Cub Cadet KM-13270-2049

Plate

$0.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-13270-2050

Plate

$0.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-14090-2087

Cover

$6.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-16126-2201

Valve

$0.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-16126-2202

Valve

$

$

Not available

14

Cub Cadet KM-49015-6155

Cover-Crankcase

$

$

Not available

15

Cub Cadet KM-49073-2055

Slinger-Oil

$

$

Not available

16

Cub Cadet KM-49120-2240

Crankcase, Complete

Note: NLA

$

$

Not available

17

Cub Cadet KM-92009-2166

Screw, 5 x 8

$0.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92043-1264

Pin

$0.99

$

In Stock, only 1 left!

0

19

Cub Cadet KM-92049-2199

Seal, Oil

$6.49

$

In Stock, only 1 left!

0

20

Cub Cadet KM-92059-2256

Tube

Note: NLA

$

$

Not available

21

Cub Cadet KM-92066-2180

Plug

$12.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-92200-2033

Washer, 5x16x0.8

$

$

Not available

23

Cub Cadet KM-92200-2034

Washer, 6x12x1.6

$

$

Not available

24

Cub Cadet KM-130B0510

Bolt, Flange

Note: NLA

$

$

Currently unavailable

25

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet KM-130BA0625

Bolt, Flange

$1.49

$

In Stock, Qty 20+

0

27

Cub Cadet KM-130G0812

Bolt, Flange

$

$

Not available

28

Cub Cadet KM-130G0845

Bolt, Flange
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

29

Cub Cadet KM-187B0510

Bolt

$

$

Not available

30

Cub Cadet KM-551A0612

Pin, Dowl

$0.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KM-601B6205

Bearing, Ball

$15.57

$

In Stock, only 1 left!

0

32

Cub Cadet KM-670D2015

O-Ring

$1.99

$

In Stock, Qty 5

0

Cub Cadet 01000996P

Replacement Engine

Note: (not shown)

$

$

Not available
