5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower FC150V-ES23 Recoil Starter Parts Diagram

21" Wide Area Walk-Behind Mower

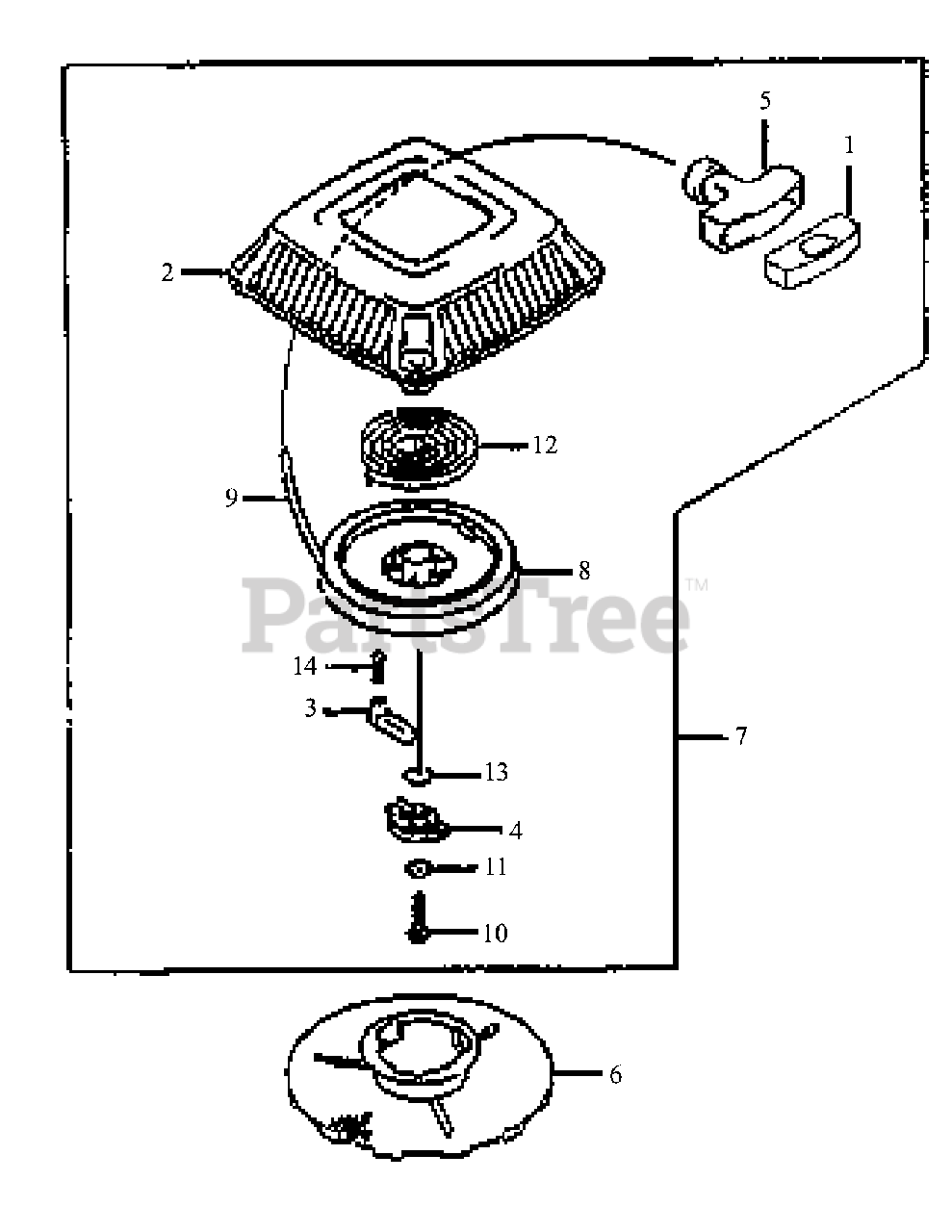

FC150V-ES23 Recoil Starter Parts Diagram

  • Title

1

Cub Cadet KM-11012-2255

Cap, Grip

$4.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13091-2136

Holder

Note: NLA

$

$

Not available

3

Cub Cadet KM-13165-2072

Pawl, Recoil Starter

$2.99

$

In Stock, Qty 11

0

4

Cub Cadet KM-39108-2059

Retainer, Spring

$3.49

$

In Stock, Qty 5

0

5

Cub Cadet KM-46075-2082

Grip, Recoil Starter

$9.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-49080-2143

Pulley, Starting

$

$

Not available

7

Cub Cadet KM-49088-2477

Starter, Recoil

$

$

Not available

8

Cub Cadet KM-59101-2079

Reel, Recoil Starter

$21.99

$

In Stock, only 3 left!

0

9

Cub Cadet KM-59106-2128

Rope, 3.8x2450

$

$

Not available

10

Cub Cadet KM-92009-2280

Screw 5x18

$

$

Not available

11

Cub Cadet KM-92022-2384

Washer 5x12.8x1.2

$0.99

$

In Stock, only 4 left!

0

12

Cub Cadet KM-92081-2265

Spring, Recoil

Note: NLA

$21.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-92144-2176

Spring

$0.99

$

In Stock, Qty 11

0

14

Cub Cadet KM-92144-2177

Spring, Return

$0.99

$

In Stock, Qty 12

0
