5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower Handle Parts Diagram

21" Wide Area Walk-Behind Mower

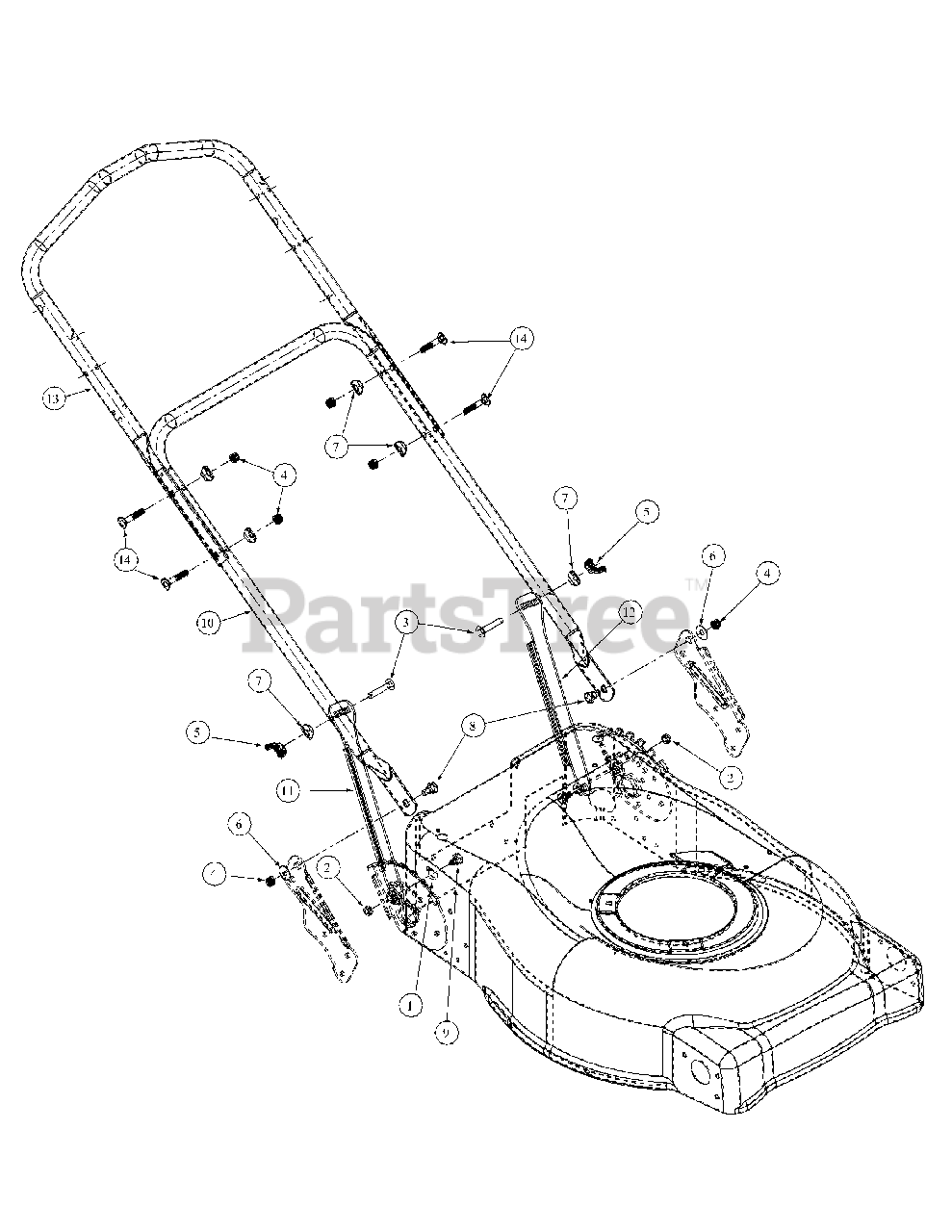

Handle Parts Diagram

  • Title

1

Cub Cadet 00012577

Thrust Washer

$4.99

$

In Stock, Qty 12

0

2

Cub Cadet 00022547

Lock Nut, 5/16-18,

$

$

Not available

3

Cub Cadet 710-0458

Carriage Bolt, 5/16-18, 1.75

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 912-0429

Hex Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01000958

Wing Nut, 5/16-18

$

$

Not available

6

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

7

Cub Cadet 936-0451

Shoulder Washer, .320 ID x .93 OD
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 938-0141

Shoulder Screw, .435 x .350, 5/16-18

$6.99

$

In Stock, Qty 8

0

9

Cub Cadet 938-0155

Shoulder Screw, .437 x 1.62 LG

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01002805

Handle, Lower, 1.0"

$

$

Not available

11

Cub Cadet 01001673

Strut, 3 Position, Right hand

$

$

Not available

12

Cub Cadet 01001675

Strut, 3 Position, Left hand

$

$

Not available

13

Cub Cadet 01003203

Upper Handle, 1.0", Self Propelled

$

$

Not available

14

Cub Cadet 710-1174

Carrige Bolt, 5/16-18 X 1.75 Curved

$6.99

$

In Stock, Qty 20+

0
