5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower Rear Axle Parts Diagram

21" Wide Area Walk-Behind Mower

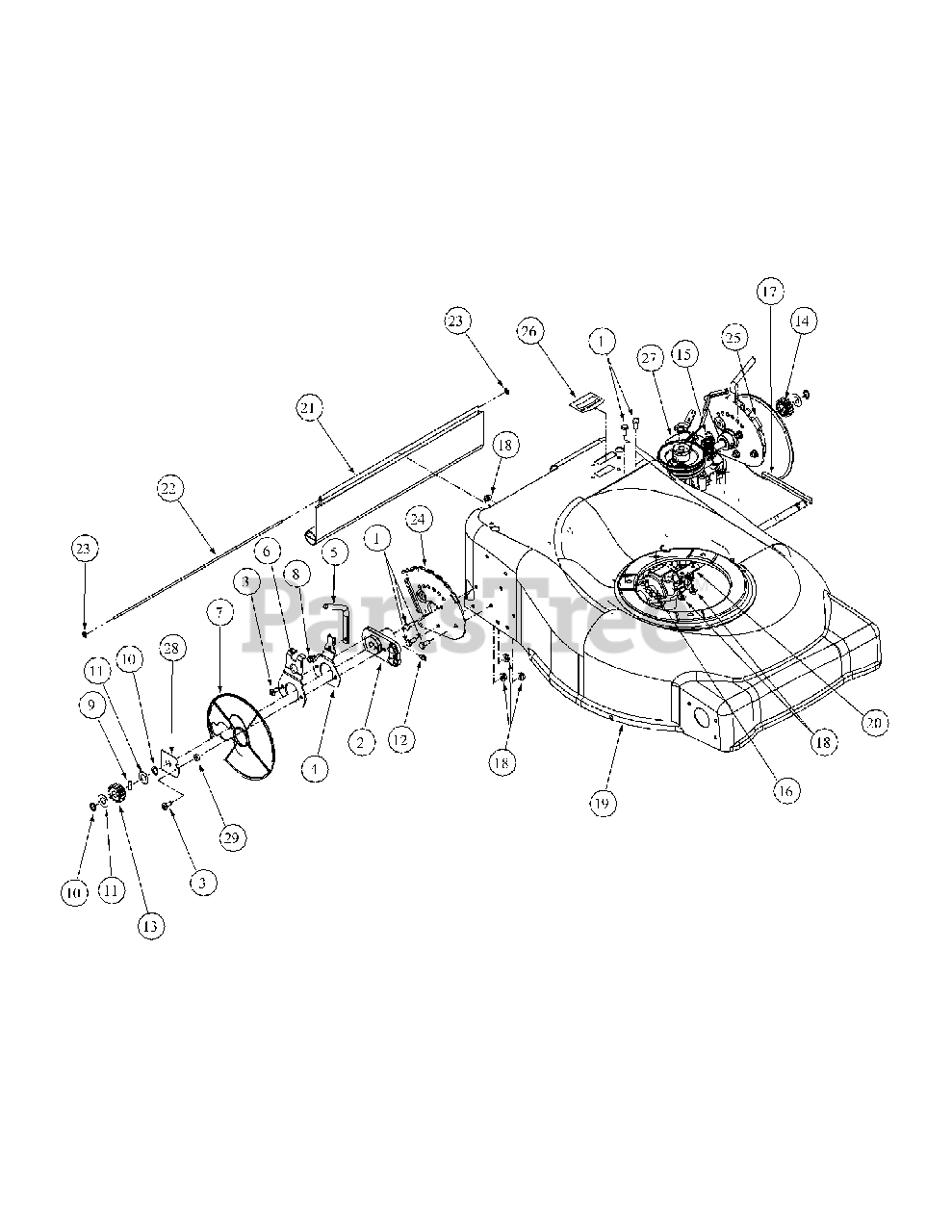

Rear Axle Parts Diagram

  • Title

1

Cub Cadet 710-0751

Hex, Cap Screw, 1/4-20, .620

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000861

Pivot, Wheel, Bracket Assembly, 2 Pos

$85.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0599

Screw, TT, 1/4-20, x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 732-0864

Height Adjuster, Spring Plate

$

$

Not available

5

Cub Cadet 01002829

Height Adjuster, Handle

Note: NLA

$

$

Not available

6

Cub Cadet 01002832

Spring Lever, Support, Bracket

$

$

Not available

7

Cub Cadet 01000920

Drive Wheel, Dust, Cover

$19.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0653

Screw, 1/4-20, x .375, Index Washer

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 01000927

Dowel Pin, 3/16 x 3/4

$

$

Not available

10

Cub Cadet 01000928

Retainer Ring, .500 Dia Heavy Duty

$

$

Not available

11

Cub Cadet 936-0369

Flat Washer, .508 ID x 1.00 OD x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 01002033

Pinion Gear, 15T, With Ratchet, R

$

$

Not available

14

Cub Cadet 01002034

Pinion Gear, 15T, With Ratchet, L

$

$

Not available

15

Cub Cadet 01002526

Extension Spring, .75 OD x 2.37

$

$

Not available

16

Cub Cadet 711-1293

Belt, Pin, Keeper

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01002700

Belt, V Type, 3/8 x 32.92 Long

$

$

Not available

18

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange, Lock

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 01005332P

21" Deck

$

$

Not available

20

Cub Cadet 01004290

Transmission, Spring Bracket, Tuff Torque

$

$

Not available

21

Cub Cadet 01004768

Trail Shield

$

$

Not available

22

Cub Cadet 01004769

Shield Rod

Note: NLA

$

$

Not available

23

Cub Cadet 01004770

Push On, 4MM

Note: NLA

$

$

Not available

24

Cub Cadet 01004791

Right Rear, Height Adjustment Bracket

Note: NLA

$

$

Not available

25

Cub Cadet 01004792

Left Rear, Height Adjustment Bracket

Note: NLA

$

$

Not available

26

Cub Cadet 01005312

Label, 21" Deck Shift

Note: NLA

$

$

Not available

27

Cub Cadet 01002035P

3-Speed Transmission

$

$

Not available

28

Cub Cadet 01005675

21" Dust Cover Support

$

$

Not available

29

Cub Cadet 01005996

Dust Cover Spacer

$

$

Not available
