5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower Transmission Assembly Parts Diagram

21" Wide Area Walk-Behind Mower

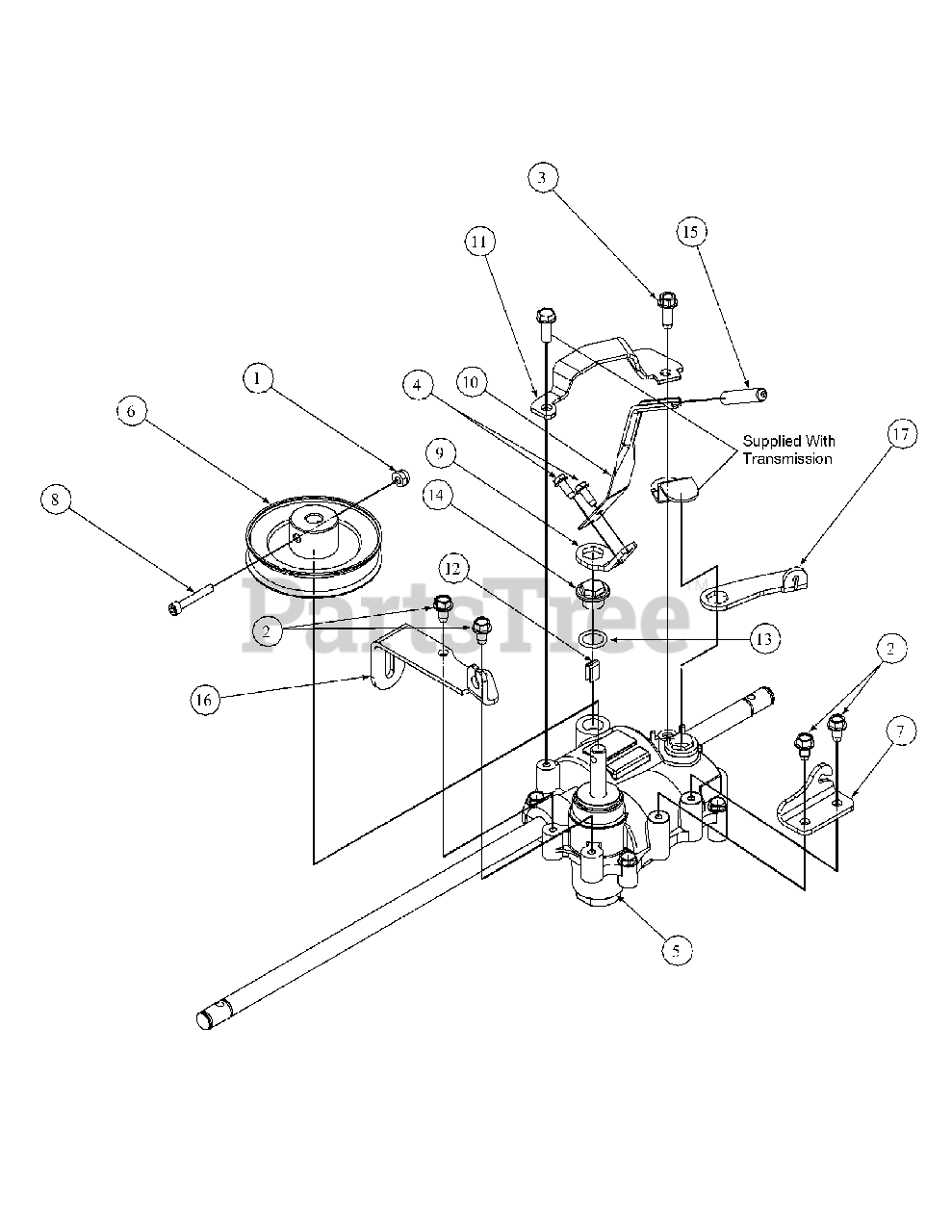

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet 712-0161

Nylon Lock Nut, #10-24

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 710-0599

Hex Index Washer Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0642

Hex Index Washer Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01001864

Hex Index Washer Screw, #10-24 x .5
(Superseded to 1767754)

$

$

Not available

5

Cub Cadet 01002035P

3-Speed Transmission

$

$

Not available

6

Cub Cadet 01002036

Transmission Pulley, 3/8V x 3.50 OD

$

$

Not available

7

Cub Cadet 01002798

Transmission Spring Bracket

$

$

Not available

8

Cub Cadet 01003133

Socket Screw, 10-24 x 1.25

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 01003958

Shift Bracket

$

$

Not available

10

Cub Cadet 01003822

Shift Lever

$

$

Not available

11

Cub Cadet 01003959

Retainer Shift Bracket

$

$

Not available

12

Cub Cadet 01003965

21" Self Propelled Shim

$

$

Not available

13

Cub Cadet 01004088

3-Speed O-ring Seal

$

$

Not available

14

Cub Cadet 01004089

3-Speed Clutch Cap

$

$

Not available

15

Cub Cadet 01004436

21" Shifter Sleeve

$

$

Not available

16

Cub Cadet 01005351

Transmission Clutch Bracket

Note: NLA

$

$

Not available

17

Cub Cadet 01005821

3-Speed Clutch Plate

$

$

Not available
