5521 BBC (961450002-01) - Husqvarna 21" Walk-Behind Mower (2005-07) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

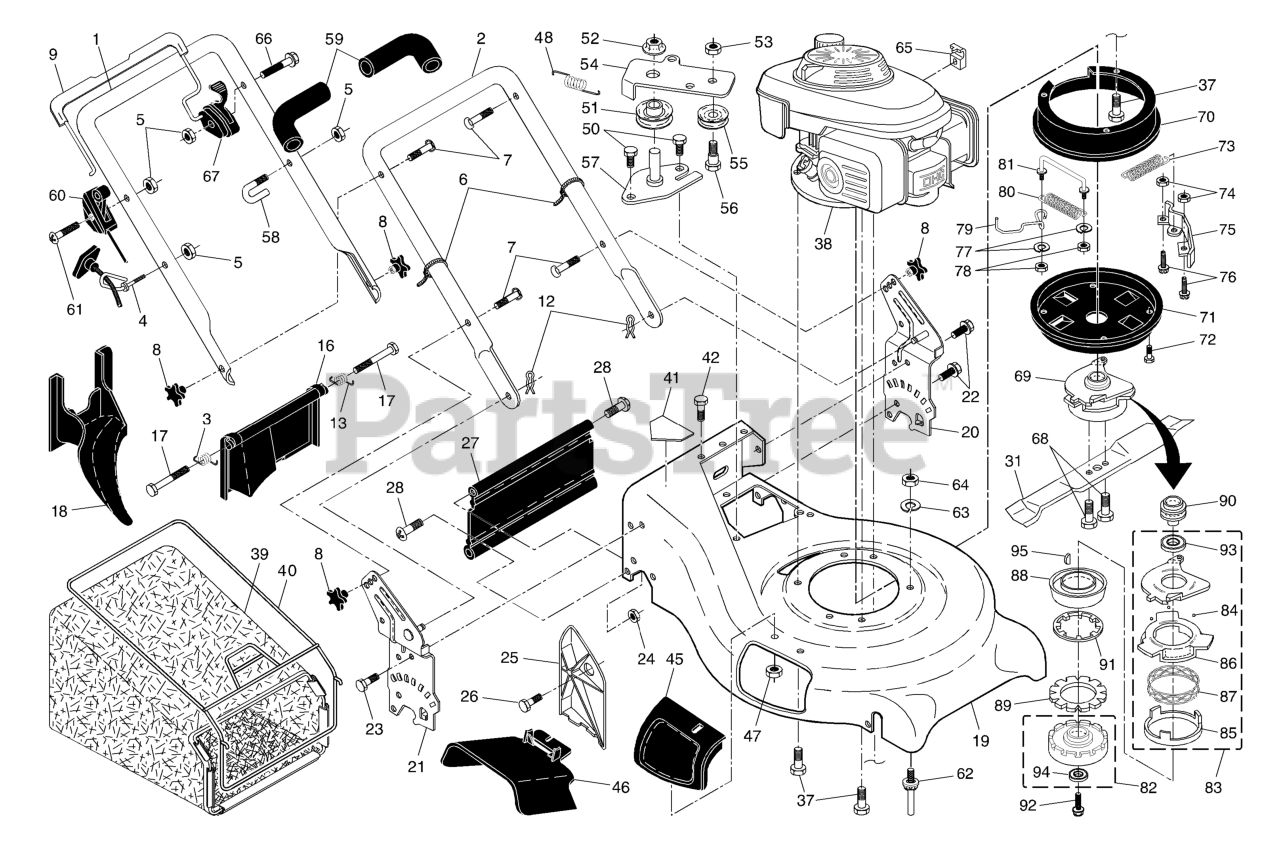

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532189740

HANDLE.UP.ASM.DSTRT/FLT

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532196005

HANDLE LOWER
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532186053

SPRING.LH.REAR.DOOR.21.RWGD

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

9

Husqvarna 532194919

CONTROL BAR, AUTO-WALK
(Superseded to 532187138)

$

$

Not available

10

Husqvarna 532188821

BOLT

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

12

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

13

Husqvarna 532186052

SPRING.RH.REAR.DOOR.21.RWGD

$

$

Not available

16

Husqvarna 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$45.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

BOLT

$

$

Not available

18

Husqvarna 532187535

PLUG, MULCHER
(Superseded to 532198170)

$43.99

$

In Stock, only 2 left!

0

19

Husqvarna 532194916

HOUSING ASM
(Superseded to 532410871)

$

$

Not available

20

Husqvarna 532194917

BRKT.ASM.HANDLE
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532194918

BRKT.ASM.HNDL
(Superseded to 532418251)

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$3.49

$

In Stock, Qty 13

0

27

Husqvarna 532188986

SKIRT, REAR
(Superseded to 532408442)

$

$

Not available

28

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

31

Husqvarna 532180459

BLADE.21".BBC

$26.99

$

In Stock, only 2 left!

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

38

Engine, Honda, Model No. GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532194716

GBAG SILVER
(Superseded to 532401683)

$159.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532188817

GRASS CATCHER FRAME
(Superseded to 532194644)

$

$

Not available

41

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

SCREW

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190576

DEFLECTOR
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532188826

DECAL.FENDER.LT2115CM

$6.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532057808

SCREW

$

$

Not available

51

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

52

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

53

Husqvarna 532155552

LOCKNUT
(Superseded to 873930500)

$3.49

$

In Stock, only 4 left!

0

54

Husqvarna 532196812

ARM.IDLER
(Superseded to 532193792)

$

$

Not available

55

Husqvarna 532166043

IDLER PULLEY

$34.99

$

In Stock, Qty 6

0

56

Husqvarna 532160829

SHOULDER BOLT

$5.99

$

In Stock, only 2 left!

0

57

Husqvarna 532196813

BRACKET IDLER
(Superseded to 532193315)

$6.99

$

In Stock, only 4 left!

0

58

Husqvarna 532182003

CLIP

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

60

Husqvarna 532190878

CONTROL.THROTTLE.HONDA.BBC

$

$

Not available

61

Husqvarna 532183365

SCREW

$

$

Not available

62

Husqvarna 532182131

STUC.GUIDE.BELT.RWGD

$22.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

64

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

65

Husqvarna 532190903

BRACKET.THROTTLE

$9.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532189937

SCREW

$

$

Not available

67

Husqvarna 532183707

BLADE BRAKE CONTROL
(Superseded to 532196541)

$62.99

$

In Stock, only 3 left!

0

68

Husqvarna 532180460

BOLT.BLADE

$

$

Not available

69

Blade Brake / Clutch

Note: (Includes Key Numbers 82-95)

$

$

Not available

70

Husqvarna 532194920

COVER.BELT
(Superseded to 532183758)

$

$

Not available

71

Husqvarna 532180191

COVER.BELT

$43.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

73

Husqvarna 532180393

SPRING.BBC

$7.99

$

In Stock, Qty 8

0

74

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

75

Husqvarna 532190929

BRAKE, CLUTCH
(Superseded to 532188525)

$

$

Not available

76

Husqvarna 874780410

BOLT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532053998

WASHER

$

$

Not available

78

Husqvarna 873510600

NUT

$

$

Not available

79

Husqvarna 532182132

GUIDE.BELT.BBC

$

$

Not available

80

Husqvarna 532180394

SPRING.LINK.BBC

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532180188

LINK.TORQUE.BBC

$

$

Not available

82

Husqvarna 532195049

HOLDER.ASM.BLADE.HONDA.

$

$

Not available

83

Husqvarna 532195072

BALL.CONTROL.PLATE.ASSY.BBC.MO

$

$

Not available

84

Husqvarna 532195053

BALL.STEEL

$

$

Not available

85

Husqvarna 532195073

PLATE.SPRING.HOOK

$

$

Not available

86

Husqvarna 532195074

PLATE.BRAKE

$

$

Not available

87

Husqvarna 532195057

SPRING BALL PLATE

$

$

Not available

88

Husqvarna 532195060

DISC.DRIVE

$

$

Not available

89

Husqvarna 532195063

DISK.DRIVEN

$

$

Not available

90

Husqvarna 532195064

PULLEY.DRIVE.HONDA.

$

$

Not available

91

Husqvarna 532195065

SPRING.CLUTCH.HONDA.

$

$

Not available

92

Husqvarna 532195067

BOLT.FLANGE

$

$

Not available

93

Husqvarna 532195068

BEARING.RADIAL BALL#6006

$

$

Not available

94

Husqvarna 532195069

BEARING RAD. BALL#6204

$

$

Not available

95

Husqvarna 532195070

KEY.WOODRUFF.16X15.HONDA

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532196808

Owner's Manual, English / French

$

$

Not available
