5521 CH (954223234) - Husqvarna 21" Walk-Behind Mower (2003-06) REPAIR PARTS Parts Diagram

21" Walk-Behind Mower

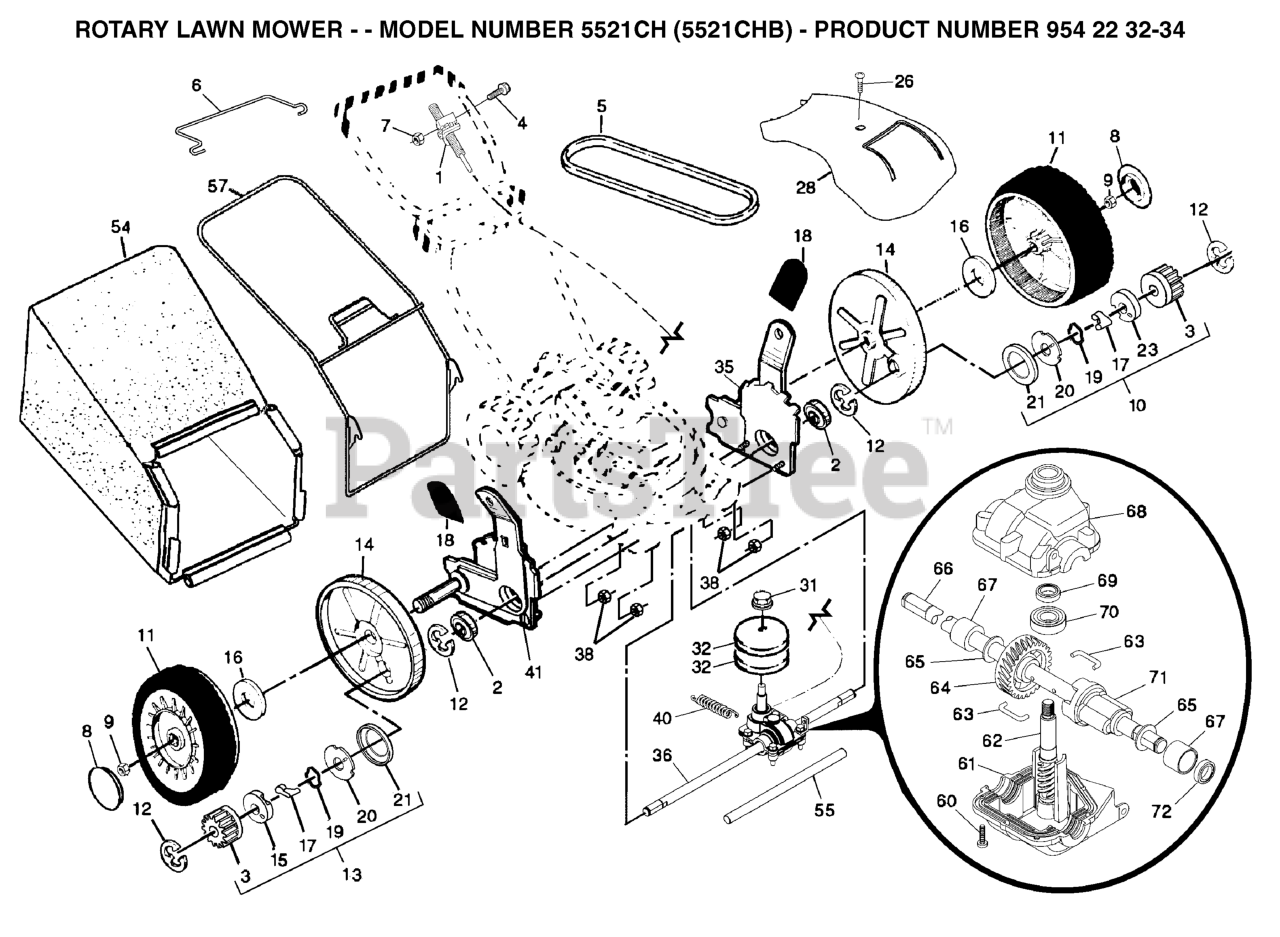

REPAIR PARTS Parts Diagram

  • Title

69

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532180915

KIT.ADJUSTER.ASM.EZ.LH

$

$

Not available

26

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

5

Husqvarna 532169778

V-BELT

$24.99

$

In Stock, only 1 left!

0

41

Husqvarna 532180914

KIT.ADJUSTER.ASM.EZ(169770).RT

$54.99

$

In Stock, only 1 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 532183993

FRAME.GBAG.21.HT/BAG

$

$

Not available

36

Husqvarna 532187212

TRANSMISSION.21RD.FGDE

$

$

Not available

32

Husqvarna 532189406

PULLEY
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

3

Husqvarna 532175103

GEAR, PINION

$

$

Not available

11

Husqvarna 532180767

WHEEL.8X2.PR.LP.RAD.BLK
(Superseded to 532180775)

$34.99

$

In Stock, Qty 18

0

20

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532188292

PINION/PAWL ASSY LH
(Superseded to 532193366)

$53.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

54

Husqvarna 532185581

GRASS BAG
(Superseded to 532410677)

$80.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532187529

SHAFT OUTPUT (12198)

$78.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$24.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532187525

LOWER CASE

$24.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532169911

BEARING, BALL

$

$

Not available

71

Husqvarna 532187528

SPACER

$

$

Not available

17

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, Qty 10

0

40

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$8.99

$

In Stock, Qty 20+

0

68

Husqvarna 532187526

UPPER CASE

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 6

0

72

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

70

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183505

WIRE, FORMED (15966)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532185574

SELECTOR KNOB

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 532188293

PINION/PAWL ASSY RH
(Superseded to 532193367)

$47.99

$

In Stock, only 1 left!

0

9

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

67

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

8

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

65

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532185685

VARI-SPEED DRIVE CONTROL ASSEM

$53.99

$

In Stock, only 1 left!

0

6

Husqvarna 532186010

BAR CONTROL DRIVE
(Superseded to 532194185)

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532188291

SPRING, TORSION

$5.99

$

In Stock, Qty 13

0

62

Husqvarna 532187527

SHAFT INPUT (13056)

$

$

Not available

21

Husqvarna 532175101

SEAL, FRICTION
(Superseded to 532184172)

$7.49

$

In Stock, only 1 left!

0

64

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

In Stock, only 1 left!

0

4

Husqvarna 532185681

SCREW

$

$

Not available

14

Husqvarna 532180504

DUST COVER, WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0
