5521 CHV (954223883-B) - Husqvarna 21" Walk-Behind Mower (2004-07) Drive Assembly Parts Diagram

21" Walk-Behind Mower

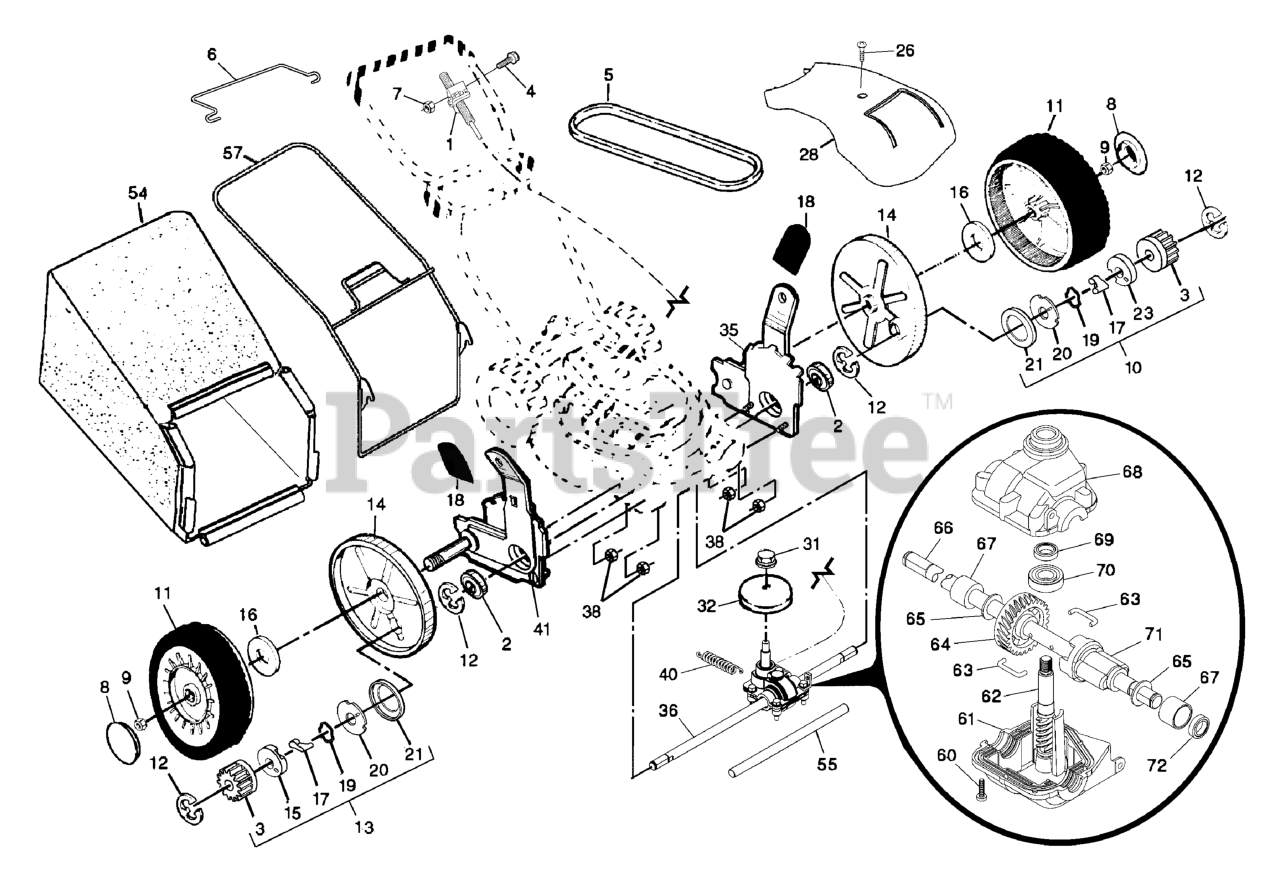

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532189182

CONTROL.DRIVE.VARI.SPEED.FWGD

$39.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532169911

BEARING, BALL

$

$

Not available

3

Husqvarna 532175103

GEAR, PINION

$

$

Not available

4

Husqvarna 532185681

SCREW

$

$

Not available

5

Husqvarna 532169778

V-BELT

$20.99

$

In Stock, only 3 left!

0

6

Husqvarna 532188976

BAR, CONTROL, DRIVE
(Superseded to 532194185)

$

$

Not available

7

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

10

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$

$

Not available

11

Husqvarna 532180767

WHEEL.8X2.PR.LP.RAD.BLK
(Superseded to 532180775)

$37.99

$

In Stock, only 3 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$

$

Not available

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532175102

RETAINER, DRIVE, RH

$

$

Not available

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 9

0

17

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.99

$

In Stock, Qty 16

0

18

Husqvarna 532185574

SELECTOR KNOB

$7.99

$

In Stock, Qty 8

0

19

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, Qty 11

0

20

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$

$

Not available

21

Husqvarna 532184172

SEAL.PINION

$

$

Not available

23

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

26

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$26.99

$

In Stock, only 1 left!

0

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

32

Husqvarna 532189406

PULLEY
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532180915

KIT.ADJUSTER.ASM.EZ.LH

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 532187212

TRANSMISSION.21RD.FGDE

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$9.49

$

In Stock, Qty 20+

0

41

Husqvarna 532180914

KIT.ADJUSTER.ASM.EZ(169770).RT

Note: (Includes Knob and Bearing)

$56.99

$

In Stock, only 1 left!

0

54

Husqvarna 532189765

GRASSBAG ASM.
(Superseded to 532410667)

$74.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

57

Husqvarna 532188815

BAG FRAME
(Superseded to 532194643)

$

$

Not available

60

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532187525

LOWER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$

$

Not available

62

Husqvarna 532187527

SHAFT INPUT (13056)

$

$

Not available

63

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

In Stock, only 1 left!

0

64

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$

$

Not available

65

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532187529

SHAFT OUTPUT (12198)

$113.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532183511

BUSHING

$

$

Not available

68

Husqvarna 532187526

UPPER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$26.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

70

Husqvarna 532183506

BEARING

$

$

Not available

71

Husqvarna 532187528

SPACER

$

$

Not available

72

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0
