5521 CHV (961430001-01) - Husqvarna 21" Walk-Behind Mower (2005-01) Drive Assembly Parts Diagram

21" Walk-Behind Mower

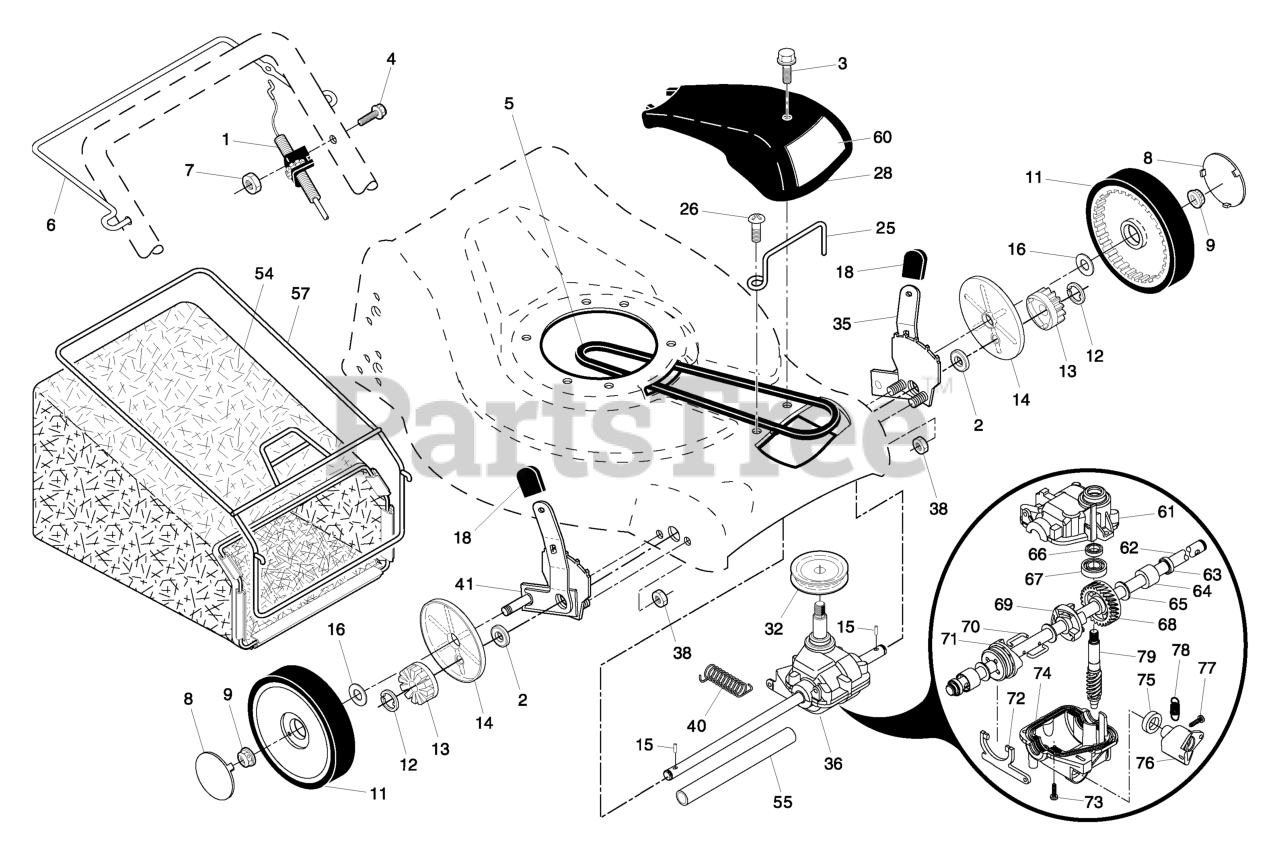

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532193480

CONTROL.DRIVE.VARI.SPEED.FWGD

$45.99

$

In Stock, only 2 left!

0

2

Husqvarna 532169911

BEARING, BALL

$

$

Not available

3

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 4 left!

0

4

Husqvarna 532185681

SCREW

$

$

Not available

5

Husqvarna 532194149

BELT.DRIVE.FG

$22.99

$

In Stock, only 4 left!

0

6

Husqvarna 532196188

BAIL
(Superseded to 532194185)

$

$

Not available

7

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

11

Husqvarna 532180767

WHEEL.8X2.PR.LP.RAD.BLK
(Superseded to 532180775)

$37.99

$

In Stock, only 3 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532175103

GEAR, PINION

$

$

Not available

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 9

0

18

Husqvarna 532185574

SELECTOR KNOB

$7.99

$

In Stock, Qty 8

0

25

Husqvarna 532196689

KEEPER.BELT
(Superseded to 532199089)

$

$

Not available

26

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$26.99

$

In Stock, only 1 left!

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532195110

RP KIT.ADJUSTER.ASM.EZ
(Superseded to 581497903)

Note: (Includes Knob and Bearing)

$22.99

$

In Stock, Qty 20+

0

36

Husqvarna 532188296

TRANSMISSION.21RD

$113.99

$

In Stock, only 1 left!

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532192849

SPRING RETURN
(Superseded to 532406558)

$9.49

$

In Stock, Qty 20+

0

41

Husqvarna 532195107

KIT.ADJUSTER.AS.EZ RT
(Superseded to 581497904)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532194724

GBAG.3323247.SILV
(Superseded to 580953406)

$62.99

$

In Stock, only 3 left!

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

57

Husqvarna 532188815

BAG FRAME
(Superseded to 532194643)

$

$

Not available

60

Husqvarna 532189066

Decal, Drive Cover

$

$

Currently unavailable

61

Husqvarna 532196886

GEARCASE.HOUSING

$14.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532196885

SHAFT.OUTPUT

$

$

Not available

63

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0

64

Husqvarna 532183511

BUSHING

$

$

Not available

65

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

67

Husqvarna 532183506

BEARING

$

$

Not available

68

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$

$

Not available

69

Husqvarna 532196884

CLUTCH

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

In Stock, only 1 left!

0

71

Husqvarna 532196883

CLUTCH

$

$

Not available

72

Husqvarna 532196882

FORK

$

$

Not available

73

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532196881

GEARCASE.HOUSING.LOWER

$14.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196880

SEAL

$5.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532196879

LEVER

$6.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532196878

SCREW.LEVER.

$

$

Not available

78

Husqvarna 532196877

SPRING.

$

$

Not available

79

Husqvarna 532183502

SHAFT INPUT (13041)

$31.99

$

Usually ships in 3-10 days

0
