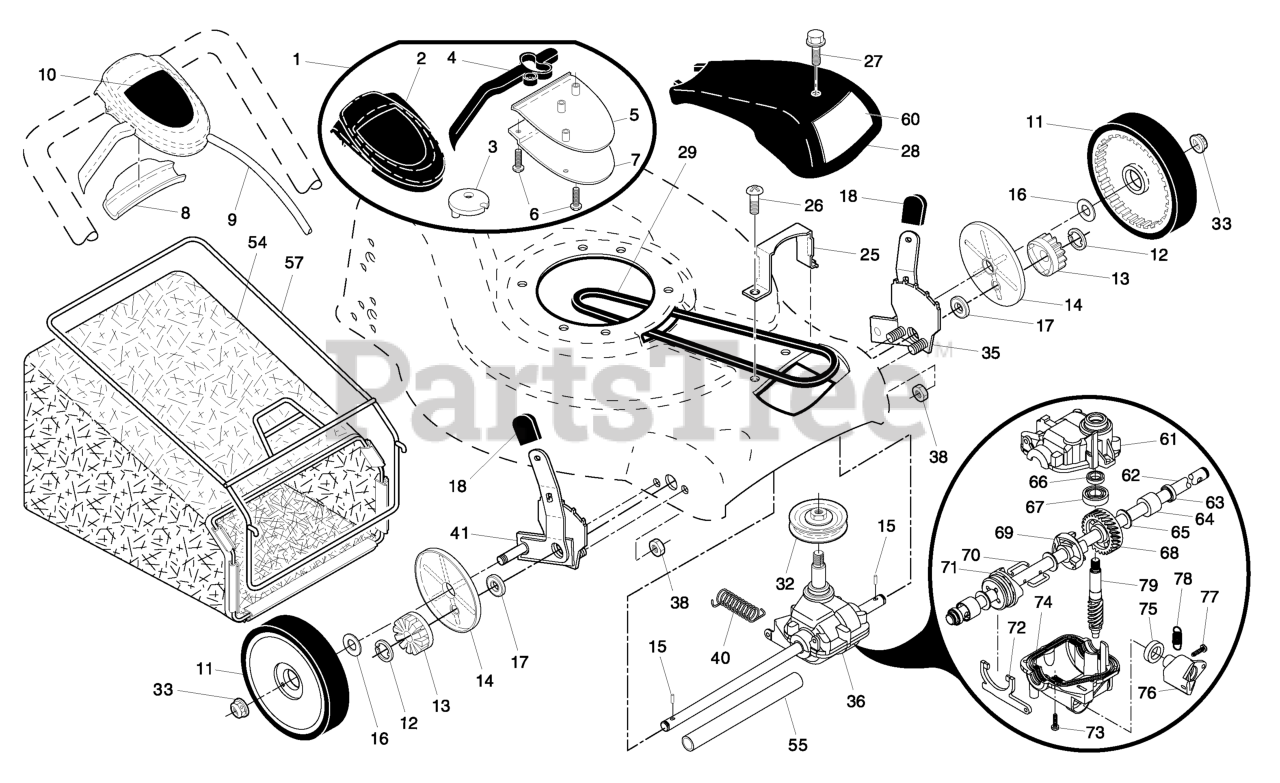

5521 CHV (961430001-05) - Husqvarna 21" Walk-Behind Mower (2006-12) Drive Assembly Parts Diagram

21" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532196270

CONTROL.DR.EZ.FWGD.SHORT.GY/BL

$

$

Not available

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$

$

Not available

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$

$

Not available

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$

$

Not available

9

Husqvarna 532196270

CONTROL.DR.EZ.FWGD.SHORT.GY/BL

$

$

Not available

10

Husqvarna 532189378

DECAL, DRIVE

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 11

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 18

0

18

Husqvarna 532185574

SELECTOR KNOB

$7.99

$

In Stock, Qty 8

0

25

Husqvarna 532199089

KEEPER.BELT.21.EZ.FWGD

$

$

Not available

26

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532196853

BELT.DRIVE.FGD.

$20.99

$

In Stock, Qty 20+

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

35

Husqvarna 532408802

KIT WHEEL ADJUSTER LH
(Superseded to 532438452)

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 532188296

TRANSMISSION.21RD

$113.99

$

In Stock, only 1 left!

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532192849

SPRING RETURN

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532408803

KIT WHEEL ADJUSTER RH
(Superseded to 532438454)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532401190

GBAG.34710247.SILVER.H
(Superseded to 580953406)

$62.99

$

In Stock, only 4 left!

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

57

Husqvarna 532401802

FRAME, GRASSBAG
(Superseded to 532411950)

$

$

Not available

60

Husqvarna 532193557

DECAL DRIVE COVER

$

$

Not available

61

Husqvarna 532196886

GEARCASE.HOUSING

$14.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532196885

SHAFT.OUTPUT

$

$

Not available

63

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0

64

Husqvarna 532183511

BUSHING

$

$

Not available

65

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

67

Husqvarna 532183506

BEARING

$

$

Not available

68

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$

$

Not available

69

Husqvarna 532196884

CLUTCH

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

In Stock, only 1 left!

0

71

Husqvarna 532196883

CLUTCH

$

$

Not available

72

Husqvarna 532196882

FORK

$

$

Not available

73

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532196881

GEARCASE.HOUSING.LOWER

$14.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196880

SEAL

$5.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532196879

LEVER

$6.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532196878

SCREW.LEVER.

$

$

Not available

78

Husqvarna 532196877

SPRING.

$

$

Not available

79

Husqvarna 532183502

SHAFT INPUT (13041)

$31.99

$

Usually ships in 3-10 days

0
