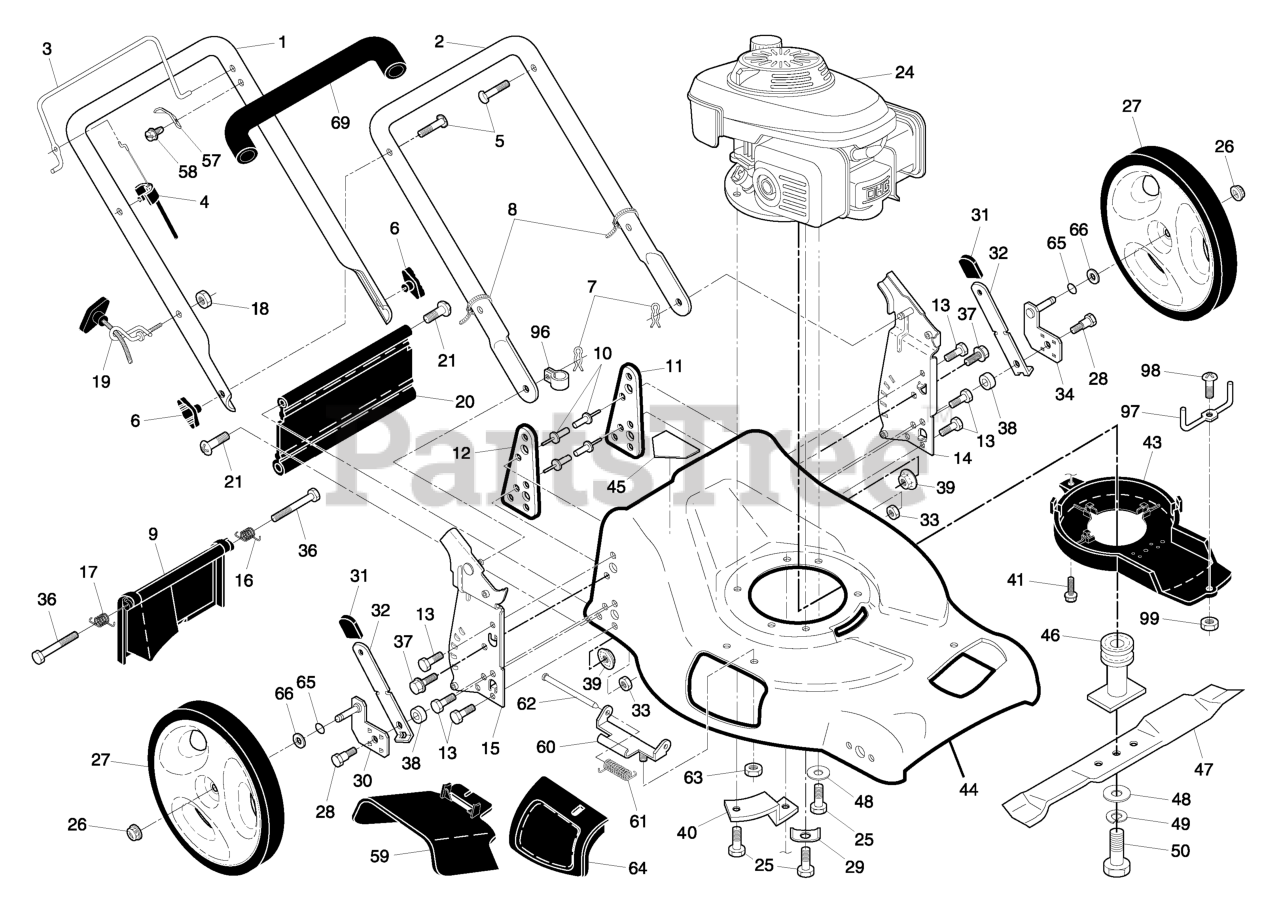

5521 CHV (961430001-05) - Husqvarna 21" Walk-Behind Mower (2006-12) Handle And Deck Assembly Parts Diagram

21" Walk-Behind Mower

Handle And Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532196403

RP HANDLE.ASM.UPPER.W/GRI
(Superseded to 532427658)

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532153418

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

3

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available

4

Husqvarna 532183567

CABLE.ENGINE BRAKE.MZR

$20.99

$

In Stock, Qty 20+

0

5

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

6

Husqvarna 532191856

HNDL.KNOB.GRAY
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

7

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$

$

Not available

12

Husqvarna 532410542

BRACKET.SUPRT.RH.21.FWGD

$

$

Not available

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, only 4 left!

0

14

Husqvarna 532196037

BRKT.ASM.HNDL.21FGD.EZ
(Superseded to 532434513)

$

$

Not available

15

Husqvarna 532196036

BRKT.ASM.HNDL.21FGD
(Superseded to 532434512)

$

$

Not available

16

Husqvarna 532405417

SPRING.REAR.DOOR.EZ.21.LT

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532405418

SPRING.REAR.DOOR.EZ.21.RT

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

20

Husqvarna 532189005

REAR SKIRT
(Superseded to 532413159)

$20.99

$

In Stock, only 3 left!

0

21

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

24

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda Engines at 1-800-426-7701)

$

$

Not available

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

26

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$31.99

$

In Stock, Qty 20+

0

28

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

29

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

30

Husqvarna 532402571

ARM.ASM.AXLE.H/W,RR.BZ

$

$

Not available

31

Husqvarna 532185574

SELECTOR KNOB

$7.99

$

In Stock, Qty 8

0

32

Husqvarna 532190157

SPRING.SELECTOR.21.FWG.ZINC

$

$

Not available

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

34

Husqvarna 532402572

ARM.ASM.AXLE.H/W.LR.BZ

$

$

Not available

36

Husqvarna 532184193

BOLT

$

$

Not available

37

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 819112206

WASHER.FLAT.34X1.38X22

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$

$

Not available

41

Husqvarna 532192325

SCREW.HEX.WSH

$5.99

$

In Stock, only 2 left!

0

43

Husqvarna 532198910

DEBRIS SHIELD
(Superseded to 532443950)

$

$

Not available

44

Husqvarna 532408989

HOUSING.21.FWD.ORANGE.WALK

Note: (Includes Key Numbers 10, 11, 12 and 45)

$

$

Not available

45

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532194037

RP ADAP.BLDE/PULL
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532189028

BLADE.21.PUSH/RWGD/FWG

$22.99

$

In Stock, Qty 10

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 1 left!

0

59

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD
(Superseded to 532175071)

$22.99

$

In Stock, Qty 8

0

60

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

61

Husqvarna 532193000

SPRING.TORSION

$7.99

$

In Stock, Qty 20+

0

62

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 13

0

63

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$

$

Not available

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 17

0

69

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

97

Husqvarna 532197162

KEEPER.BELT.FGD

$

$

Not available

98

Husqvarna 532182227

SCREW.#8.MACH

$

$

Not available

99

Husqvarna 532182228

NUT.HEX.#8

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: (not shown)

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532410705

OWNER'S MANUAL

$

$

Not available
