5521 CHV (961430027-01) - Husqvarna 21" Walk-Behind Mower (2007-03) DRIVE Parts Diagram

21" Walk-Behind Mower

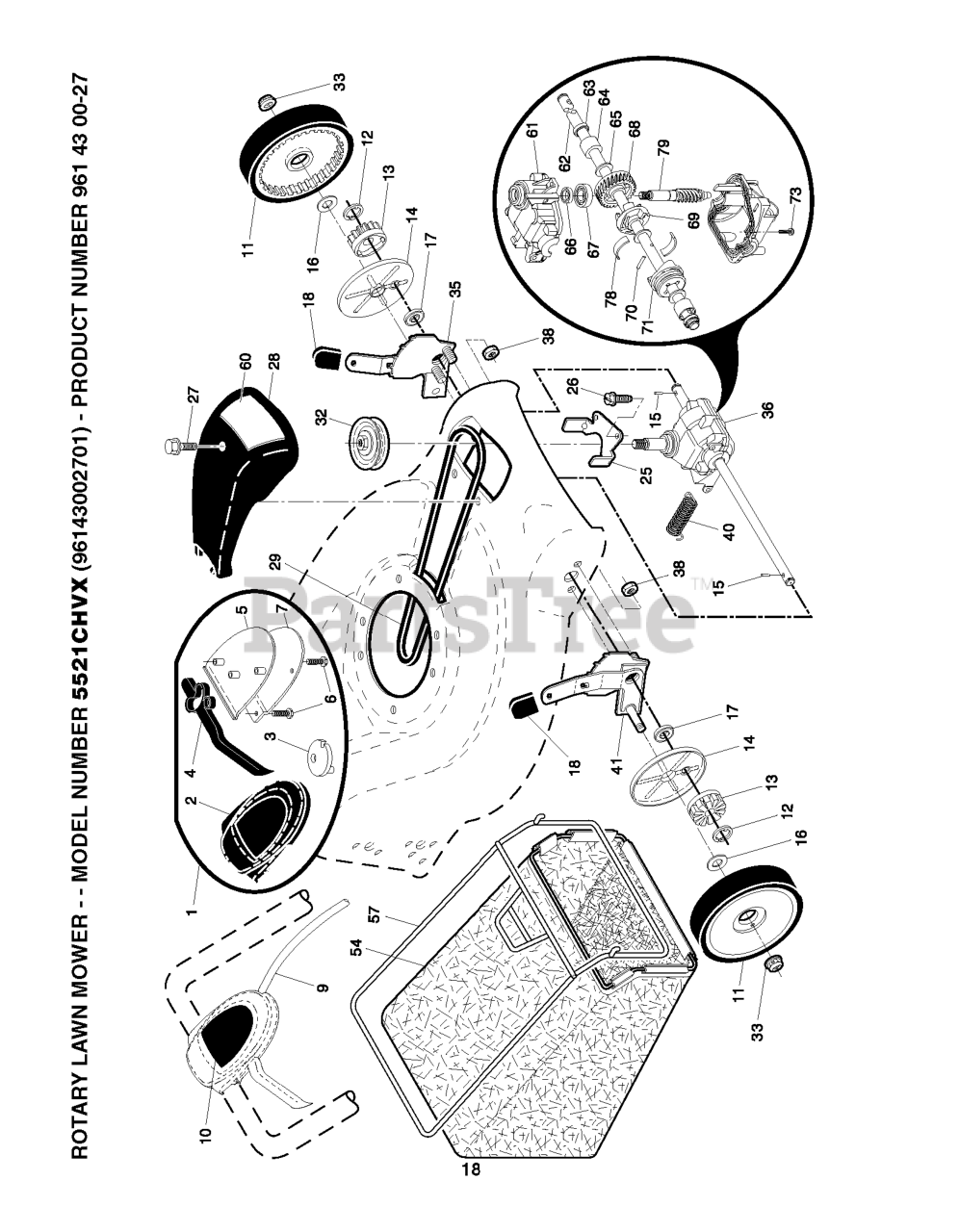

DRIVE Parts Diagram

  • Title

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

25

Husqvarna 532411663

BELT KEEPER
(Superseded to 532431711)

$

$

Not available

71

Husqvarna 532410730

MOVEABLE DOG CLUTCH

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532410734

CASE.BOTTOM.

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532193557

DECAL DRIVE COVER

$

$

Not available

73

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532401190

GBAG.34710247.SILVER.H
(Superseded to 580953406)

$47.99

$

In Stock, only 2 left!

0

57

Husqvarna 532401802

FRAME, GRASSBAG
(Superseded to 532411950)

$

$

Not available

10

Husqvarna 532189378

DECAL, DRIVE

$36.99

$

In Stock, only 1 left!

0

61

Husqvarna 532410726

CASE.UPPER.00254(SERVICE)

$15.99

$

In Stock, only 1 left!

0

79

Husqvarna 532410727

SHAFT WORM

$24.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 20+

0

35

Husqvarna 532409108

KIT, WHEEL ADJUSTER, LH
(Superseded to 581497908)

Note: INCLUDES KNOB AND BEARING

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

63

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

64

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

62

Husqvarna 532410949

SHAFT OUTPUT (12289)

$48.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532194149

BELT.DRIVE.FG

$24.99

$

In Stock, only 2 left!

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$120.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

70

Husqvarna 532410733

PIN.3.50.33733
(Superseded to 532412746)

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532404831

BEARING ASM
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532185574

SELECTOR KNOB

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

3

Husqvarna 532406282

PULLEY
(Superseded to 532406262)

$

$

Not available

68

Husqvarna 532410729

GEAR 28 TEETH 36208

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532410732

FIXED DOG CLUTCH

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 532409109

KIT, WHELL ADJUSTER, RH
(Superseded to 581497907)

Note: INCLUDES KNOB AND BEARING

$17.99

$

In Stock, Qty 20+

0

1

Husqvarna 532407316

DRIVE CONTROL ASSEMBLY (INCLUD
(Superseded to 532425580)

$93.99

$

In Stock, only 1 left!

0

78

Husqvarna 532410731

SPRING LEAF

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$53.99

$

In Stock, Qty 15

0
