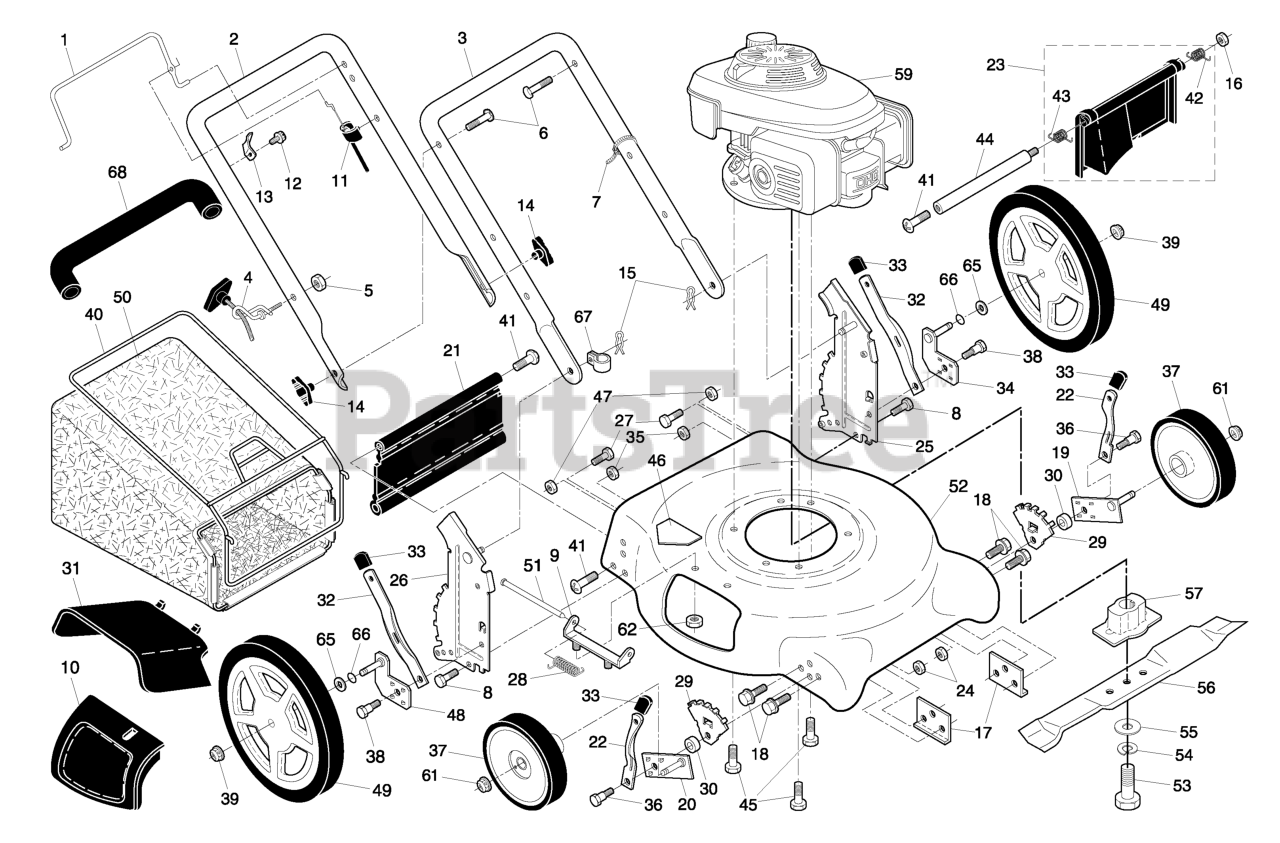

5521 CM (961330003-01) - Husqvarna 21" Walk-Behind Mower (2006-08) Handle And Deck Assembly Parts Diagram

21" Walk-Behind Mower

Handle And Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532402949

Control Bar

$11.99

$

In Stock, only 3 left!

0

2

Husqvarna 532197808

Upper Handle

Note: (Includes Foam Grip)

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174110

Lower Handle
(Superseded to 532174291)

$

$

Not available

4

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

5

Husqvarna 532132004

Locknut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532191574

Handle Bolt

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874780512

Hex Bolt 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

Hinge Bracket Assembly

$

$

Not available

10

Husqvarna 532185589

Mulcher Door
(Superseded to 581825801)

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

Engine Zone Control Cable

$12.99

$

In Stock, Qty 12

0

12

Husqvarna 532750634

Hex Washer Head Screw #10-24 x 1/2

$6.49

$

In Stock, Qty 6

0

13

Husqvarna 532125203

Up-Stop Bracket
(Superseded to 532430034)

$6.49

$

In Stock, Qty 8

0

14

Husqvarna 532185588

Handle Knob

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532191730

Nut, Hex, Flangelock 1/4-20

$7.49

$

In Stock, Qty 6

0

17

Husqvarna 532174112

Support Bracket
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

Screw

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 532189277

Axle Arm Assembly, Front, LH
(Superseded to 532186577)

$

$

Not available

20

Husqvarna 532189278

Axle Arm Assembly, Front, RH
(Superseded to 532186578)

$

$

Not available

21

Husqvarna 532189008

Rear Skirt
(Superseded to 532413160)

$12.99

$

In Stock, Qty 7

0

22

Husqvarna 532168599

Selector Spring, Front
(Superseded to 532168360)

$

$

Not available

23

Husqvarna 532186612

Kit, Rear Door

Note: (Includes Springs)

$

$

Not available

24

Husqvarna 873930500

Locknut, Hex 5/16-18

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532402945

Handle Bracket Assembly, LH
(Superseded to 580915605)

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532402946

Handle Bracket Assembly, RH
(Superseded to 580915705)

$

$

Not available

27

Husqvarna 817600406

Screw 1/4-20 x 3/8

$6.49

$

In Stock, Qty 5

0

28

Husqvarna 532152124

Spring, Torsion

$7.49

$

In Stock, Qty 11

0

29

Husqvarna 532165704

Wheel Adjusting Bracket, Front
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532183901

Spacer

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532185595

Discharge Deflector
(Superseded to 589482401)

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532402947

Selector Spring, Rear

$

$

Not available

33

Husqvarna 532185574

Selector Knob

$4.99

$

In Stock, Qty 8

0

34

Husqvarna 532183661

Axle Arm Assembly, Rear, LH
(Superseded to 532180409)

$

$

Not available

35

Husqvarna 532166785

Locknut, Hex 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

36

Husqvarna 532160828

Shoulder Bolt 5/16-18

$

$

Not available

37

Husqvarna 532400542

Wheel & Tire Assembly, Front 8 x 1-3/4

$18.99

$

In Stock, Qty 6

0

38

Husqvarna 532164362

Shoulder Bolt

$

$

Not available

39

Husqvarna 532145212

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532194642

Frame, Grassbag

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 532165766

Spring, Rear Door, LH

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532165767

Spring, Rear Door, RH

$

$

Not available

44

Husqvarna 532185819

Rod, Rear Door

$9.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, Qty 9

0

48

Husqvarna 532183662

Axle Arm Assembly, Rear, RH

$

$

Not available

49

Husqvarna 532402948

Wheel & Tire Assembly, Rear 12 x 1-3/4
(Superseded to 581010309)

$

$

Not available

50

Husqvarna 532194715

Grassbag
(Superseded to 581002102)

$93.99

$

In Stock, Qty 20+

0

51

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 12

0

52

Husqvarna 532163662

Kit, Lawn Mower Housing Assembly
(Superseded to 532443257)

Note: (Includes Key Numbers 17, 18 and 46)

$218.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lockwasher
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532189028

21 Blade

$14.99

$

In Stock, Qty 18

0

57

Husqvarna 532193707

Blade Adapter
(Superseded to 532420097)

$10.99

$

In Stock, Qty 20+

0

59

Engine,Honda

Note: Model Number GCV160 (Order parts from engine manufacturer)

$

$

Not available

61

Husqvarna 532083923

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532088348

Washer, Flat

$7.49

$

In Stock, only 4 left!

0

66

Husqvarna 532197480

O-Ring

$7.49

$

In Stock, only 3 left!

0

67

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 9

0

68

Husqvarna 532164265

Grip, Foam
(Superseded to 585161003)

$

$

Not available

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532403390

Owner's Manual, English / French

$

$

Not available
