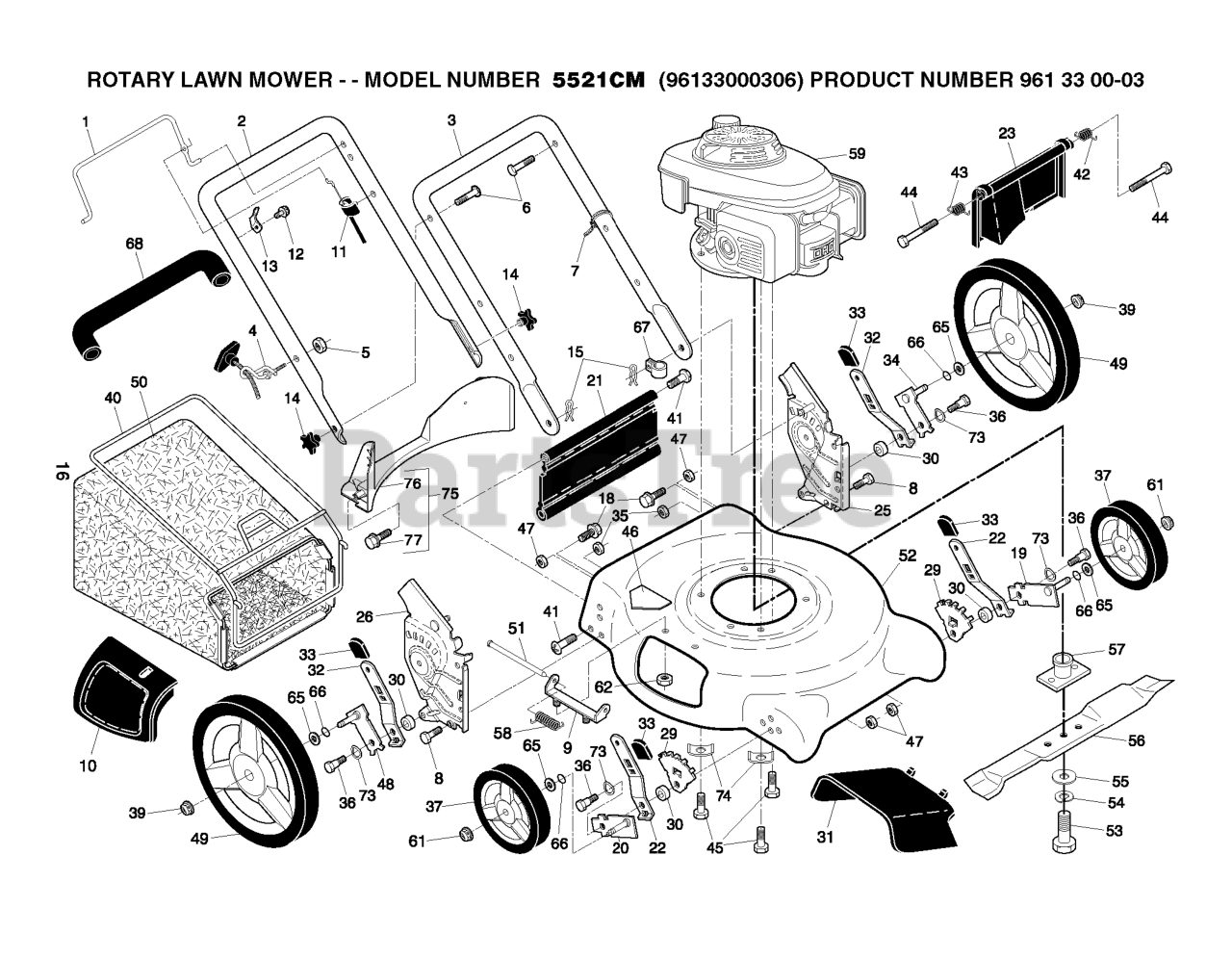

5521 CM - Husqvarna 21" Walk-Behind Mower (2008-02) PRODUCT COMPLETE Parts Diagram

21" Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

59

NEEDS DESCRIPTION

Note: ORDER PARTS FROM ENGINE MANUFACTURER

$

$

Not available

35

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532402949

BAIL.MZR.STD.ORANGE

$11.99

$

In Stock, only 3 left!

0

21

Husqvarna 532418655

RP_KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 8

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$

$

Not available

47

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

3

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

26

Husqvarna 532413925

RP BRKT.ASM.HAND.HW.21RT.ORNG
(Superseded to 532446562)

$24.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 532185589

RP DOOR.MULCH.21".REAR.PUSH.GR
(Superseded to 581825801)

$12.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532413924

RP BRKT.ASM.HAND.HW.21.LT.ORNG
(Superseded to 580915605)

$26.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$25.99

$

In Stock, Qty 20+

0

41

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 1 left!

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

58

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, Qty 11

0

57

Husqvarna 532193707

ADAPTER.BLADE
(Superseded to 532420097)

$10.99

$

In Stock, Qty 20+

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 10

0

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$12.99

$

In Stock, only 2 left!

0

37

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, Qty 20+

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

75

Husqvarna 532413693

KIT.BAFFLE.REAR.PLASTIC.21.RD

Note: INCLUDES SCREWS

$30.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$15.99

$

In Stock, Qty 20+

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

2

Husqvarna 532197808

UPPERHANDLE(INCLUDES FOAMGRIP)

Note: INCLUDES FOAM GRIP

$34.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

$

$

Not available

46

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532401191

GBAG.24710247.SILVER.H

$72.99

$

In Stock, Qty 12

0

23

Husqvarna 532410603

REAR DOOR ASSY
(Superseded to 581425601)

$13.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482401)

$7.49

$

In Stock, only 4 left!

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532185574

SELECTOR KNOB

$4.99

$

In Stock, Qty 8

0

- -

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

$

$

Not available

5

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 12

0

11

Husqvarna 532176556

ENGINE ZONE CONTROL CABLE

$12.99

$

In Stock, Qty 12

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

52

Husqvarna 532413805

KIT, LAWN MOWER HOUSING ASSY
(Superseded to 532442454)

$193.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

44

Husqvarna 532184193

BOLT

$

$

Not available

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, only 1 left!

0

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.49

$

In Stock, Qty 8

0

67

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0
