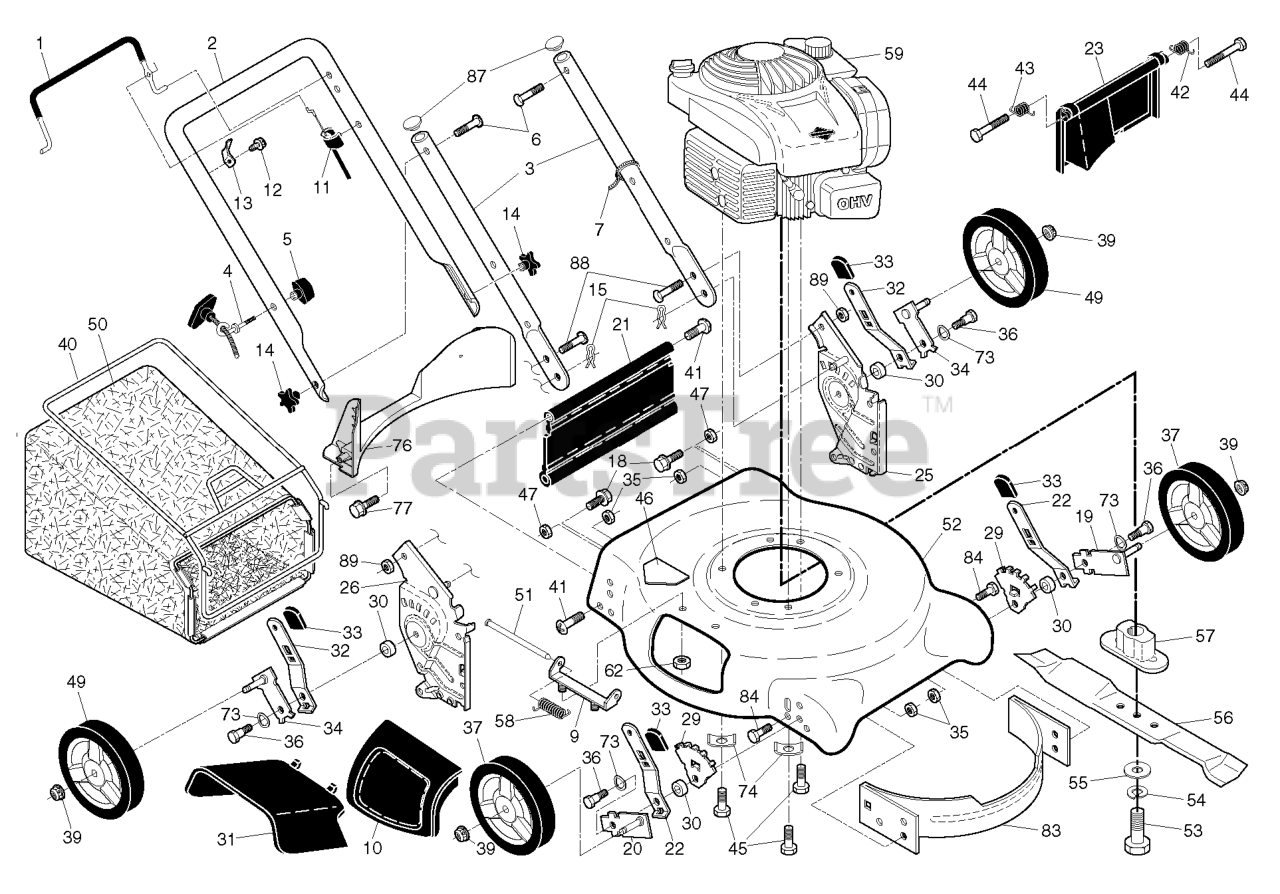

5521 L (961330023-02) - Husqvarna 21" Walk-Behind Mower (2015-11) PRODUCT COMPLETE Parts Diagram

21" Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

$26.99

$

In Stock, Qty 8

0

2

Husqvarna 585864806

HANDLE.UP.DST.SS/VS.FG/RG.NHGY

$

$

Not available

3

Husqvarna 580638603

HANDLE.LOWER.DOME.BT.GREY

$

$

Not available

4

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 15

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$

$

Not available

10

Husqvarna 581825801

DOOR.MULCH.21".REAR.PUSH.GRAY

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532408047

CONTROL.ZONE.ASM

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.49

$

In Stock, Qty 8

0

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 5

0

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: LH

$

$

Not available

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RH

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532416860

SKIRT.REAR.21.PUSH

$13.99

$

In Stock, Qty 8

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

Note: FRONT

$4.99

$

In Stock, Qty 11

0

23

Husqvarna 581425601

DOOR.REAR.21.DOMED.498

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581714503

BRACKET.ASM.HAND.LW.21.LT.GREY

Note: LH

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581714603

BRACKET.ASM.HAND.LW.21.RT.GREY

Note: RH

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

Note: FRONT

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER(2 2)3 2

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482401)

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532410888

SPRING.SELECTOR.21RD.HTTRT.BZP
(Superseded to 532401623)

Note: REAR

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532410890

ARM.ASM.AXLE.REAR.5/9.POS.BZP

Note: LH

$7.49

$

In Stock, only 4 left!

0

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 18

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 10

0

37

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

41

Husqvarna 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 1 left!

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 532184193

BOLT

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 2 left!

0

50

Husqvarna 581002112

GBAG.2323029ER.HU.VENT.GRY.SIL
(Superseded to 581002101)

$93.99

$

In Stock, Qty 20+

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 12

0

52

Husqvarna 532441950

HOUSING.21.M/C.DOME.ORANGE
(Superseded to 581708322)

Note: . 46

$

$

Not available

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$15.99

$

In Stock, Qty 20+

0

57

Husqvarna 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

58

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, Qty 11

0

59

000000000

Note: B S 9P702-0177-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$12.99

$

In Stock, only 2 left!

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$17.99

$

In Stock, Qty 10

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

87

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

88

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 20+

0

89

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 581276301

BAG.OF.PARTS.21 DOME.PUSH

Note: NOT SHOWN. 88 89

$3.49

$

Usually ships in 3-10 days

0
