5521 RS (954223470-C) - Husqvarna 21" Walk-Behind Mower (2004-07) Gear Case Assembly Parts Diagram

21" Walk-Behind Mower

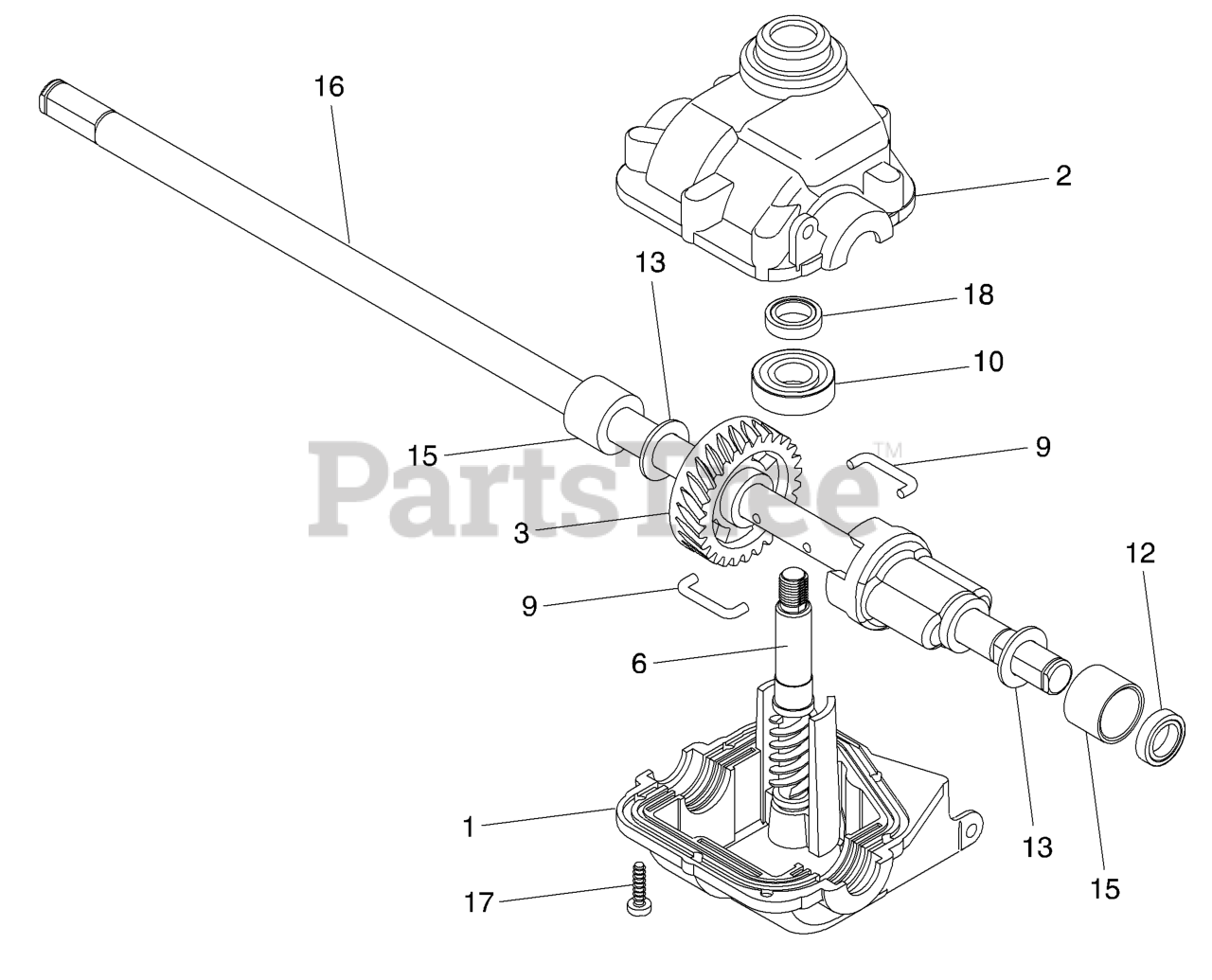

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 532187530

CASE, LOWER

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$

$

Not available

2

Husqvarna 532187531

CASE, UPPER

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

GEAR.24.TOOTH.WALK.MOWER

$

$

Not available

6

Husqvarna 532187533

SHAFT INPUT

$

$

Not available

9

Husqvarna 532183505

WIRE, FORMED (15966)

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532183506

BEARING

$

$

Not available

12

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$9.99

$

In Stock, Qty 6

0

13

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532183511

BUSHING

$

$

Not available

16

Husqvarna 532190948

SHAFT OUTPUT (12215)

$

$

Not available

17

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

Husqvarna 532187213

GEAR CASE ASM.
(Superseded to 532414282)

$

$

Not available
