5521 RS (961430002-00) - Husqvarna 21" Walk-Behind Mower (2005-03) Gear Case Assembly Parts Diagram

21" Walk-Behind Mower

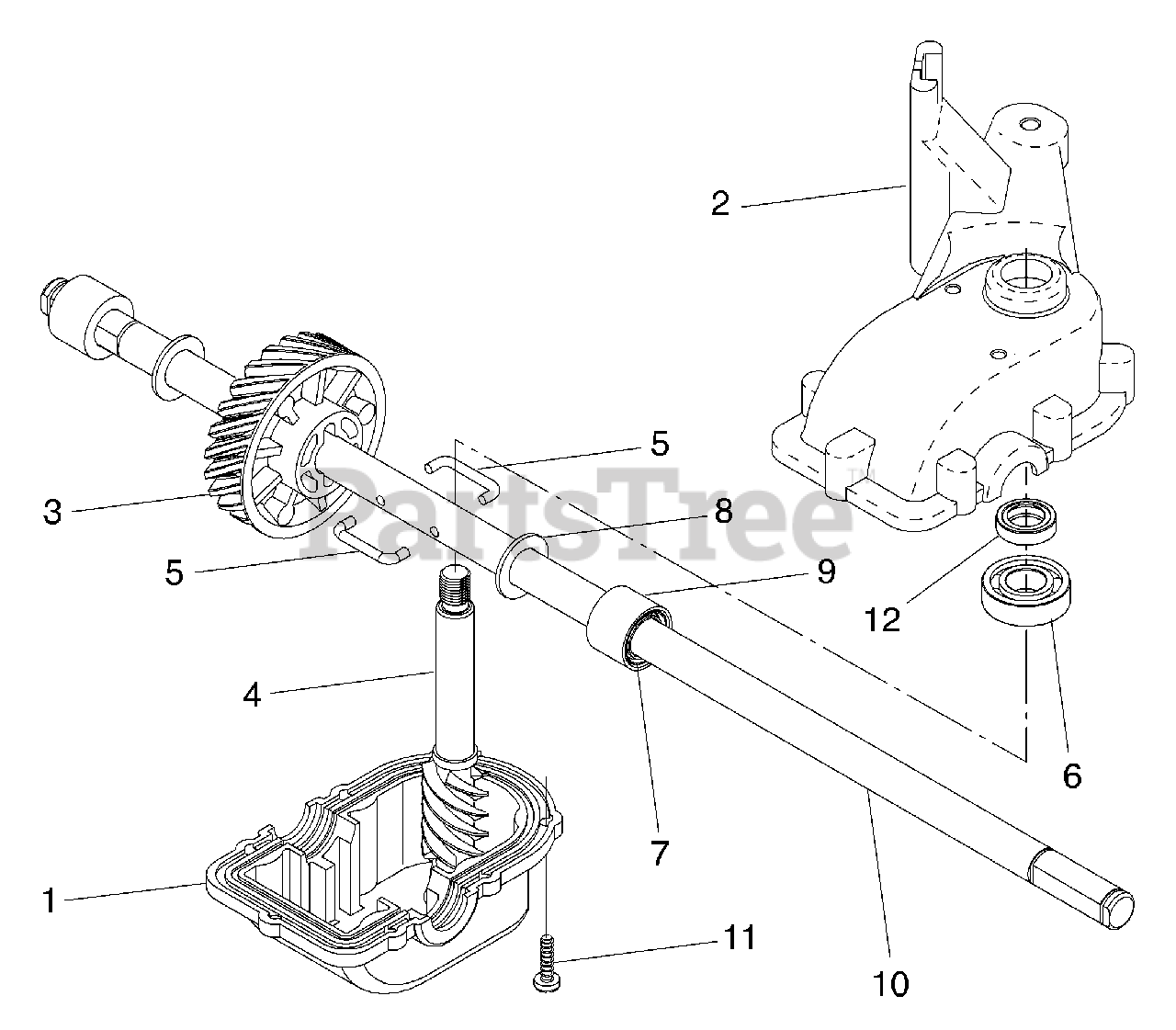

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 532187530

Case, Lower

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532187531

Case, Upper

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532187533

Shaft, Input

$30.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532191249

Wire, Formed
(Superseded to 532188645)

$133.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, Qty 7

0

8

Husqvarna 532183509

Washer

$

$

Not available

9

Husqvarna 532183511

Bushing

$

$

Not available

10

Husqvarna 532190948

Shaft, Output

$60.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532183513

Screw

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 1 left!

0

Husqvarna 532750369

Grease, Texaco Starplex Premium 1
(Superseded to 585517301)

Note: (Do not substitue) 1.4 ounce capacity)

$

$

Not available

Husqvarna 532188645

Gear Case Assembly
(Superseded to 532414282)

$133.99

$

Usually ships in 3-10 days

0
