5521 RS (961430002-01) - Husqvarna 21" Walk-Behind Mower (2005-05) Drive Assembly Parts Diagram

21" Walk-Behind Mower

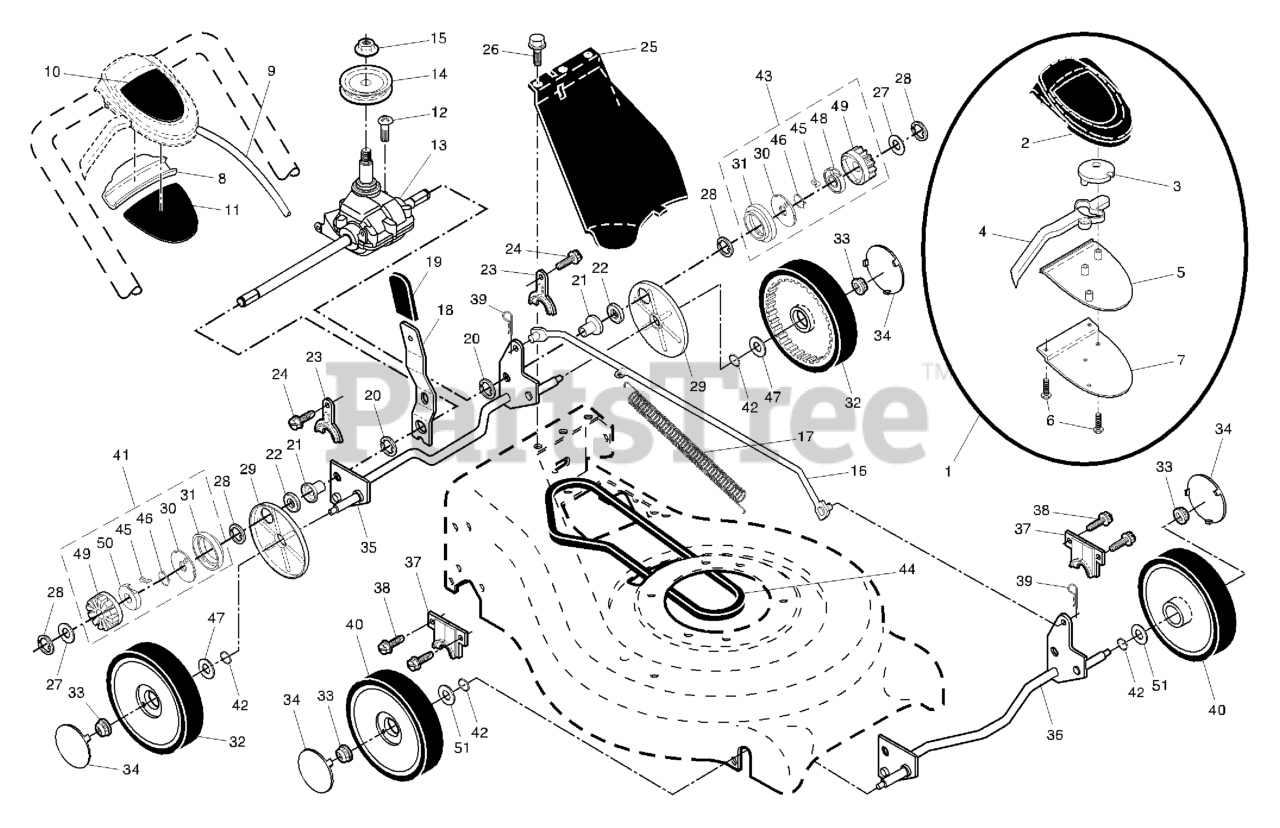

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532189741

CONTROL.WALK.EZ.BLACK

$

$

Not available

2

Husqvarna 532188279

COVER, DRIVE CONTROL, TOP
(Superseded to 532197168)

$

$

Not available

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$

$

Not available

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$

$

Not available

5

Husqvarna 532188278

COVER, DRIVE CONTROL BOTTOM
(Superseded to 532197168)

$

$

Not available

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$

$

Not available

9

Husqvarna 532190284

CABLE, DRIVE CONTROL

$

$

Not available

10

Husqvarna 532189074

DECAL.DRIVE.CONTROL.HV

$

$

Not available

11

Husqvarna 532185913

DECAL

$

$

Not available

12

Husqvarna 532187653

SCREW

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188645

TRANSMISSION.21.RWGD.EZ/AW/VS
(Superseded to 532414282)

Note: (See Breakdown)

$

$

Not available

14

Husqvarna 532189408

RP PULLEY DRIVE
(Superseded to 532194128)

$22.99

$

In Stock, Qty 6

0

15

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

16

Husqvarna 532161584

ROD CONNECTING
(Superseded to 532414284)

$

$

Not available

17

Husqvarna 532161602

SPRING
(Superseded to 532409616)

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 532190794

SPRING SELECTOR
(Superseded to 532418835)

$

$

Not available

19

Husqvarna 532190622

KNOB, SELECTOR SPRING
(Superseded to 532189808)

$

$

Not available

20

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

21

Husqvarna 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

22

Husqvarna 532169911

BEARING, BALL

$

$

Not available

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532057808

SCREW

$

$

Not available

25

Husqvarna 532195503

COVER.DRIVE.21
(Superseded to 532400783)

$

$

Not available

26

Husqvarna 532750634

SCREW

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532052160

WASHER
(Superseded to 596040101)

Note: (as required)

$3.49

$

In Stock, Qty 14

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$

$

Not available

31

Husqvarna 532184172

SEAL.PINION

$

$

Not available

32

Husqvarna 532188042

WHEEL 9X2
(Superseded to 532193139)

$56.99

$

In Stock, only 2 left!

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

34

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

35

Husqvarna 532196016

SHAFT.ASM.REAR.TORQUE
(Superseded to 532403102)

$37.99

$

In Stock, only 1 left!

0

36

Husqvarna 532196015

SHAFT ASSY FRONT
(Superseded to 532407175)

$28.99

$

In Stock, only 1 left!

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

38

Husqvarna 532163409

SCREW

$3.49

$

In Stock, Qty 13

0

39

Husqvarna 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532150348

FRONT.WHEEL.8X2
(Superseded to 581009401)

$

$

Not available

41

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$

$

Not available

42

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$

$

Not available

44

Husqvarna 532182212

V-BELT
(Superseded to 531300775)

$

$

Not available

45

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.99

$

In Stock, Qty 16

0

46

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, Qty 11

0

47

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 9

0

48

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

49

Husqvarna 532175103

GEAR, PINION

$

$

Not available

50

Husqvarna 532175102

RETAINER, DRIVE, RH

$

$

Not available

51

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 16

0
