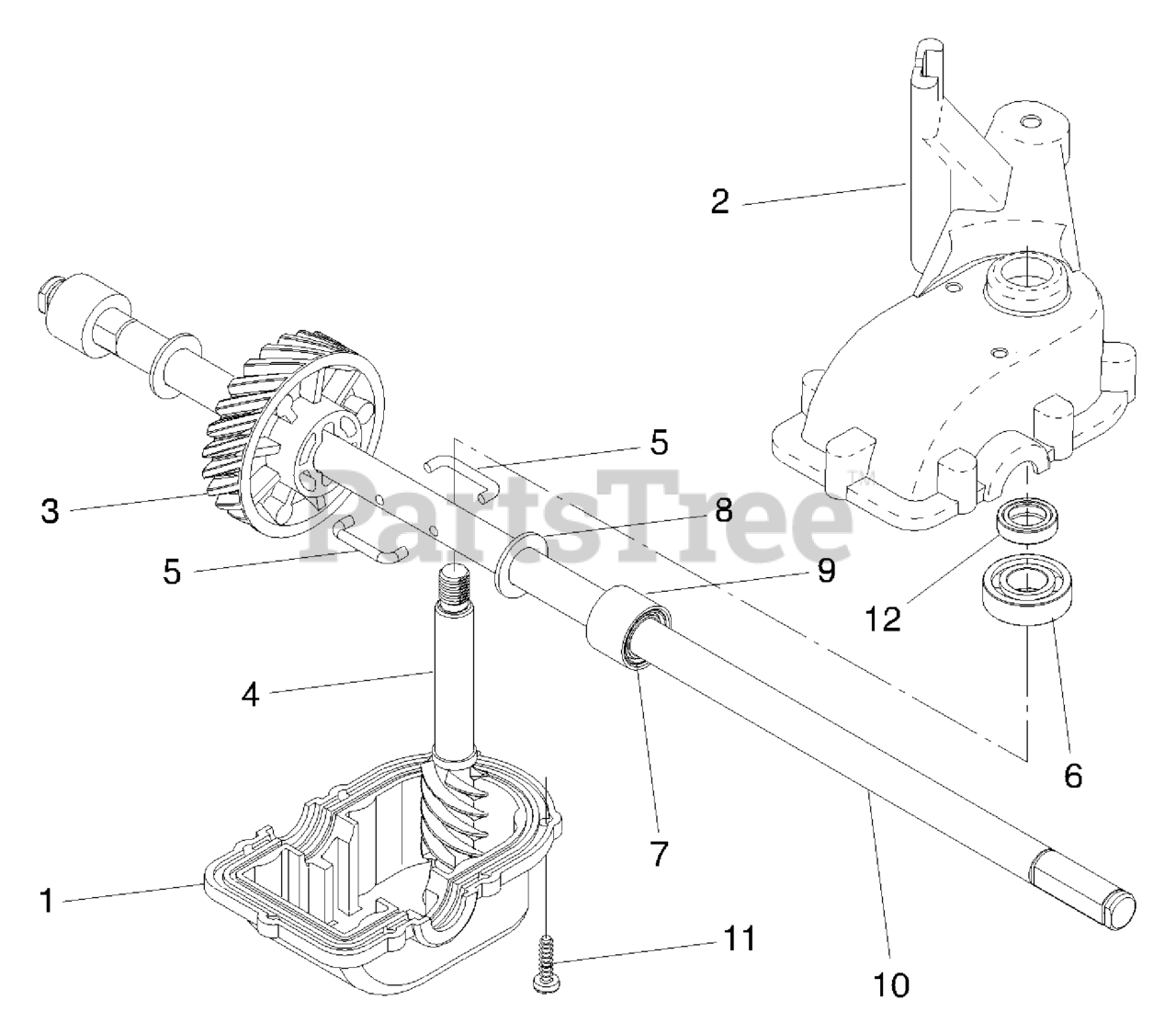

5521 RS (961430002-01) - Husqvarna 21" Walk-Behind Mower (2005-05) Gear Case Assmebly Parts Diagram

21" Walk-Behind Mower

Gear Case Assmebly Parts Diagram

  • Title

1

Husqvarna 532187530

CASE, LOWER

$

$

Not available

2

Husqvarna 532187531

CASE, UPPER

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

GEAR.24.TOOTH.WALK.MOWER

$

$

Not available

4

Husqvarna 532187533

SHAFT INPUT

$

$

Not available

5

Husqvarna 532191249

RP.SHAFT.OUTPUT.RGD.VS/EZ
(Superseded to 532188645)

$

$

Not available

6

Husqvarna 532183506

BEARING

$

$

Not available

7

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0

8

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532183511

BUSHING

$

$

Not available

10

Husqvarna 532190948

SHAFT OUTPUT (12215)

$

$

Not available

11

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

Husqvarna 532750369

GREASE
(Superseded to 585517301)

$

$

Not available
