5521 RS (961430002-03) - Husqvarna 21" Walk-Behind Mower (2006-02) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

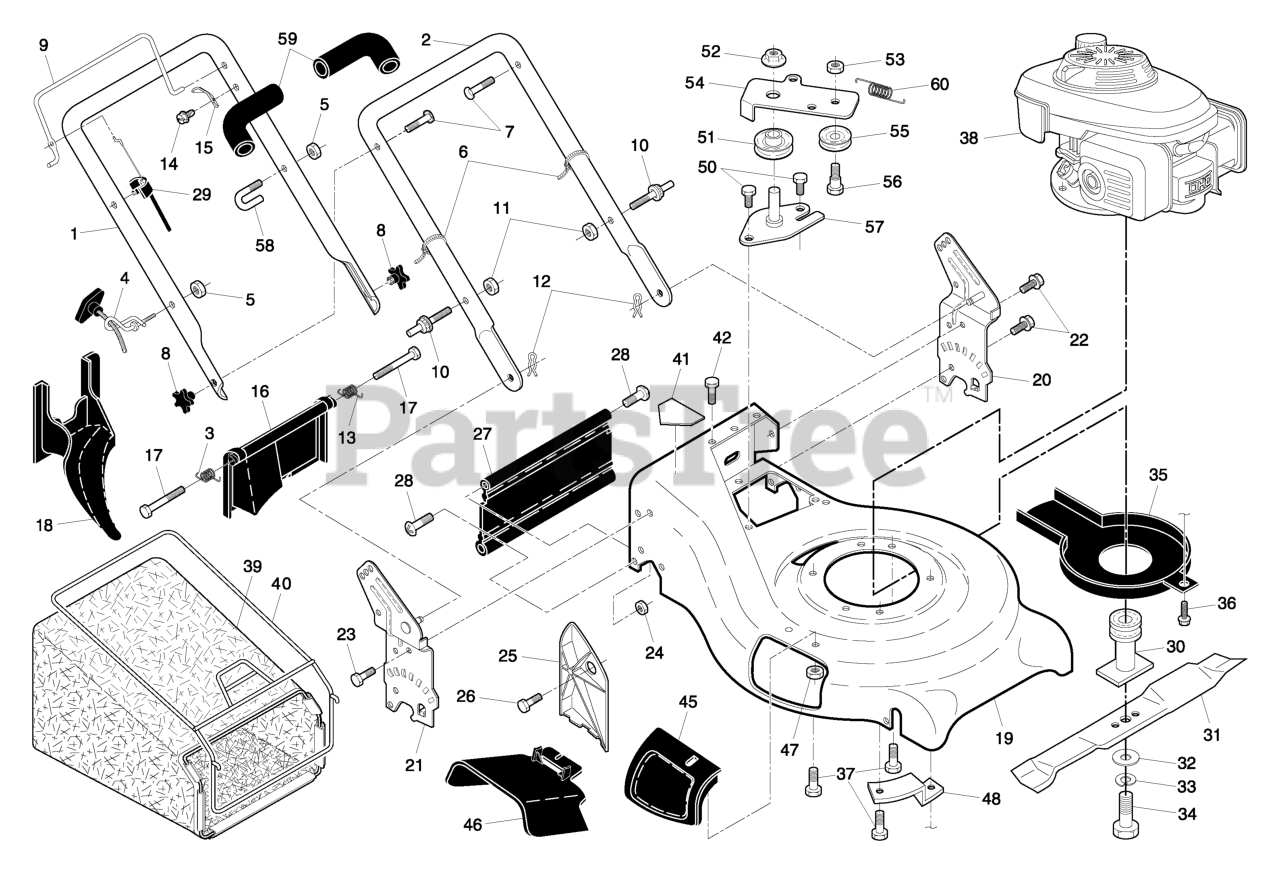

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532199982

HANDLE.ASM.UP.OFF/EZ.CR.W/GRIP
(Superseded to 583444201)

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

3

Husqvarna 532186053

SPRING.LH.REAR.DOOR.21.RWGD

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

9

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available

10

Husqvarna 532188821

BOLT

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, Qty 5

0

12

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

13

Husqvarna 532186052

SPRING.RH.REAR.DOOR.21.RWGD

$

$

Not available

14

Husqvarna 532750634

SCREW

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$45.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

BOLT

$

$

Not available

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$43.99

$

In Stock, only 2 left!

0

19

Husqvarna 532185601

RP KIT.HSG.21.RGD.MC.ORAN
(Superseded to 532407535)

$

$

Not available

20

Husqvarna 532194029

BRKT.ASM.HNDL.21.RWGD.LT
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532194031

BRKT.ASM.HNDL

$39.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$3.49

$

In Stock, Qty 13

0

27

Husqvarna 532188986

SKIRT, REAR
(Superseded to 532408442)

$

$

Not available

28

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

29

Husqvarna 532191221

SNAP-ON.ZONE.CABLE.ASS

$26.99

$

In Stock, Qty 6

0

30

Husqvarna 532189179

BLADE ADAPTOR / PULLEY
(Superseded to 532421176)

$31.99

$

In Stock, only 2 left!

0

31

Husqvarna 532189028

BLADE.21.PUSH/RWGD/FWG

$22.99

$

In Stock, Qty 10

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532188786

DEBRIS SHEILD

$

$

Not available

36

Husqvarna 532192325

SCREW.HEX.WSH

$5.99

$

In Stock, only 2 left!

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

38

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532401683

GBAG.44710247.SILVER.

$159.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532194644

FRAME.CATCHER.21.RGD.AG

$

$

Not available

41

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

SCREW

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$

$

Not available

50

Husqvarna 532057808

SCREW

$

$

Not available

51

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

52

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

53

Husqvarna 532155552

LOCKNUT
(Superseded to 873930500)

$3.49

$

In Stock, Qty 5

0

54

Husqvarna 532185898

IDLER ARM
(Superseded to 532179719)

$

$

Not available

55

Husqvarna 532166043

IDLER PULLEY

$34.99

$

In Stock, Qty 6

0

56

Husqvarna 532160829

SHOULDER BOLT

$5.99

$

In Stock, only 2 left!

0

57

Husqvarna 532193315

BRACKET.IDLER.ASM.EZ

$6.99

$

In Stock, only 4 left!

0

58

Husqvarna 532182003

CLIP

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

60

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$9.49

$

In Stock, Qty 20+

0

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532199981

OWNER'S MANUAL, ENGLISH/FRENCH

$

$

Not available
