55233 - Toro 36" Lawn Tractor (SN: 003000001 - 003999999) (1973) EXHAUST ASSEMBLY Parts Diagram

36" Lawn Tractor

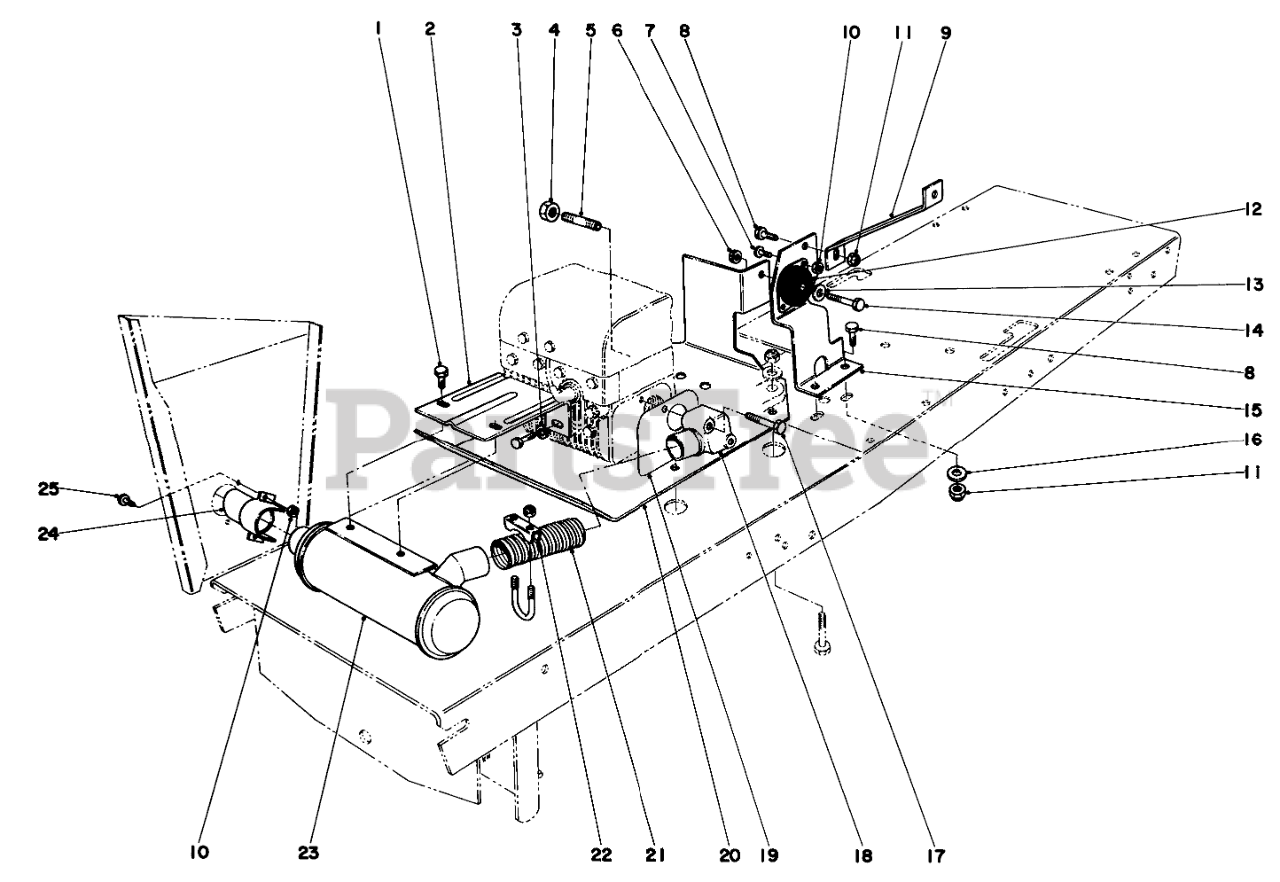

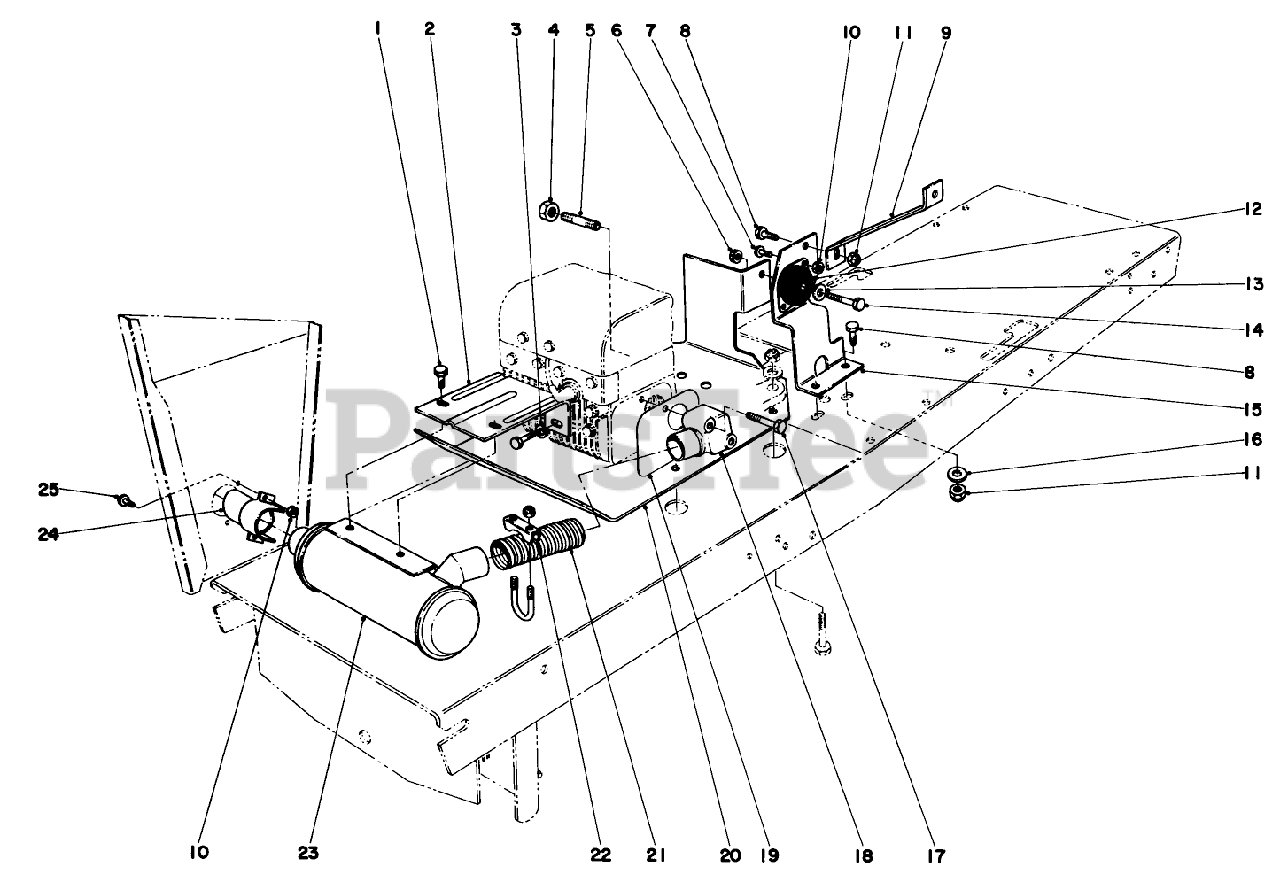

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

2

Toro 7-7870

Hanger Muffler

$

$

Currently unavailable

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 7-8720

Cap-Pipe

$

$

Currently unavailable

5

Toro 289-36

NIPPLE 3/8NPTX 1.50

$

$

Not available

6

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

7

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-7470

Brace

$

$

Currently unavailable

10

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

12

Toro 7-6990

Mount Rubber

$

$

Currently unavailable

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 7-7480

Mount Rear

$

$

Currently unavailable

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 7-8850

Capscrew

$

$

Not available

18

Toro 7-8760

Elbow Exhaust

$

$

Not available

19

Toro 7-8970

Heat Shield

$

$

Currently unavailable

20

Toro 7-7590

Engine Mount

$

$

Currently unavailable

21

Toro 7-8700

Exhaust Tubing

$

$

Not available

22

Toro 5-3179

Muffler Clamp

$

$

Not available

23

Toro 7-7180

Muffler

$

$

Not available

24

Toro 7-7070

Exhaust Tip

$

$

Currently unavailable

25

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0
