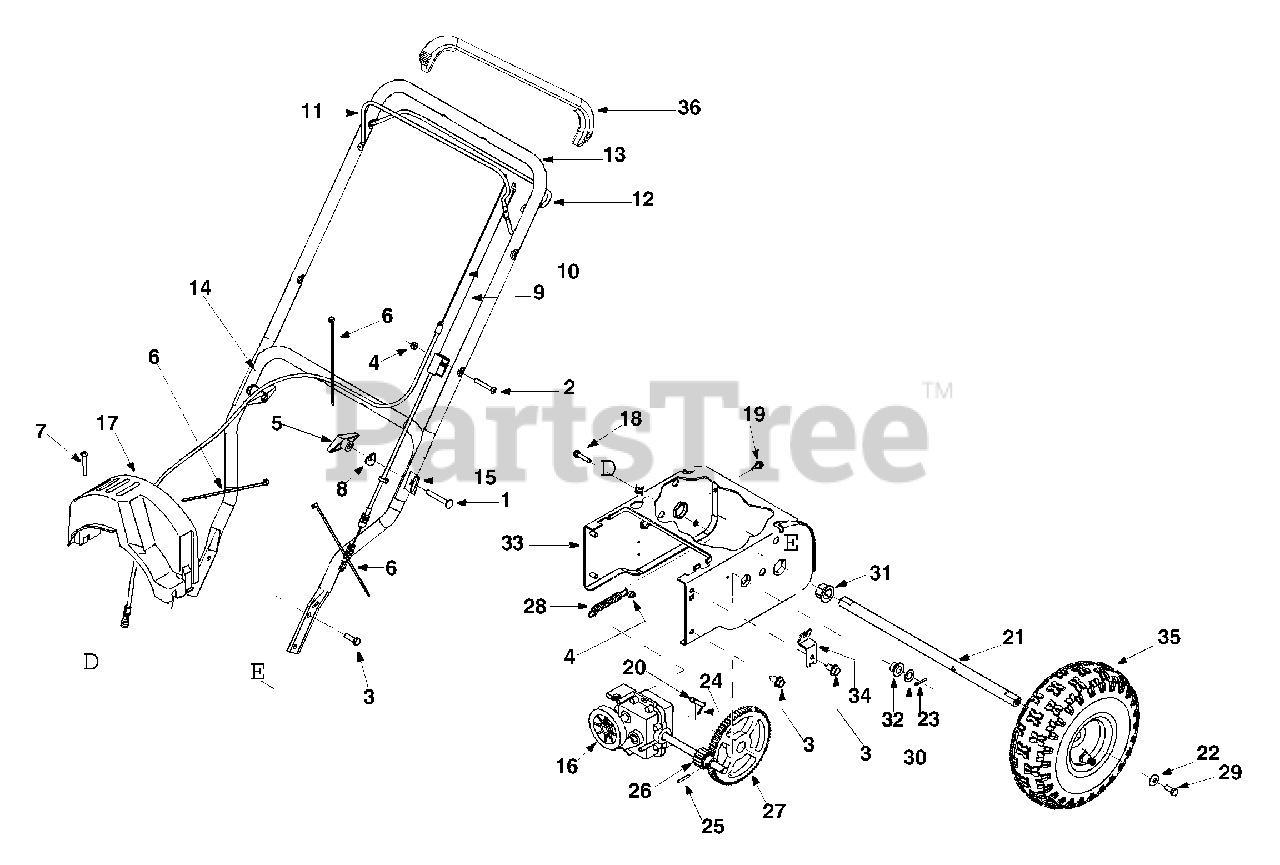

5524 CS (31AS3BB2766) - Troy-Bilt Storm 24" Snow Thrower (2005) Drive Parts Diagram

Storm 24" Snow Thrower

Drive Parts Diagram

  • Title

1

Troy-Bilt 710-0449

Carriage Screw 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

2

Troy-Bilt 710-0605

Mach. Screw 1/4-20 x 1.825"

$4.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0726

Screw, 5/16-12 x.75"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-0284

Handle Knob Assembly

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0224

Hex Screw, #10-16 x.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 14

0

8

Troy-Bilt 736-0451

Saddle Washer

$4.99

$

In Stock, Qty 8

0

9

Troy-Bilt 746-04007

Auger Cable
(Superseded to 946-04007)

$44.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 731-04216A

FITTING-DUAL CABLE

Note: Not shown

$11.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 746-04008

Drive Cable
(Superseded to 946-04008)

Note: use with 618-04008 Transmission Assembly

$50.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 746-04256

Drive Cable
(Superseded to 946-04256)

Note: use with 618-04296A Transmission Assembly

$62.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 747-1161A

Auger Control

Variations

747-1161A-0637

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

12

Troy-Bilt 747-1214

Drive Control

$24.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 749-1092A

Upper Handle

Variations

749-1092A-0637

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$51.99

$

In Stock, only 3 left!

0

749-1092A-0638

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 749-04147

Lower Handle
(Superseded to 749-04147B)

Variations

749-04147-0637

Troy-Bilt 749-04147-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 790-00053

Handle Tab
(Superseded to 990-00053)

$7.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 618-04008

Transmission Assembly
(Superseded to 753-05146)

Note: use 753-05146

$343.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-05146

Transmission Assembly Kit

Note: Includes 618-04296A Transmission Assembly and 746-04256 Drive Cable

$343.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 618-04296A

Transmission Assembly
(Superseded to 918-04296B)

$303.99

$

In Stock, Qty 5

0

17

Troy-Bilt 731-04162

Belt Cover
(Superseded to 931-04162A)

$32.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-0809

TT Screw 1/4-20 x 1.25"

$7.49

$

In Stock, Qty 7

0

19

Troy-Bilt 710-1652

Screw, 1/4-20 x.625"

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 711-1364

Clevis Pin

$8.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 738-1231

Axle
(Superseded to 738-04321)

$47.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 714-0115

Cotter Pin, 1/8 x 1.0

$4.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 714-0507

Cotter Pin, 3/32 x.750

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 715-0249

Roll Pin
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 18

0

26

Troy-Bilt 717-04066

Pinion 14T
(Superseded to 917-04066)

$25.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 717-04073

Gear 70T
(Superseded to 917-04073A)

$64.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 732-0429A

Extension Spring
(Superseded to 932-0429A)

$9.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0627

Lock Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 10

0

30

Troy-Bilt 736-0192

Flat Washer

$4.99

$

In Stock, Qty 16

0

31

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 741-04108

Hex Flange Bearing

$6.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 784-0419A

Drive Housing Frame
(Superseded to 784-0419C)

Variations

784-0419A-0638

Troy-Bilt 784-0419A-0638

HOUSING-FRAME WHL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

784-0419A-0689

Troy-Bilt 784-0419A-0689

HOUSING-FRAME WHL - POLO GREEN (0689)

$83.99

$

Usually ships in 3-6 days

0

784-0419A-0691

Troy-Bilt 784-0419A-0691

HOUSING-FRAME WHL - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

784-0419A-0709

Troy-Bilt 784-0419A-0709

HOUSING-FRAME WHL - MASTERCRAFT GREEN (0709)

$82.99

$

Usually ships in 3-6 days

0

784-0419A-0729

Troy-Bilt 784-0419A-0729

HOUSING-FRAME WHL - STORM GRAY (0729)

$83.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 790-00015

Auger Cable Bracket
(Superseded to 790-00015-0637)

Variations

790-00015-0637

Troy-Bilt 790-00015-0637

Auger Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 634-0232

Wheel Assembly (Plastic Rim) Snow Hog Gray
(Superseded to 934-04282B)

Note: SEE SAFETY RECALL

$

$

Not available

35

Troy-Bilt 753-05427

Pressure Relief Valve for wheel assy
(Superseded to 753-10984)

Note: SEE SAFETY RECALL, Not shown

$201.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-04204

Deluxe Bail Cover

$12.99

$

In Stock, only 2 left!

0
