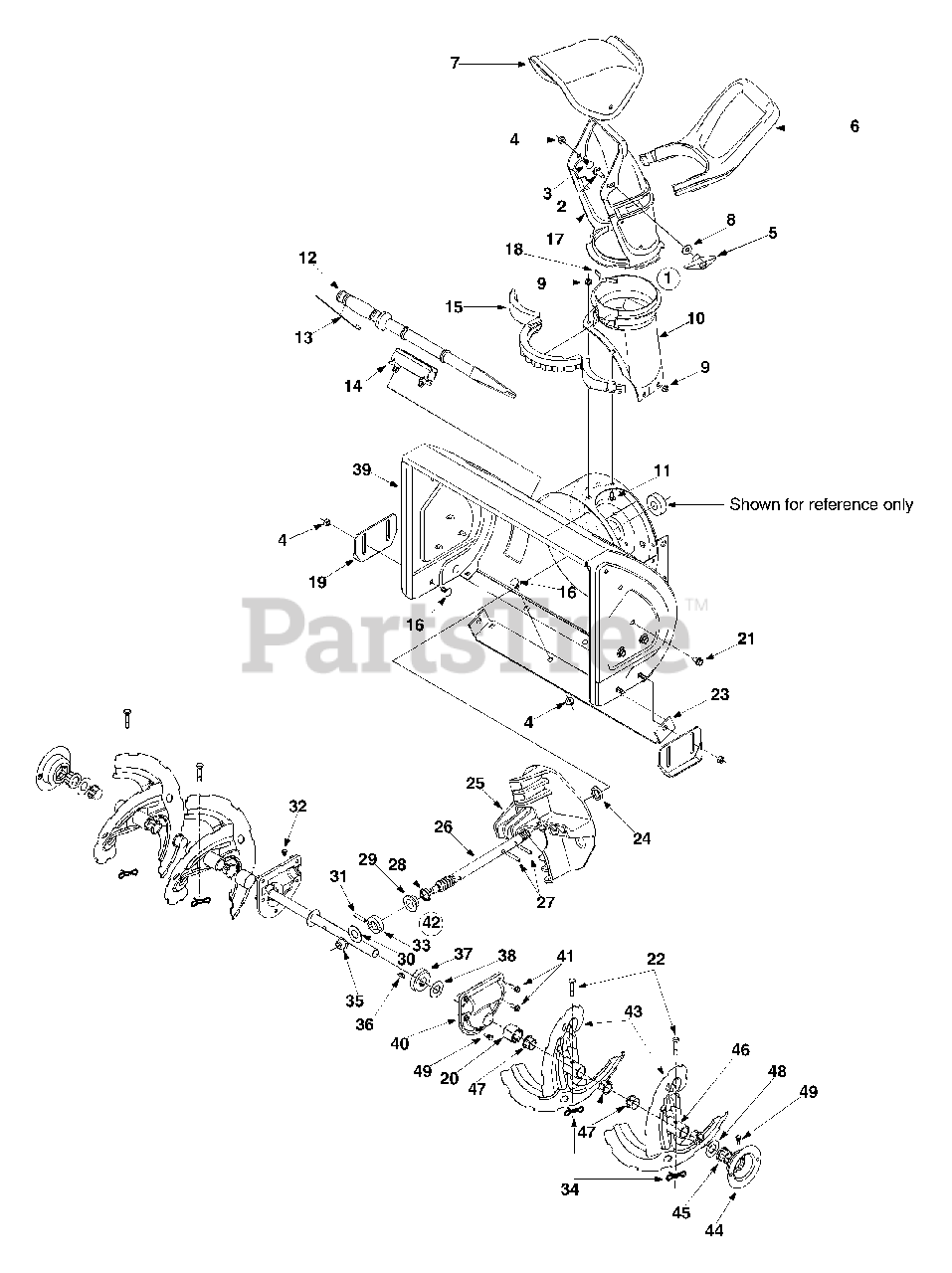

5524 CS (31AS3BB2766) - Troy-Bilt Storm 24" Snow Thrower (2005) General Assembly CS Parts Diagram

Storm 24" Snow Thrower

General Assembly CS Parts Diagram

  • Title

1

Troy-Bilt 684-04037

Chute Assembly
(Superseded to 984-04037)

$84.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-0284

Chute Knob Assembly

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04388A

Chute Handle

$28.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$20.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-2636A

Chute Adapter
(Superseded to 931-2636A)

$22.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 710-0134

Carriage Screw 1/4-20 x 0.62"

$4.49

$

In Stock, Qty 12

0

12

Troy-Bilt 731-2643

Clean-out Tool
(Superseded to 931-2643)

$20.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 731-2635

Clean-out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

15

Troy-Bilt 731-04353

Lower Chute Ring
(Superseded to 931-04353)

$20.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-04127

Lower Chute
(Superseded to 931-04127)

$35.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 732-04111

Chute Adjuster Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 16

0

19

Troy-Bilt 784-5580

Skid Shoe, Standard

Note: Can be replaced with 731-06439

Variations

Troy-Bilt 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$24.99

$

In Stock, Qty 10

0

Troy-Bilt 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$24.99

$

In Stock, Qty 10

0

Troy-Bilt 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$24.99

$

In Stock, Qty 20+

0

$24.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0451

Screw, Carriage 5/16-18 x .750

Note: Use w/ 784-5580

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04063

Nut, Nylon Lock 5/16-18

Note: Use w/ 784-5580

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0159

Washer, Flat .349 x .879 x .063

Note: Use w/ 784-5580

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-06439

Skid Shoe, Polymer Small

$22.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$58.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 710-0276

Screw, Carriage 5/16-18 x 1.00

Note: Use w/ 731-06439

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04063

Nut, Nylon Lock 5/16-18

Note: Use w/ 731-06439

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0159

Washer, Flat .349 x .879 x .063

Note: Use w/ 731-06439

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-04870

Spacer, 1.25OD x .75ID x 1.00Lg.

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-0726

AB Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-04124

Shear Pin,.25 x 1.50
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 790-00120

Shave Plate

Variations

Troy-Bilt 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0606

Shave Plate, 24" - MAJESTIC ORANGE

$36.99

$

In Stock, only 4 left!

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-4044

Shave Plate, 24" - CRAFTSMAN RED

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-4021

Shave Plate, 24" - CUB YELLOW 2

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0691

Shave Plate, 24" - BLACK JACK

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-4062

Shave Plate, 24" - COOL GRAY (4062)

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0665

Shave Plate, 24" - YARDMAN GREEN

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0662

Shave Plate, 24" - OYSTER GRAY

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0689

Shave Plate, 24" - POLO GREEN

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0709

Shave Plate, 24" - MASTERCRAFT GREEN

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-4041

Shave Plate, 24" - PURE ORANGE

$36.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$31.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 750-04191

Spacer
(Superseded to 950-04191)

$6.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-04218A

Impeller
(Superseded to 731-04218B)

$87.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 717-1772A

Worm Shaft
(Superseded to 917-1772A)

$

$

Not available

27

Troy-Bilt 715-04020

Spiral Pin

$12.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 721-0327

Oil Seal

$6.99

$

In Stock, Qty 17

0

29

Troy-Bilt 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 6

0

30

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12 x.06

$5.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 715-04021

Spiral Pin

$4.49

$

In Stock, only 4 left!

0

32

Troy-Bilt 721-0325

Plug

$4.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 718-04071

Thrust Collar

$8.49

$

In Stock, Qty 12

0

34

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 741-0663

Flange Bearing

$10.99

$

In Stock, Qty 15

0

36

Troy-Bilt 714-0161

Key
(Superseded to 914-0161)

$4.99

$

In Stock, Qty 18

0

37

Troy-Bilt 717-0528A

Worm Gear 20T
(Superseded to 917-04861)

$45.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 684-04090

Auger Housing, 24"
(Superseded to 684-04090-0638)

Variations

Troy-Bilt 684-04090-0638

24" AUGER HOUSING (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

40

Troy-Bilt 618-0418

Housing Ass'y LH w/Grease Ftg Hole
(Superseded to 918-0418A)

$66.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 618-0123

Reducer Housing Assembly RH
(Superseded to 918-0123A)

$55.99

$

In Stock, Qty 7

0

41

Troy-Bilt 710-0642

TT Screw 1/4-20x 0.75"

$4.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 618-04196

Auger Gearbox Assembly
(Superseded to 918-04196)

$

$

Not available

43

Troy-Bilt 684-04113

Auger Assembly - LH
(Superseded to 684-04113A)

Variations

Troy-Bilt 684-04113-0637

AUGER ASM-LH - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04113-0638

AUGER ASM-LH - MTD/TROY-BILT RED (0638)

$85.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04113-0731

AUGER ASM-LH - YELLOW JACKET (0731)

$74.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 684-04114

Auger Assembly - RH
(Superseded to 684-04114A)

Variations

Troy-Bilt 684-04114-0637

AUGER ASM-RH - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04114-0638

AUGER ASM-RH - MTD/TROY-BILT RED (0638)

$85.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04114-0731

AUGER ASM-RH - YELLOW JACKET (0731)

$85.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 790-00138

Hex Bearing Housing
(Superseded to 790-00138A-0637)

Variations

Cub Cadet 790-00138A-0637

Bearing Housing, 1" Hex - POWDER BLACK

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 711-04285

Auger Axle, 24"
(Superseded to 711-04285A)

$95.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0
