5524 SEB (961930010-00) - Husqvarna 24" Snow Blower (2005-12) Handles Parts Diagram

24" Snow Blower

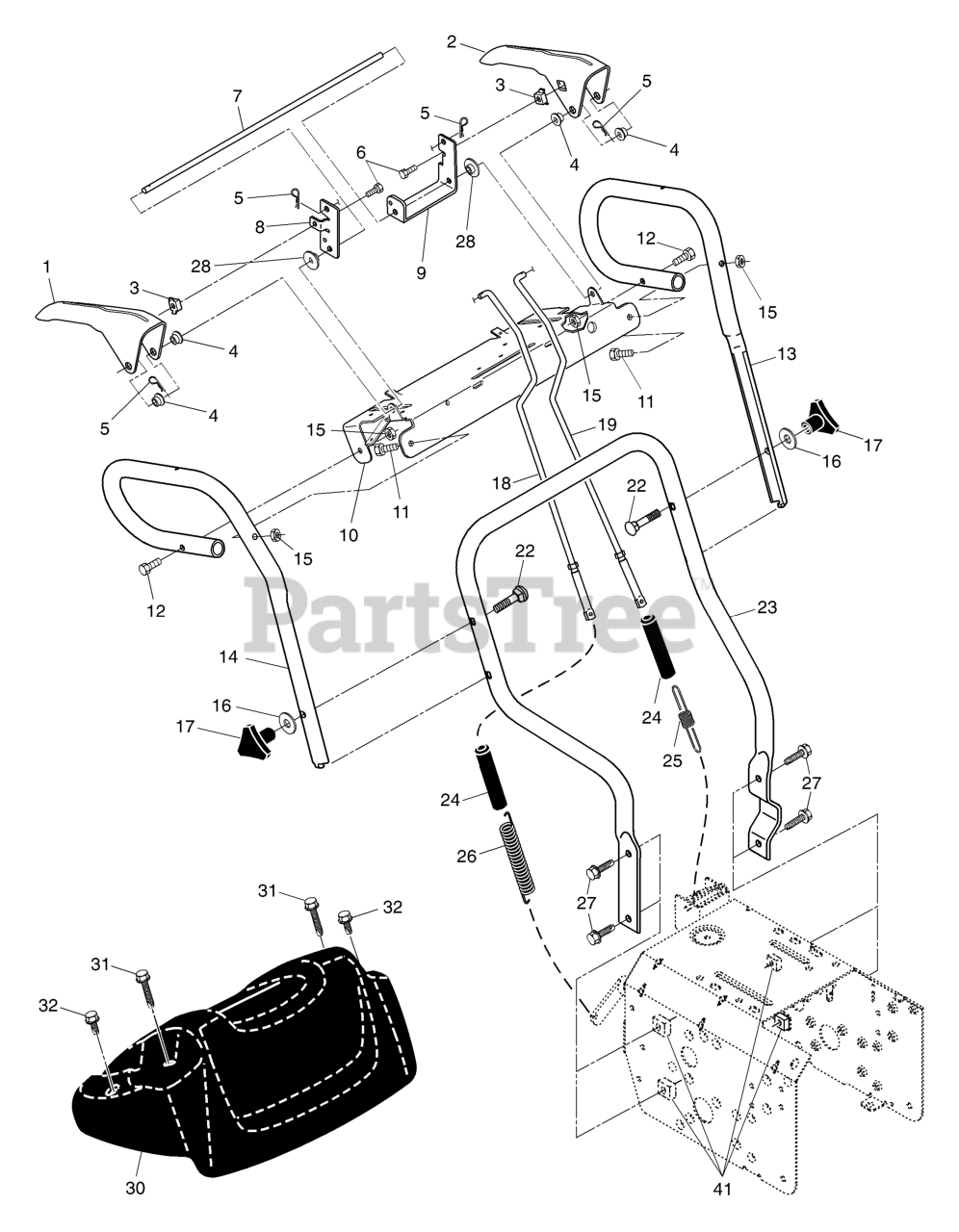

Handles Parts Diagram

  • Title

1

Husqvarna 532184110

LEVER, AUGER CONTROL
(Superseded to 532411423)

$

$

Not available

2

Husqvarna 532184109

LEVER, TRACTION DRIVE CONTROL
(Superseded to 532411391)

$

$

Not available

3

Husqvarna 532199639

NUT.CAGE 1/4-20

$

$

Not available

4

Husqvarna 532178888

BUSHING, FLANGE

$

$

Not available

5

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 3 left!

0

6

Husqvarna 532199640

SCREW HEX

$

$

Not available

7

Husqvarna 532178652

ROD.INTERLOCK

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532199576

ARM,IMPELLER ROD
(Superseded to 532429098)

$

$

Not available

9

Husqvarna 532199575

ARM,TRACTION ROD
(Superseded to 532196334)

$

$

Not available

10

Husqvarna 532199531

PANEL.CONTROL
(Superseded to 532196619)

$

$

Not available

11

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 874780528

SCREW

$

$

Not available

13

Husqvarna 532184107

HANDLE TUBE LH
(Superseded to 532436114)

$

$

Not available

14

Husqvarna 532184108

HANDLE TUBE RH
(Superseded to 532407857)

$

$

Not available

15

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

19

Husqvarna 532180481

ROD.ASM.TRACTION.

$

$

Not available

22

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$

$

Not available

23

Husqvarna 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

24

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532180926

SPRING, TRACTION DRIVE

$6.99

$

In Stock, Qty 6

0

26

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

Usually ships in 3-10 days

0

27

Husqvarna 871210616

Screw, Hex Head 3/8-16 x 1

$

$

Not available

28

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532183352

CONSOLE, HANDLE

$

$

Not available

31

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 3 left!

0

32

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING
(Superseded to 594975601)

$2.49

$

In Stock, only 2 left!

0

41

Husqvarna 532178890

NUT, CAGE 3/8-16
(Superseded to 532178820)

$6.99

$

Usually ships in 3-10 days

0
