5524 ST (961910016-01) - Husqvarna 24" Snow Blower (2007-10) DRIVE 2 Parts Diagram

24" Snow Blower

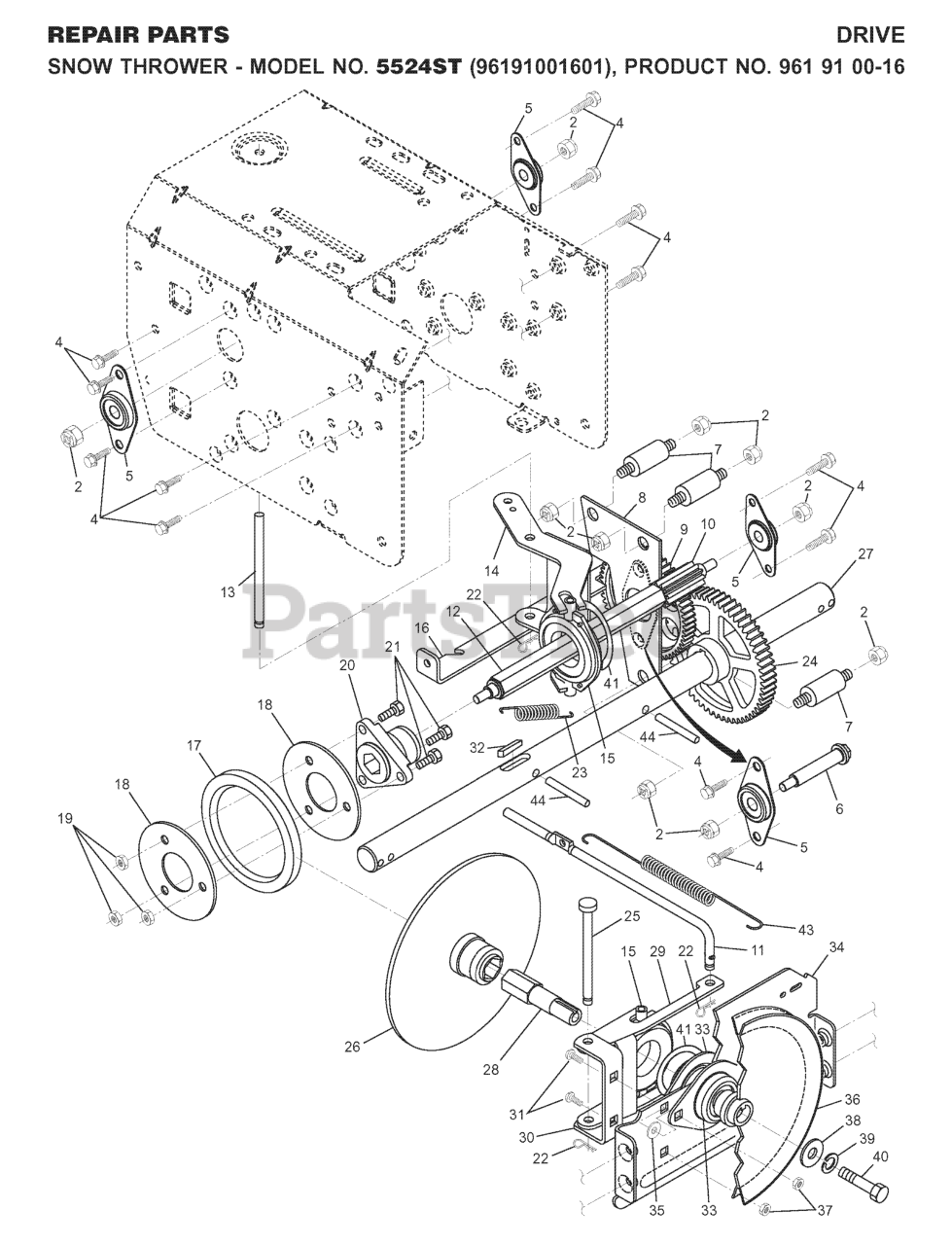

DRIVE 2 Parts Diagram

  • Title

81

Husqvarna 532165591

Shaft Asm Cross Tapered 650 20

$

$

Currently unavailable

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532142431

SPRING BRAKE

$8.99

$

In Stock, only 1 left!

0

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

102

Husqvarna 532141322

WASHER

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

105

Husqvarna 871070516

SCREW

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flanged 5/16-18 Unc x 2

$

$

Not available

22

Husqvarna 532145627

ROD BRAKE HYDRO

$157.99

$

In Stock, only 1 left!

0

95

Husqvarna 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$13.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532142564

LINE FUEL HYD 4"

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

145

Husqvarna 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

3

Husqvarna 532143995

PULLEY, TRANSAXLE

$34.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$

$

Not available

39

Husqvarna 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

8

Husqvarna 532165866

ROD SHIFT FENDER ADJUST STLT

$

$

Not available

9

Husqvarna 532145028

CLUTCH.ELECT.EVX.

$364.99

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

73

Husqvarna 532156347

STRAP TORQUE RH HYDRO

$

$

Not available

71

Husqvarna 532140158

STRAP LH TORQUE

$

$

Not available

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

160

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

104

Husqvarna 532140156

CONTROL ARM

$

$

Not available

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

40

Husqvarna 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

106

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$100.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$4.99

$

In Stock, only 1 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

94

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 3 left!

0

163

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532165838

KEEPER.BELT.IDLER.FLAT

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

100

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

56

Husqvarna 874760620

BOLT

$7.49

$

In Stock, only 3 left!

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

147

Husqvarna 874490524

Bolt Hex Flanged 5/16-18 Unc x 2

$

$

Not available

84

Husqvarna 532165815

LINK, TRANSAXLE

$

$

Not available

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 3 left!

0

98

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532154978

BRACKET, ASM CLUTCH MTG

$

$

Not available

97

Husqvarna 532140469

KEEPER BELT RH

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532166510

SHIFT CONSOLE
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

166

Husqvarna 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

157

Husqvarna 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 532180065

GEAR, PINION

$

$

Not available

5

Husqvarna 532180017

BEARING, FLANGE

$24.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532180081

GEAR, AXLE (58T)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

16

Husqvarna 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532435793)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 532179270

SPACER, PLATE

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

9

Husqvarna 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

35

Husqvarna 532182504

SPACER, BEARING

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532184075

PLATE.DRIVE.MOUNTING.BLACK

$14.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532188909

BEARING FLANGE

$24.99

$

In Stock, Qty 6

0

38

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532187714

ROD.CLUTCH.YELLOW.ZINC

$9.49

$

Usually ships in 3-10 days

0

39

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532435789)

$

$

Not available

26

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532184076

BRACKET, SHIFTER SUPPORT
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532180066

SHAFT.HEX.LONG

$

$

Not available

6

Husqvarna 532180134

SHAFT, AUXILIARY

$

$

Not available

29

Husqvarna 532184077

LEVER.SHIFTER.PLATE.BLACK

$12.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

27

Husqvarna 532179352

SHAFT.AXLE.16".SNOW

$60.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$17.99

$

In Stock, only 1 left!

0

17

Husqvarna 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$24.99

$

In Stock, Qty 8

0

2

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

14

Husqvarna 532184080

LEVER, SPEED CONTROL

$

$

Not available

19

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0
