5524 STE (961930014-01) - Husqvarna 24" Snow Blower (2008-01) Handles Parts Diagram

24" Snow Blower

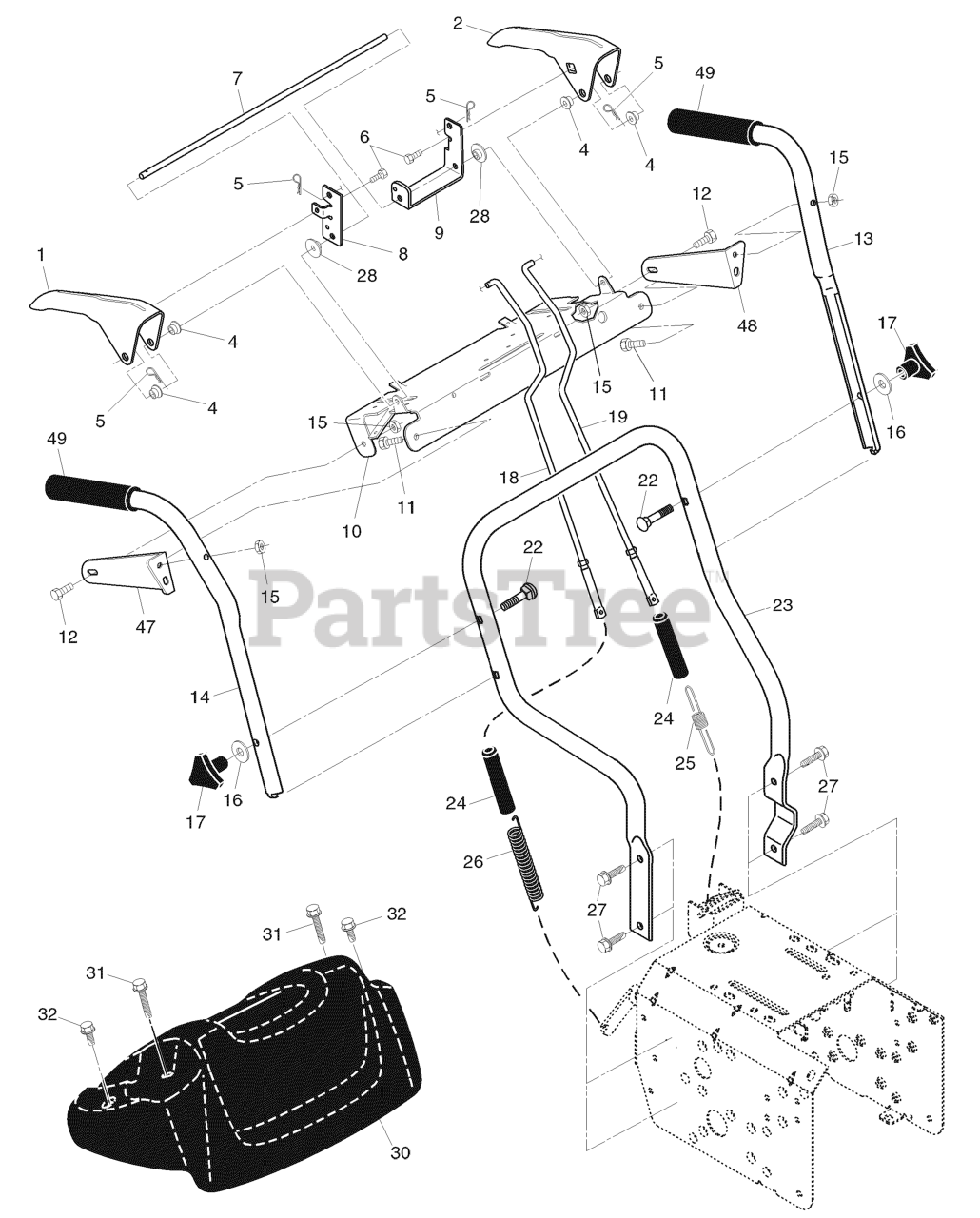

Handles Parts Diagram

  • Title

1

Husqvarna 532407649

LEVER, AUGER CONTROL, RH
(Superseded to 532411423)

$

$

Not available

2

Husqvarna 532407648

LEVER, TRACTION DRIVE CONTROL,
(Superseded to 532405783)

$

$

Not available

4

Husqvarna 532178888

BUSHING, FLANGE

$

$

Not available

5

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 3 left!

0

6

Husqvarna 817060408

SCREW

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178652

ROD.INTERLOCK

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532199576

ARM,IMPELLER ROD
(Superseded to 532429098)

$

$

Not available

9

Husqvarna 532199575

ARM,TRACTION ROD
(Superseded to 532196334)

$

$

Not available

10

Husqvarna 532199531

PANEL.CONTROL
(Superseded to 532196619)

$

$

Not available

11

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532415236

TUBE.HANDLE.PLOW.LH.PNT
(Superseded to 532414517)

$51.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532415237

TUBE.HANDLE.PLOW.RH.PNT
(Superseded to 532414516)

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

16

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

19

Husqvarna 532180481

ROD.ASM.TRACTION.

$

$

Not available

22

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$

$

Not available

23

Husqvarna 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

24

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532180926

SPRING, TRACTION DRIVE

$6.99

$

In Stock, Qty 6

0

26

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

Usually ships in 3-10 days

0

27

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 532412680

SPACER CONTROL LEVER

$

$

Not available

30

Husqvarna 532183352

CONSOLE, HANDLE

$

$

Not available

31

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING
(Superseded to 594975601)

$2.49

$

In Stock, only 2 left!

0

47

Husqvarna 532196943

BRKT.PANEL.RH.INT
(Superseded to 532429149)

$9.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532196944

BRKT.PANEL.LH.INT
(Superseded to 532429148)

$

$

Not available

49

Husqvarna 532199513

GRIP, HANDLE

$6.99

$

In Stock, Qty 7

0
