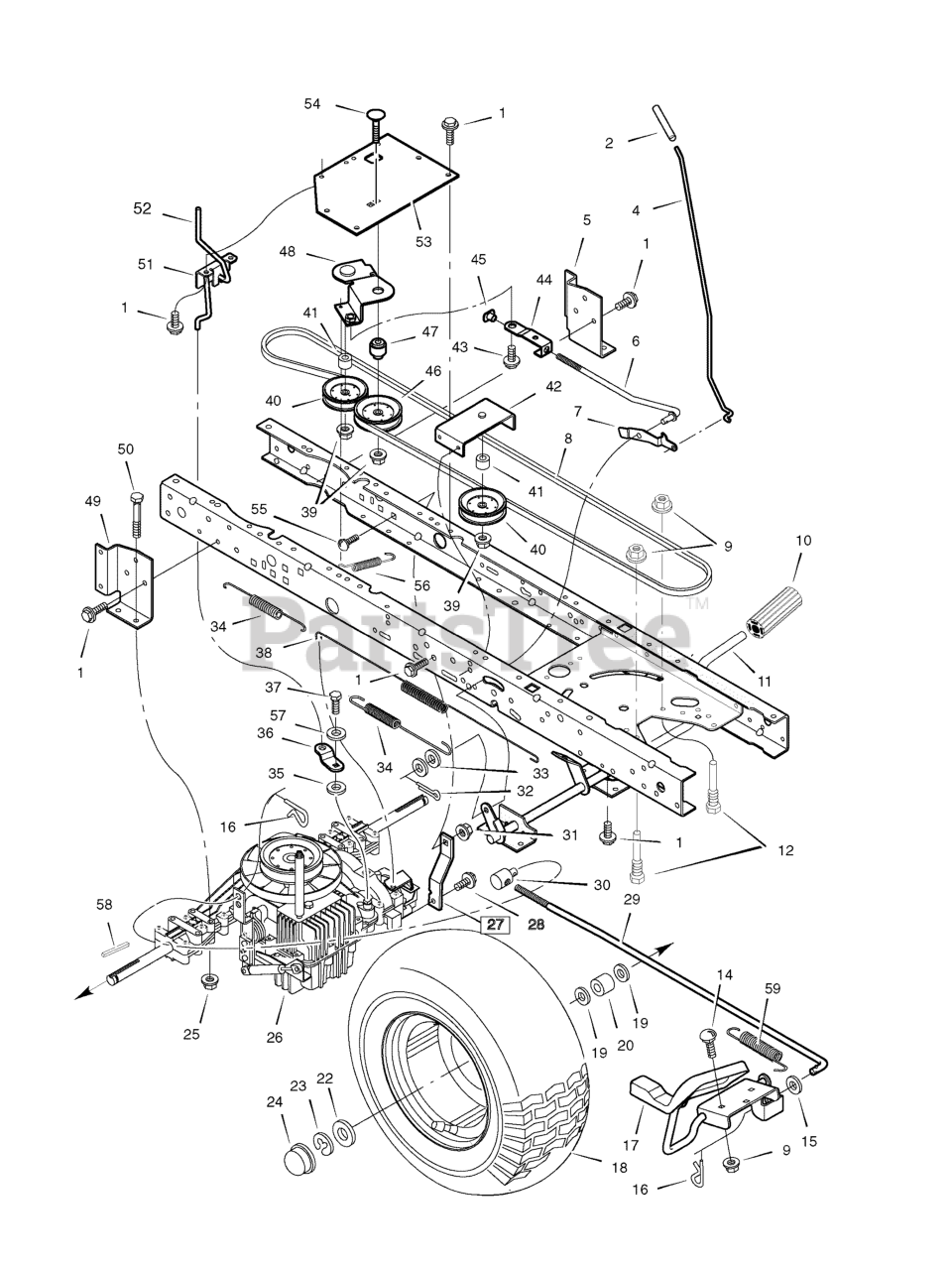

552547 (425624x190A) - Masport 42" Lawn Tractor (2006) Drive Assembly Parts Diagram

42" Lawn Tractor

Drive Assembly Parts Diagram

  • Title

1

Murray 002X78MA

Screw

$3.49

$

Usually ships in 2-12 days

0

2

Murray 091079MA

Grip, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1001271ZMA

Rod, Parking Brake

$4.49

$

Usually ships in 2-12 days

0

5

Murray 094185E701MA

Bracket, Transaxle - Left

$60.99

$

Usually ships in 2-12 days

0

6

Murray 1001013ZMA

Rod, Clutch

$26.99

$

Usually ships in 2-12 days

0

7

Murray 094045ZMA

Latch, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

8

Murray 37X106MA

V-Belt, Drive

$43.99

$

In Stock, only 3 left!

0

9

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 094631MA

Pedal, Brake/Clutch
(Superseded to 1001190E701MA)

$33.99

$

Usually ships in 2-12 days

0

11

Murray 1001190E701MA

Assembly, Brake Pedal

$33.99

$

Usually ships in 2-12 days

0

12

Murray 094384MA

Screw, Guide

$4.49

$

Usually ships in 2-12 days

0

14

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

15

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 1001985E701MA

Pedal Assembly, Hydro

$125.99

$

Usually ships in 2-12 days

0

18

Murray 092300601MA

Wheel & Tire Assembly - Rear 20"
(Superseded to 7101800YP)

$222.99

$

Usually ships in 2-12 days

0

19

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 13

0

20

Murray 690554ZMA

Spacer

$17.99

$

In Stock, only 2 left!

0

22

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

23

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

24

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, Qty 20+

0

25

Murray 015X88MA

Nut, Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

26

Transaxle, Peerless Hydro **

Note: (42)

$

$

Not available

27

Murray 1001085E701MA

Strap, Torque

$10.99

$

Usually ships in 2-12 days

0

28

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

29

Murray 1001234ZMA

Rod, Control

$

$

Not available

30

Murray 092132ZMA

Nut, Adjusting

$14.99

$

Usually ships in 2-12 days

0

31

Murray 015X84MA

Nut, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 017X48MA

Washer

$8.49

$

Usually ships in 2-12 days

0

34

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 3 left!

0

35

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1001086ZMA

Arm, Disconnect

$34.99

$

Usually ships in 2-12 days

0

37

Murray 06X105MA

Capscrew

$3.99

$

In Stock, only 1 left!

0

38

Murray 165X150MA

Spring, Brake

$29.99

$

In Stock, only 1 left!

0

39

Murray 015X98MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, only 4 left!

0

41

Murray 690369MA

Spacer

$5.99

$

In Stock, Qty 6

0

42

Murray 1001097E701MA

Bracket, Idler Assembly

$22.99

$

Usually ships in 2-12 days

0

43

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

44

Murray 1001007ZMA

Link, Clutch

$5.49

$

Usually ships in 2-12 days

0

45

Murray 1001014MA

Nut, Tee

$4.99

$

Usually ships in 2-12 days

0

46

Murray 690410MA

Pulley, Idler

$19.99

$

In Stock, only 1 left!

0

47

Murray 1001012MA

Bushing, Pivot

$9.49

$

Usually ships in 2-12 days

0

48

Murray 1001018ZMA

Arm Assembly, Idler

$

$

Not available

49

Murray 094184E701MA

Bracket, Transaxle -Right

$60.99

$

Usually ships in 2-12 days

0

50

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

51

Murray 1001214ZMA

Bracket, Disconnect

$9.99

$

Usually ships in 2-12 days

0

52

Murray 1001215ZMA

Rod, Disconnect

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001108E701MA

Bracket, Idler Pivot

$24.99

$

Usually ships in 2-12 days

0

54

Murray 002X92MA

Bolt, Carriage

$4.99

$

In Stock, only 4 left!

0

55

Murray 002X78MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

56

Murray 165X155MA

Spring, Clutch

$6.49

$

In Stock, only 3 left!

0

57

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

58

Murray 021553MA

Key, Square

$4.99

$

In Stock, Qty 8

0

59

Murray 165X168MA

Spring

$5.99

$

Usually ships in 2-12 days

0
