552548 (425017x190A) - Masport 42" Lawn Tractor (2006)

42" Lawn Tractor

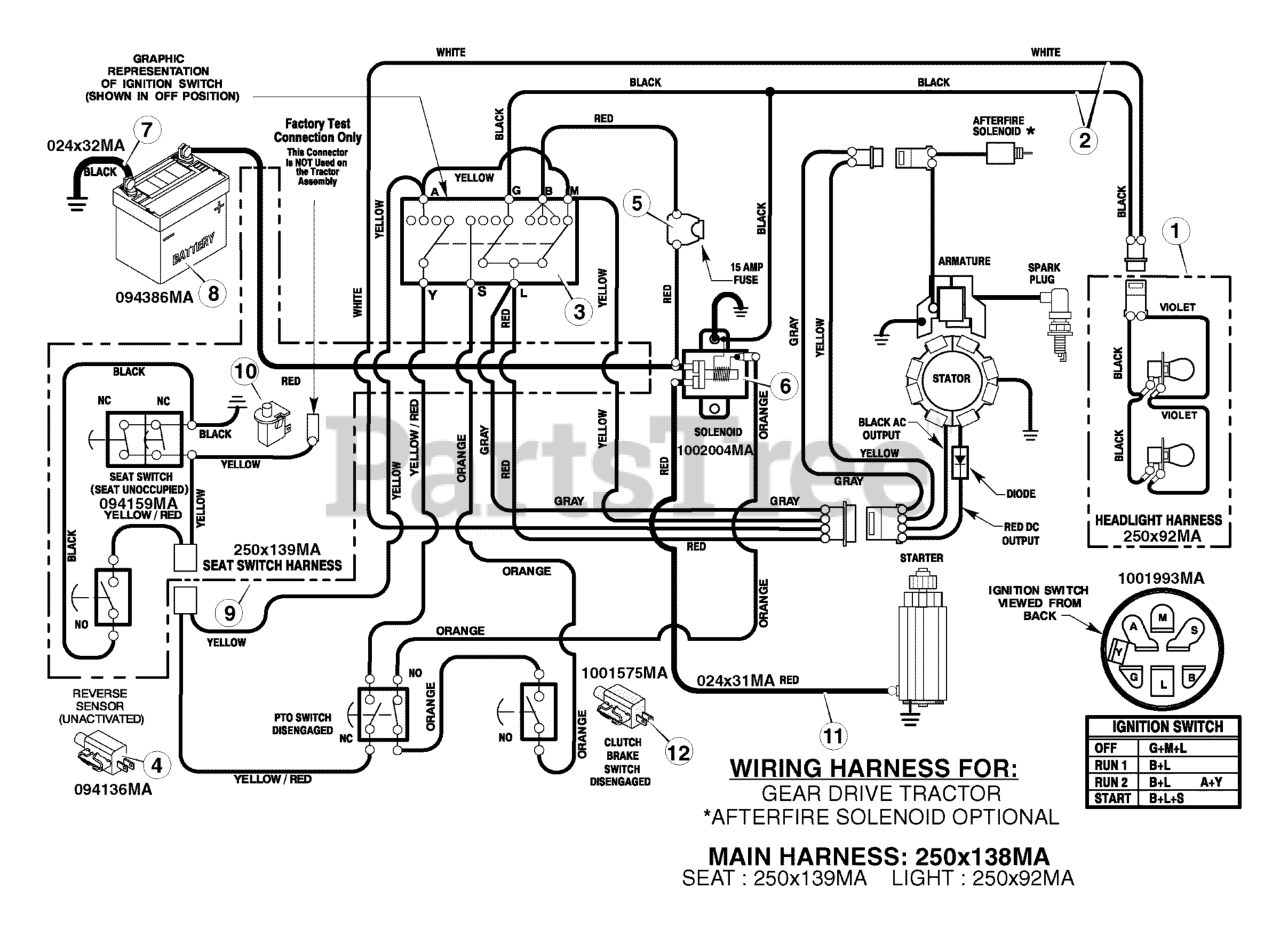

552548 (425017x190A) - Masport 42" Lawn Tractor (2006) > Parts Diagrams (8) > Electrical System

  • Title
250X92MA

1

Harness, Light Wire

Part# 250X92MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.35

092372MA

--

Socket, Light

Part# 092372MA (Superseded to 1001716MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.70

090084MA

--

Bulb, Light

Part# 090084MA (Superseded to 1677371SM)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.47

250X138MA

2

Harness, Chassis Wire

Part# 250X138MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $87.15

1001993MA

3

Switch, Ignition

Part# 1001993MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $32.87

1001304MA

--

Key, Ignition

Part# 1001304MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.24

091489MA

--

Nut, Hex

Part# 091489MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.61

091488MA

--

Cap, Ignition

Part# 091488MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

094136MA

4

Switch, Limit

Part# 094136MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.28

302031MA

5

Fuse

Part# 302031MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.58

407078MA

--

Holder, Fuse

Part# 407078MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.32

1002004MA

6

Solenoid

Part# 1002004MA (Superseded to 7701100MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $21.75

26X229MA

--

Screw, Mounting

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.34

15X116MA

--

Locknut

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

024X32MA

7

Cable, Battery Ground

Part# 024X32MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.32

26X229MA

--

Screw, Ground Cable

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.34

094386MA

8

Battery

Part# 094386MA

OEM Warranty Repair Part for Murray

Not available

002X82MA

--

Bolt, Carriage

Part# 002X82MA (Superseded to 703841)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.12

014X79MA

--

Wingnut

Part# 014X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.79

690604MA

--

BOOT, Battery Terminal, Positive

Part# 690604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.02

250X139MA

9

Harness, Seat Switch Wire

Part# 250X139MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $19.90

094159MA

10

Switch, Seat Sensor

Part# 094159MA (Superseded to 7023354YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.17

024X31MA

11

Cable

Part# 024X31MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.14

1001575MA

12

Switch, Limit

Part# 1001575MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.48
