552548 (425017x190A) - Masport 42" Lawn Tractor (2006) Engine Mount Parts Diagram

42" Lawn Tractor

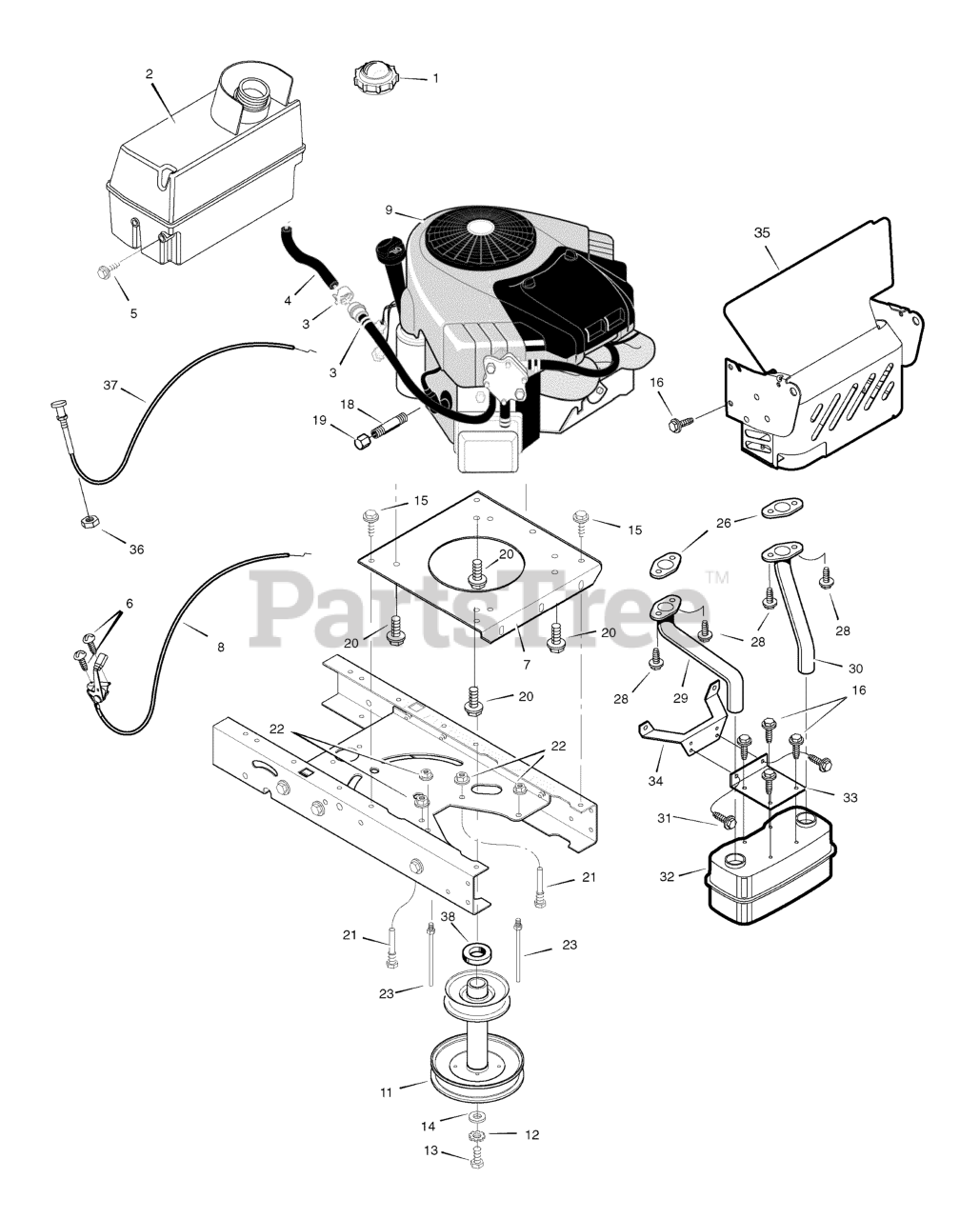

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$11.99

$

In Stock, only 2 left!

0

2

Murray 094086MA

Fuel Tank
(Superseded to 7601093MA)

$181.99

$

In Stock, only 1 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

$23.99

$

Usually ships in 2-12 days

0

5

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E701MA

Plate, Engine

$117.99

$

Usually ships in 2-12 days

0

8

Murray 093165MA

Throttle Control

$41.99

$

Usually ships in 2-12 days

0

9

Engine, Briggs & Stratton *

$

$

Not available

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$68.99

$

In Stock, Qty 5

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 12

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

18

Murray 092279MA

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

19

Murray 021651MA

Cap, Oil Drain
(Superseded to 021651ZMA)

$7.49

$

Usually ships in 2-12 days

0

20

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

23

Murray 094066MA

Guide, Belt

$14.99

$

In Stock, Qty 6

0

26

Murray 711851MA

Gasket, Muffler

$

$

Not available

28

Murray 06X103MA

Screw, Adapter

$6.99

$

Usually ships in 2-12 days

0

29

Murray 690541MA

Tube, Right Exhaust

$

$

Not available

30

Murray 690542MA

Tube, Left Exhaust

$

$

Not available

31

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

32

Murray 093259MA

Muffler

$98.99

$

Usually ships in 2-12 days

0

33

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

34

Murray 690537E701MA

Bracket, Muffler Mount

$78.99

$

Usually ships in 2-12 days

0

35

Murray 1001656E701MA

Shield, Heat

$

$

Not available

36

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

37

Murray 690401MA

Choke

$34.99

$

In Stock, only 3 left!

0

38

Murray 093077MA

Spacer

$16.99

$

In Stock, only 1 left!

0
