55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) ALTERNATOR AND STARTER ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

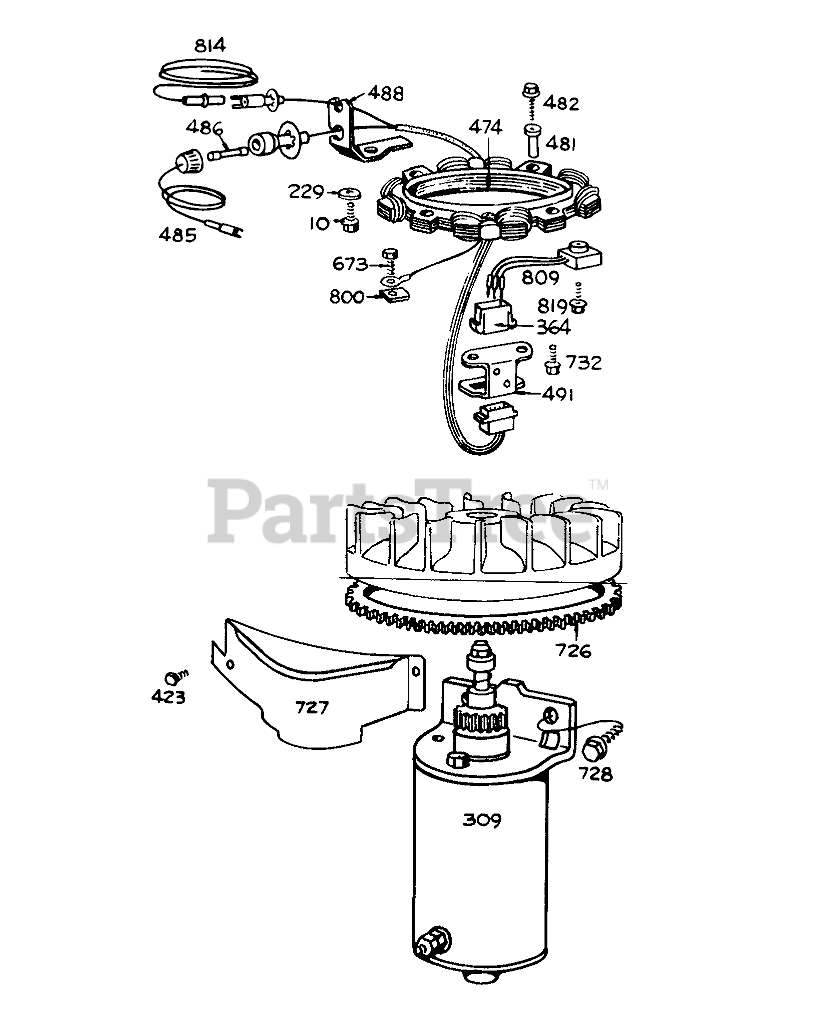

ALTERNATOR AND STARTER ASSEMBLY Parts Diagram

  • Title

American Bosch-Arma No.SMH 12-A11 (on Commutator End Cap)

$

$

Not available

Made in Japan for B & S No. MMO. 5ML (on Main Housing) Replacement Parts for Starting Motor No. 390307 (see list below) Drive Assembly (complete) B & S No. 390443 () B & S No. 299963 () Drive End Cap Assembly w/Bearing and Bracket B & S No. 390944 ()

$

$

Not available

10

Briggs & Stratton 93536

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 390307

Motor-Starting

$168.99

$

Usually ships in 2-12 days

0

364

Briggs & Stratton 280081

Socket-Lead Wire

$5.49

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

474

Toro 390671

Stator-Alternator

$

$

Currently unavailable

481

Briggs & Stratton 230976

Bushing-Stator

$4.49

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

485

Toro 390313

Knob Assy.-Fuse

$

$

Currently unavailable

486

Briggs & Stratton 67125

Fuse 7-1/2Amp.

$2.49

$

Usually ships in 2-12 days

0

488

Briggs & Stratton 222211

Bracket-Fuse

$6.49

$

Usually ships in 2-12 days

0

491

Briggs & Stratton 222115

Bracket-Rectifier

$2.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

673

Briggs & Stratton 93438

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

726

Briggs & Stratton 299543

Gear, Ring (Includes mounting parts)

$204.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 390233

Starter Pinion Cover
(Superseded to 395405)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

732

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

800

Briggs & Stratton 222212

Retainer
(Superseded to 222095)

$4.49

$

Usually ships in 2-12 days

0

809

Briggs & Stratton 390692

Rectifier-Alternator
(Superseded to 390892)

$21.99

$

Usually ships in 2-12 days

0

814

Toro 390610

Wire Assembly

$

$

Currently unavailable

819

Briggs & Stratton 93680

Screw-Sem
(Superseded to 93680GS)

$7.49

$

In Stock, Qty 6

0
