55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) FRAME ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

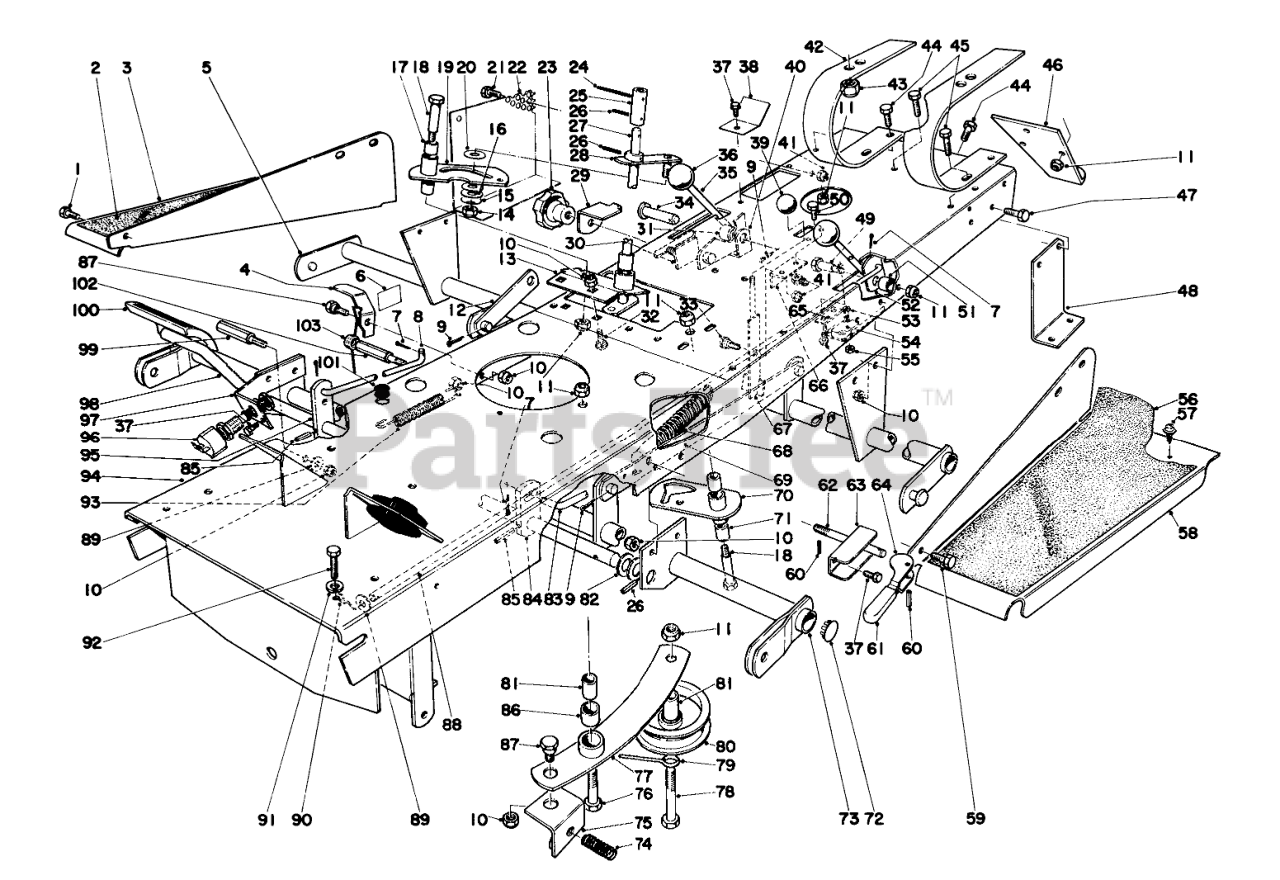

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 7-4128

Pad R. H.

$

$

Not available

3

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

4

Toro 12-8750

Latch

$

$

Currently unavailable

5

Toro 7-5770

Cross Tube

$

$

Currently unavailable

6

Toro 12-4020

Decal Brake

$

$

Currently unavailable

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 7-4185

Link Neutralizer

$

$

Currently unavailable

9

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

11

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

12

Toro 7-4195

Lift Link

$

$

Currently unavailable

13

Toro 7-4166

Bracket-Control

$

$

Currently unavailable

14

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

18

Toro 12-7610

Axle Bolt

$

$

Currently unavailable

19

Toro 7-4164

Cam Plate (Incl. Ref. #17)

$

$

Currently unavailable

20

Toro 7-4182

Washer

$

$

Currently unavailable

21

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 7-4460

Fan Guide Side

$

$

Currently unavailable

23

Toro 7-3902

Knob

$

$

Not available

24

Toro 32121-82

Roll Pin

$

$

Currently unavailable

25

Toro 74181

Sleeve Handle

$

$

Currently unavailable

26

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

27

Toro 7-4172

Handle Hydro Control

$

$

Currently unavailable

28

Toro 7-4160

Control Crank

$

$

Currently unavailable

29

Toro 7-4098

Slide

$

$

Not available

30

Toro 17-1170

Knob Plate

$

$

Not available

31

Toro 7-4237

Spacer

$

$

Currently unavailable

32

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Toro 7-7850

Shoulder Bolt

$

$

Currently unavailable

34

Toro 7-4265

Pin

$

$

Currently unavailable

35

Toro 7-4076

Lever

$

$

Currently unavailable

36

Toro 233-24

Knob
(Superseded to 233-48)

$12.99

$

Usually ships in 3-6 days

0

37

Toro 32140-32

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

38

Toro 7-5900

Shield Fan

$

$

Currently unavailable

39

Toro 233-17

KNOB

$12.99

$

Usually ships in 3-6 days

0

40

Toro 7-4245

Support Height of Cut Lever

$

$

Currently unavailable

41

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

42

Toro 7-7620

Seat Spring

$

$

Not available

43

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

44

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

45

Toro 3235-1

Capscrew

$

$

Currently unavailable

46

Toro 7-4032

Hitch

$

$

Currently unavailable

47

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

48

Toro 7-4187

Axle Support L.H.

$

$

Currently unavailable

Toro 7-4470

Axle Support R.H.

Note: Not illustrated

$

$

Currently unavailable

49

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

50

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

51

Toro 7-4070

Spacer

$

$

Currently unavailable

52

Toro 7-4073

Lever

$

$

Currently unavailable

53

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

54

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

55

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

56

Toro 7-4130

Pad Left

$

$

Not available

57

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

58

Toro 7-4034

Footrest

$

$

Currently unavailable

59

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

60

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

61

Toro 7-6560

Handle Grip

$

$

Currently unavailable

62

Toro 7-6540

Adjustment Rod

$

$

Currently unavailable

63

Toro 7-5850

Retainer Idler

$

$

Currently unavailable

64

Toro 7-5780

Idler Crank

$

$

Currently unavailable

65

Toro 12-6880

Bracket Switch

$

$

Currently unavailable

66

Toro 7-7840

Bracket Pivot

$

$

Currently unavailable

67

Toro 7-7800

Drive Lever

$

$

Currently unavailable

68

Toro 7-4292

Spring Counterbalance

$

$

Not available

69

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

70

Toro 7-4170

Plate Neutralizer (Incl. Ref. #71)

$

$

Currently unavailable

71

Toro 256-172

BUSHING

$5.99

$

Usually ships in 3-6 days

0

72

Toro 2410-26

Plug Button

$

$

Currently unavailable

73

Toro 7-4022

Cross Tube Front

$

$

Currently unavailable

74

Toro 7-5840

Compression Spring

$

$

Currently unavailable

75

Toro 7-5860

Swivel Bracket

$

$

Currently unavailable

76

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

77

Toro 7-5830

Idler Bracket (Incl. Ref. #86)

$

$

Currently unavailable

78

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 12

0

79

Toro 7-6530

Belt Retainer

$

$

Currently unavailable

80

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 2 left!

0

81

Toro 7-6550

Idler Spacer

$

$

Currently unavailable

82

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

83

Toro 7-4277

Brake Rod Front

$

$

Currently unavailable

84

Toro 7-4278

Lever Brake

$

$

Currently unavailable

85

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

86

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

87

Toro 12-1450

Screw

$

$

Currently unavailable

88

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

89

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

90

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

91

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

92

Toro 32104-28

He Ha. Screw

$

$

Not available

93

Toro 7-4291

Spring

$

$

Not available

94

Toro 12-3920

Frame

$

$

Currently unavailable

95

Toro 7-4183

Pedal Crank Neutralizer

$

$

Currently unavailable

96

Toro 12-6770

Neutral Switch

$

$

Not available

97

Toro 12-8420

Bracket Switch

$

$

Currently unavailable

98

Toro 12-6850

Pedal

$

$

Currently unavailable

99

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

100

Toro 7-3900

PAD-BRAKE

$31.99

$

In Stock, only 3 left!

0

101

Toro 237-62

GROMMET

$

$

Currently unavailable

102

Toro 7-4590

Brake Stop

$

$

Currently unavailable

103

Toro 17-1030

Spring-Brake Latch

$

$

Currently unavailable
