55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) Model No. 390811 Carburetor Assembly (for Engine 190707-0626) Parts Diagram

Toromatic Lawn Tractor

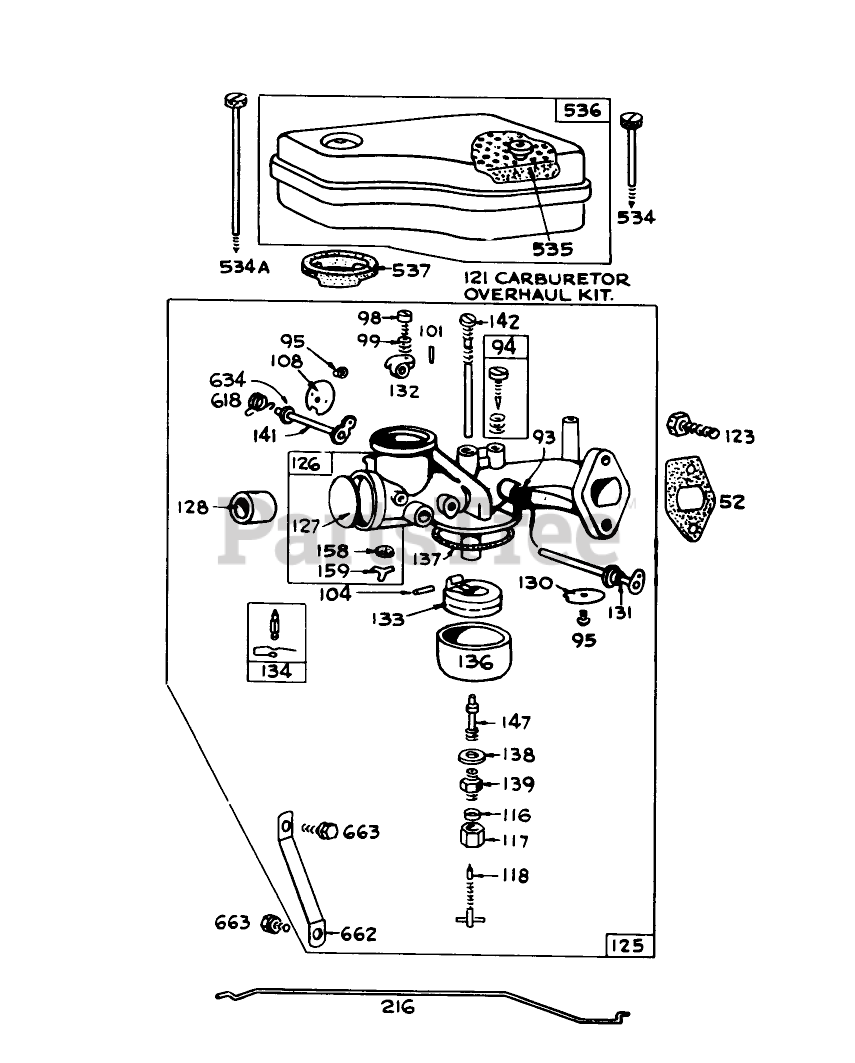

Model No. 390811 Carburetor Assembly (for Engine 190707-0626) Parts Diagram

  • Title

52

?270538 Gasket-Carburetor Mounting

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

93

Toro 23108

Bushing-Throttle Shaft

$

$

Currently unavailable

94

?292681 Valve Assembly-Carburetor Idle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

95

Toro 93038

Screw, Throttle Valve Mtg. Sem

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

104

?230896 Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

108

Toro 222010

Valve

$

$

Currently unavailable

116

?68677 Packing-Needle Valve

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

117

?23118 Nut-Needle Valve Packing

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

118

?299762 Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

121

Toro 299852

Carburetor OverhauI Kit

$

$

Currently unavailable

123

Toro 93357

Screw

$

$

Currently unavailable

125

Toro 390811

Carburetor Assembly

$

$

Currently unavailable

126

Toro 390812

Body Assy.-Lower Carb.

$

$

Currently unavailable

127

Toro 221997

Plug

$

$

Currently unavailable

128

Toro 211682

Venturi-Carburetor

$

$

Not available

130

Toro 221986

Valve-Throltle

$

$

Currently unavailable

131

Toro 299650

Shaft Lever, Throttle

$

$

Currently unavailable

132

Toro 211712

Stop-Thottle

$

$

Currently unavailable

133

Toro 299707

Float-Carburetor

$

$

Currently unavailable

134

?299096 Valve-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

136

Toro 221995

Bowl-Float

$

$

Currently unavailable

137

?270511 Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

138

?222014 Washer-Float Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

139

?230935 Retainer-Jet Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

141

Toro 390684

Shaft and Lever

$

$

Currently unavailable

142

?299740 Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

147

?230932 Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

158

Toro 27590

Filter-Carburetor Drain

$

$

Currently unavailable

159

Toro 220521

Retainer, Carb. Drain Filter

$

$

Not available

216

Toro 261117

Link-Choke

$

$

Currently unavailable

534

Toro 93323

Screw-AirCleaner

$

$

Currently unavailable

534A

Toro 93622

Screw Air Cleaner

$

$

Currently unavailable

535

Toro 270528

Element-Air Cleaner

$

$

Currently unavailable

536

Toro 390379

Cleaner Assy.-Air

$

$

Currently unavailable

537

Toro 270539

Gasket-Air Cleaner

$

$

Currently unavailable

618

Toro 261116

Spring Choke

$

$

Currently unavailable

634

Toro 270382

Washer

$

$

Currently unavailable

662

Toro 222027

Bracket-Carburetor

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable
