55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) REAR TIRE AND FENDER ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

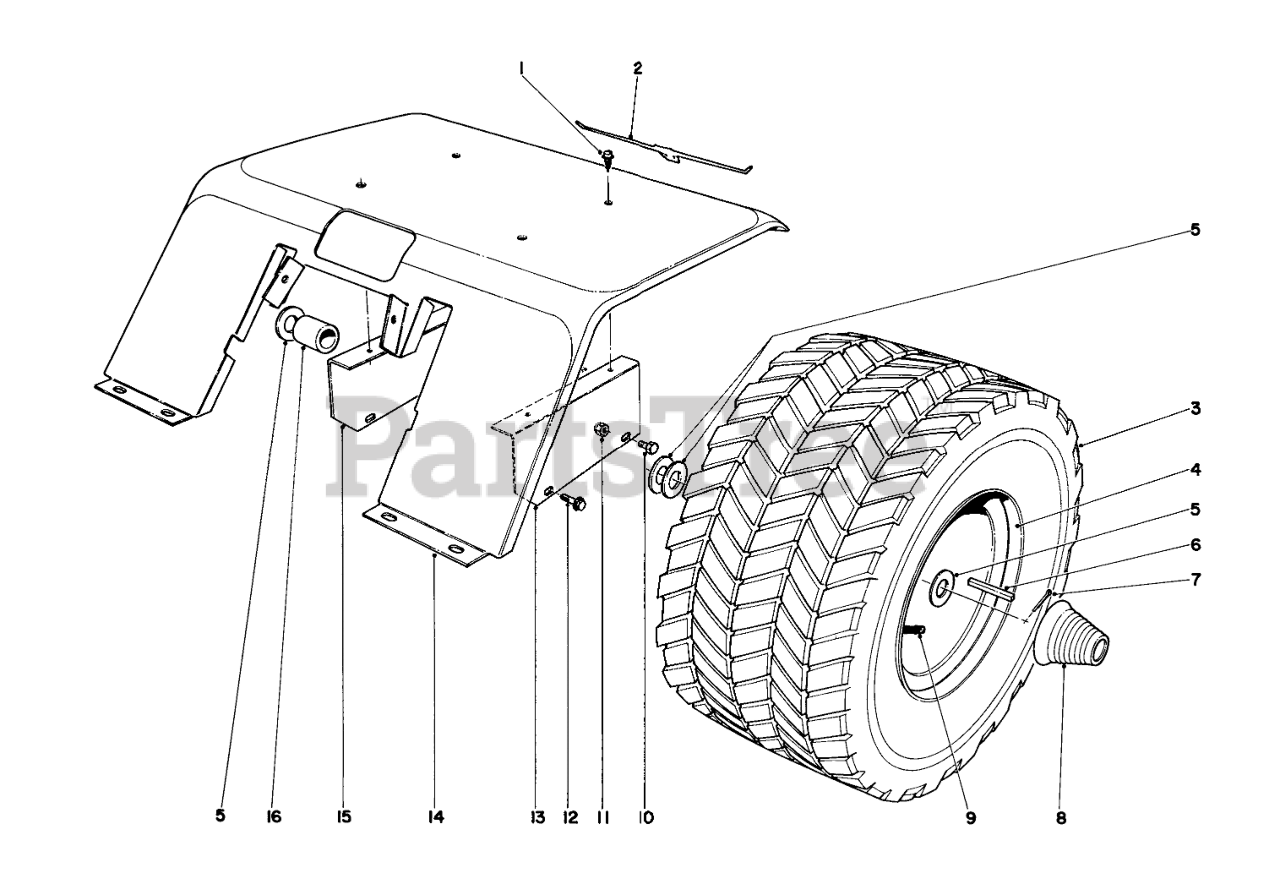

REAR TIRE AND FENDER ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

2

Toro 7-8050

Decal

$

$

Currently unavailable

3

Toro 231-57

Tire

$

$

Currently unavailable

Toro 231-66

Turf King Tire

Note: Not illustrated

$

$

Currently unavailable

4

Toro 217-94

Rim

$

$

Currently unavailable

5

Toro 7-4198

Washer

$

$

Not available

6

Toro 5-1718

KEY-CLUTCH

$

$

Not available

7

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 7-4116

Hub Cap

$

$

Currently unavailable

9

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$6.99

$

In Stock, Qty 12

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

12

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

13

Toro 7-4118

Fender Support R.H.

$

$

Currently unavailable

14

Toro 12-8990

Fender

$

$

Currently unavailable

15

Toro 7-4120

Fender Support L.H.

$

$

Not available

16

Toro 7-4197

Spacer

$

$

Currently unavailable
