553 RBX - Husqvarna Brush Cutter (2012-08) CARBURETOR AIR FILTER Parts Diagram

Brush Cutter

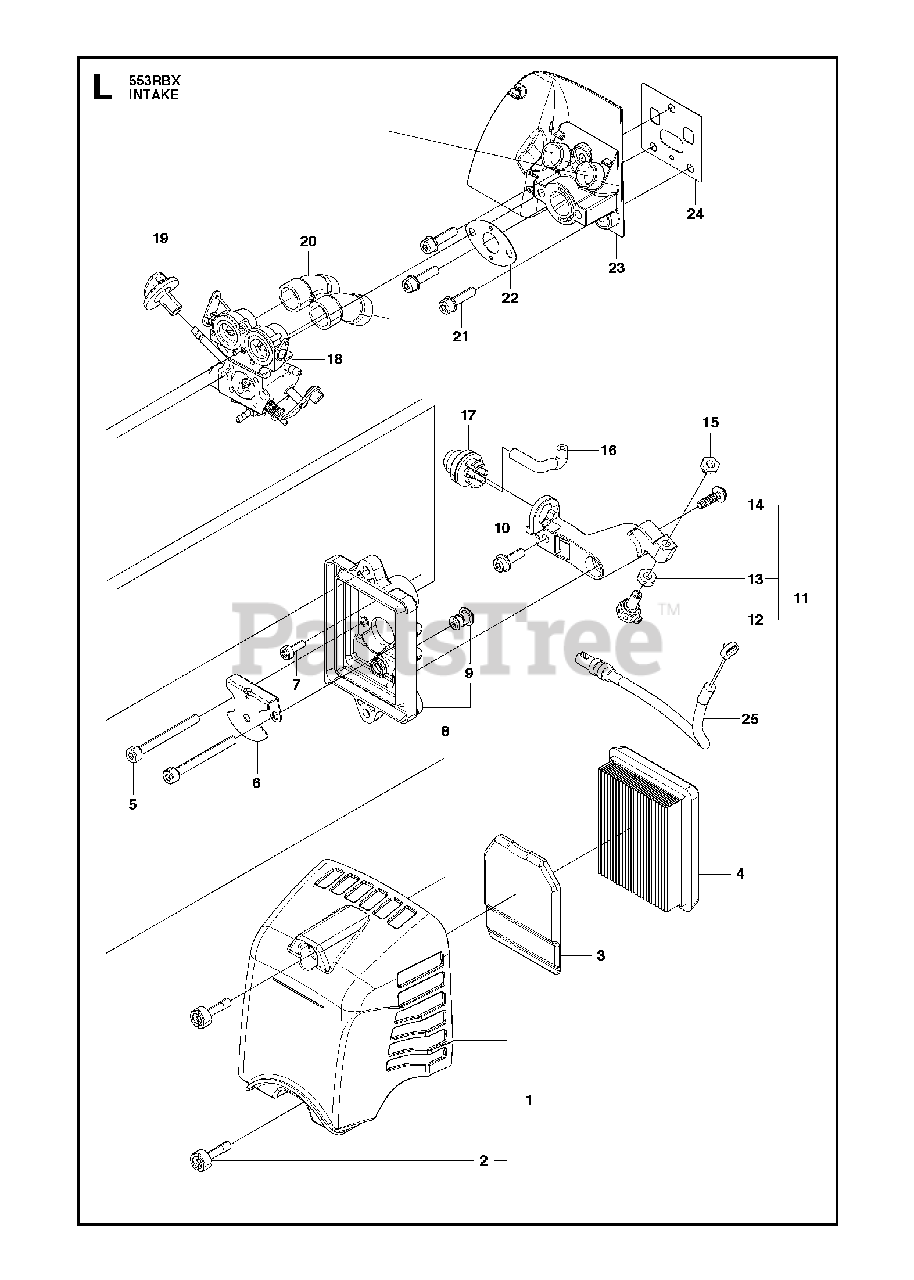

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Husqvarna 525418301

$

$

Currently unavailable

2

Husqvarna 521515401

SCREW

Note: . 1

$

$

Not available

3

Husqvarna 521625701

$

$

Currently unavailable

4

Husqvarna 521642101

ELEMENT

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506616301

BOLT TORX M5XL50 T27
(Superseded to 521345501)

$4.99

$

In Stock, Qty 10

0

6

Husqvarna 521834401

PLATE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521515701

BOLT M4 X 12 T27

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 521625401

$

$

Not available

9

Husqvarna 521625601

GROMMET

Note: . 8

$

$

Not available

10

Husqvarna 521347901

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 521641201

BRACKET ASSY

$

$

Not available

12

Husqvarna 505308201

SCREW CABLE ADJUST

Note: . 11

$29.99

$

Usually ships in 3-10 days

0

13

Husqvarna 516117901

NUT,CABLE ADJ(RPLS175181180
(Superseded to 510487401)

Note: . 11

$4.99

$

In Stock, only 3 left!

0

14

Husqvarna 521517901

SCREW

Note: . 11

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 521625301

STOPPER
(Superseded to 511440801)

$

$

Not available

16

Husqvarna 521523501

TUBE

$

$

Not available

17

Husqvarna 505045801

$

$

Not available

18

Husqvarna 574184501

$

$

Currently unavailable

19

Husqvarna 521641701

KNOB

$

$

Not available

20

Husqvarna 521641501

PIPE

$

$

Not available

21

Husqvarna 505040401

BOLT, TORX

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 521635201

GASKET

$

$

Not available

23

Husqvarna 521634801

INSULATOR

$

$

Not available

24

Husqvarna 521635001

GASKET

$

$

Not available

25

Husqvarna 521528401

$

$

Currently unavailable
