55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

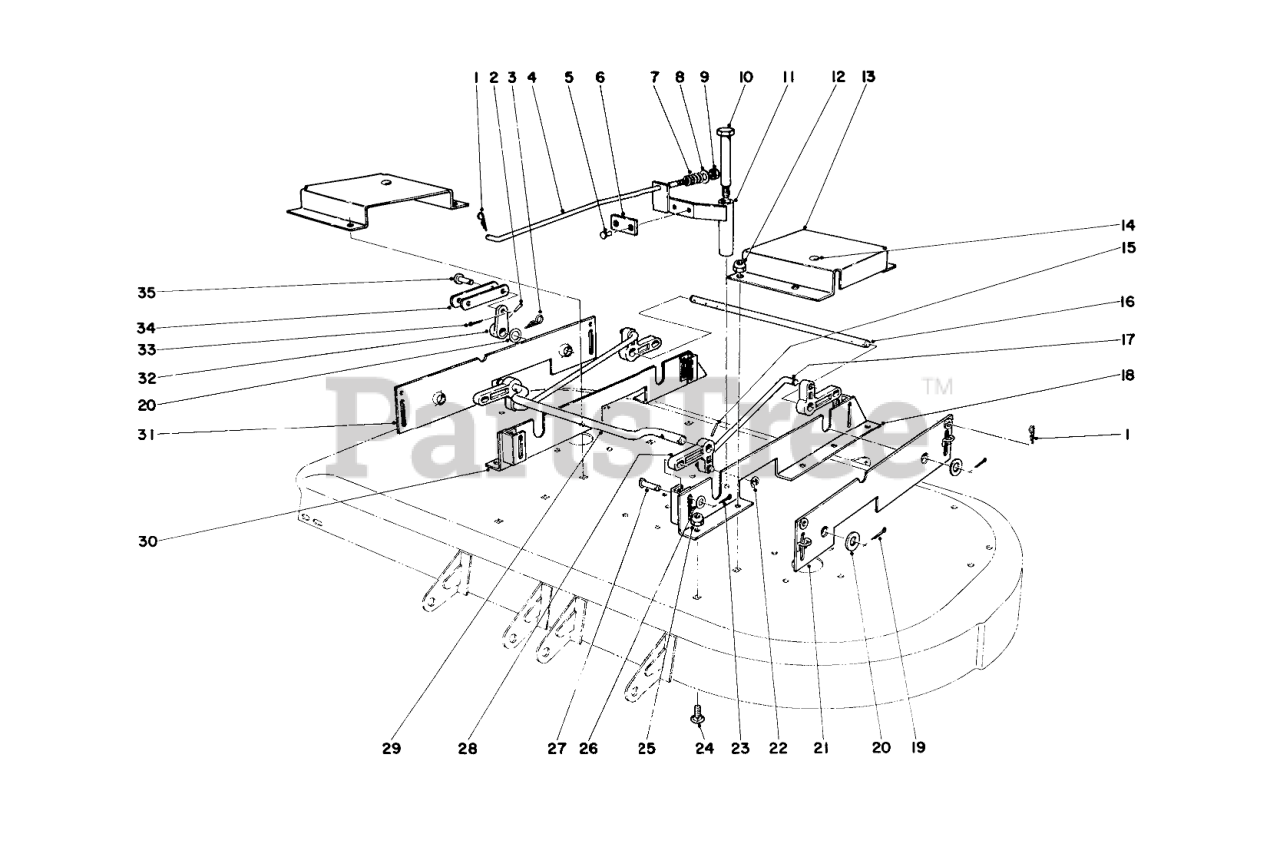

55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > 42" MOWER DECK LINKAGE ASSEMBLY (OPTIONAL)

  • Title
3290-255

1

PIN-COTTER, HAIR

Part# 3290-255

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.97

32121-75

2

Pin Drive

Part# 32121-75

OEM Warranty Repair Part for Toro

Currently unavailable

3290-290

3

HAIRPIN COTTER

Part# 3290-290

OEM Warranty Repair Part for Toro

Not available

7-0631

4

Brake Rod

Part# 7-0631

OEM Warranty Repair Part for Toro

Currently unavailable

3290-287

5

Rivet

Part# 3290-287

OEM Warranty Repair Part for Toro

Not available

7-0643

6

BLADE BRAKE LINING

Part# 7-0643

OEM Warranty Repair Part for Toro

Not available

7-0514

7

Spring

Part# 7-0514

OEM Warranty Repair Part for Toro

Not available

7-0533

8

Washer

Part# 7-0533

OEM Warranty Repair Part for Toro

Currently unavailable

32152-4

9

NUT-LOCK, CONE

Part# 32152-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

7-0647

10

Shoulder Bolt

Part# 7-0647

OEM Warranty Repair Part for Toro

Currently unavailable

7-0642

11

a. Bracket

Part# 7-0642

OEM Warranty Repair Part for Toro

Currently unavailable

32152-1

12

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-0622

13

Cover

Part# 7-0622

OEM Warranty Repair Part for Toro

Currently unavailable

2410-23

14

Plug Button

Part# 2410-23

OEM Warranty Repair Part for Toro

Not available

32121-71

15

PIN-SPRING

Part# 32121-71

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.82

7-0611

16

Rear Pivot Shaft

Part# 7-0611

OEM Warranty Repair Part for Toro

Currently unavailable

7-0608

17

Lift Link

Part# 7-0608

OEM Warranty Repair Part for Toro

Not available

7-0584

18

Bracket Assy. Lower

Part# 7-0584

OEM Warranty Repair Part for Toro

Not available

3272-11

19

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

7-0131

20

Washer

Part# 7-0131 (Superseded to 3256-27)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

7-0607

21

Mower Plate Housing

Part# 7-0607

OEM Warranty Repair Part for Toro

Not available

32120-35

22

RING-RETAINING, EXT

Part# 32120-35

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.11

3272-11

23

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

7-0250

24

Screw

Part# 7-0250 (Superseded to 26-0430)

OEM Warranty Repair Part for Toro

Not available

32152-1

25

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-0052

26

Washer

Part# 7-0052 (Superseded to 3256-24)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

7-0586

27

Lift Pin

Part# 7-0586

OEM Warranty Repair Part for Toro

Not available

7-0265

28

Bell Crank

Part# 7-0265

OEM Warranty Repair Part for Toro

Not available

7-0610

29

Front Pivot Shaft

Part# 7-0610

OEM Warranty Repair Part for Toro

Not available

7-0583

30

Bracket Assy. Lower

Part# 7-0583

OEM Warranty Repair Part for Toro

Not available

7-0606

31

Mower Plate Housing

Part# 7-0606

OEM Warranty Repair Part for Toro

Not available

7-0612

32

Lever

Part# 7-0612

OEM Warranty Repair Part for Toro

Currently unavailable

3272-7

33

PIN-COTTER

Part# 3272-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.28

7-0591

34

Adjusting Link

Part# 7-0591

OEM Warranty Repair Part for Toro

Currently unavailable

7-0511

35

Pin

Part# 7-0511 (Superseded to 283-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.22
