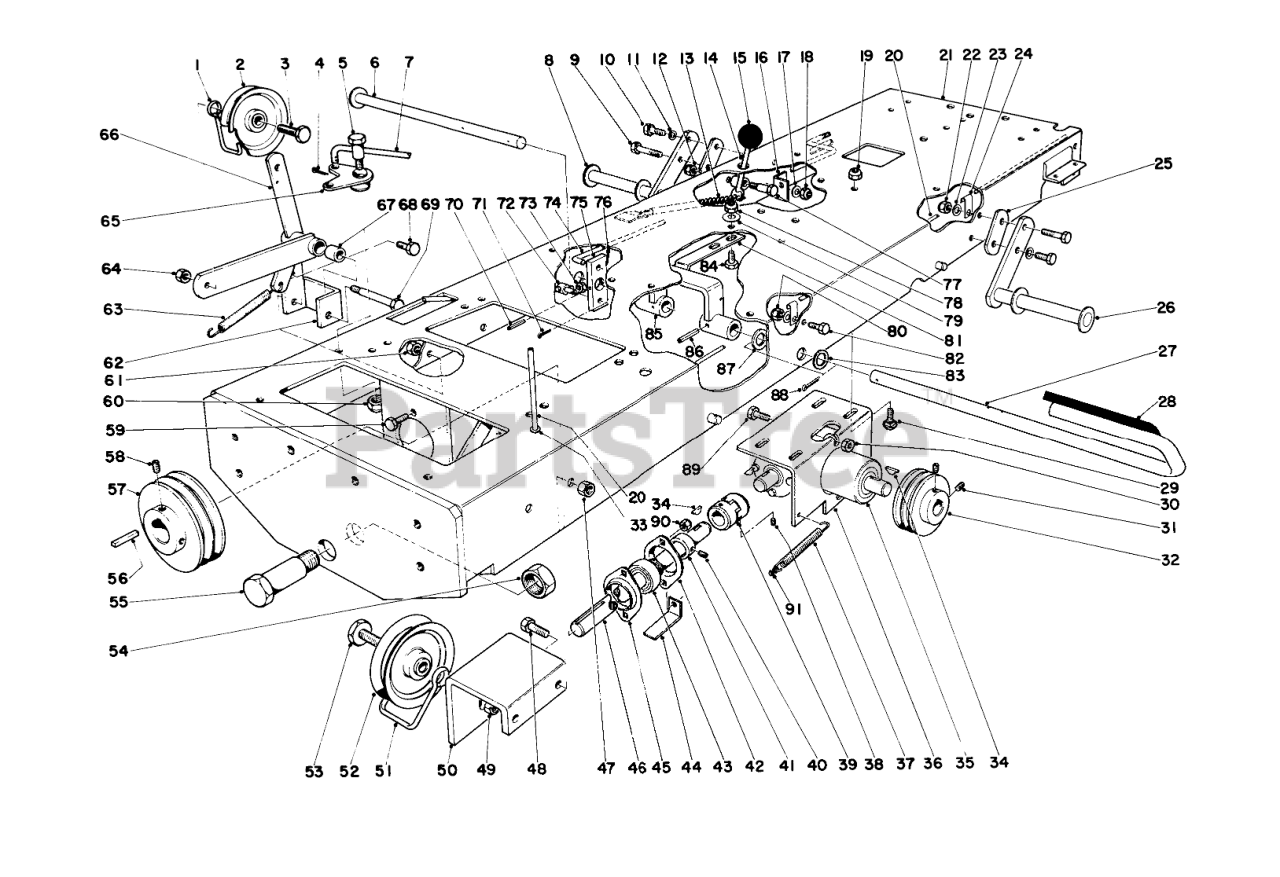

55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > CHASSIS ASSEMBLY

  • Title
7-0432

1

Belt Retainer

Part# 7-0432

OEM Warranty Repair Part for Toro

Not available

7-0431

2

IDLER PULLEY

Part# 7-0431

OEM Warranty Repair Part for Toro

Not available

32141-84

3

3/8-16 X 1-1/2 BOLT

Part# 32141-84

OEM Warranty Repair Part for Toro

Not available

3272-5

4

PIN-COTTER

Part# 3272-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

7-0135

5

Bolt

Part# 7-0135

OEM Warranty Repair Part for Toro

Not available

7-0381

6

Brake Shaft

Part# 7-0381

OEM Warranty Repair Part for Toro

Currently unavailable

7-3842

7

Idler Rod

Part# 7-3842

OEM Warranty Repair Part for Toro

Not available

7-3591

8

Bracket Foot Rest

Part# 7-3591

OEM Warranty Repair Part for Toro

Currently unavailable

323-8

9

SCREW-HH

Part# 323-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

323-6

10

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.97

3253-21

11

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

32152-1

12

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-0582

13

IDLER ARM SPRING

Part# 7-0582

OEM Warranty Repair Part for Toro

Not available

7-3813

14

Brake Lock

Part# 7-3813

OEM Warranty Repair Part for Toro

Currently unavailable

233-22

15

KNOB-CONTROL

Part# 233-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.38

7-3811

16

Brake Rod Retainer

Part# 7-3811

OEM Warranty Repair Part for Toro

Currently unavailable

3256-24

17

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

32152-2

18

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

32152-1

19

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-3843

20

Gas Line

Part# 7-3843

OEM Warranty Repair Part for Toro

Currently unavailable

7-3845

21

Chassis 950

Part# 7-3845

OEM Warranty Repair Part for Toro

Currently unavailable

32152-2

22

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

3256-24

23

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

7-0077

24

Clip

Part# 7-0077

OEM Warranty Repair Part for Toro

Not available

7-3288

25

Spacer Foot Rest

Part# 7-3288

OEM Warranty Repair Part for Toro

Currently unavailable

7-3274

26

Bracket Foot Rest

Part# 7-3274

OEM Warranty Repair Part for Toro

Currently unavailable

7-3837

27

Brake Crank Arm

Part# 7-3837

OEM Warranty Repair Part for Toro

Currently unavailable

7-3900

28

PAD-BRAKE

Part# 7-3900

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.94

3230-1

29

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

32152-2

30

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

3246-4

31

SCREW-SET

Part# 3246-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.85

7-0392

32

Pulley Drive

Part# 7-0392

OEM Warranty Repair Part for Toro

Currently unavailable

256-195

33

NYLINER #7L2FF TYPE 7

Part# 256-195

OEM Warranty Repair Part for Toro

Not available

3257-23

34

KEY-WOODRUFF

Part# 3257-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.10

7-0424

35

Gear Box

Part# 7-0424

OEM Warranty Repair Part for Toro

Currently unavailable

7-0423

36

Bracket Right Angle Gear Box

Part# 7-0423

OEM Warranty Repair Part for Toro

Currently unavailable

7-0393

37

Spring

Part# 7-0393

OEM Warranty Repair Part for Toro

Not available

3245-7

38

SCREW-SET

Part# 3245-7

OEM Warranty Repair Part for Toro

Currently unavailable

7-6850

39

Coupling

Part# 7-6850

OEM Warranty Repair Part for Toro

Not available

3245-1

40

SCREW-SET, HSH

Part# 3245-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.23

7-3096

41

Collar

Part# 7-3096

OEM Warranty Repair Part for Toro

Currently unavailable

7-3095

42

Bearing Flange

Part# 7-3095

OEM Warranty Repair Part for Toro

Currently unavailable

7-3094

43

Bearing

Part# 7-3094

OEM Warranty Repair Part for Toro

Currently unavailable

7-0372

44

Belt Guide

Part# 7-0372

OEM Warranty Repair Part for Toro

Currently unavailable

251-208

45

Bearing Incl. Ref. 41-43

Part# 251-208

OEM Warranty Repair Part for Toro

Currently unavailable

7-6840

46

Drive Shaft

Part# 7-6840

OEM Warranty Repair Part for Toro

Not available

32152-1

47

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

322-3

48

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

32153-2

49

NUT-LOCK, SIDE

Part# 32153-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

7-0430

50

Idler Bracket

Part# 7-0430

OEM Warranty Repair Part for Toro

Currently unavailable

7-0432

51

Belt Retainer

Part# 7-0432

OEM Warranty Repair Part for Toro

Not available

7-0431

52

IDLER PULLEY

Part# 7-0431

OEM Warranty Repair Part for Toro

Not available

32141-84

53

3/8-16 X 1-1/2 BOLT

Part# 32141-84

OEM Warranty Repair Part for Toro

Not available

32152-6

54

NUT-LOCK, CONE

Part# 32152-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

7-0371

55

Pivot Bolt

Part# 7-0371

OEM Warranty Repair Part for Toro

Not available

5-1865

56

KEY

Part# 5-1865

OEM Warranty Repair Part for Toro

Not available

7-0392

57

Pulley Drive

Part# 7-0392

OEM Warranty Repair Part for Toro

Currently unavailable

3246-2

58

SCREW-SET, HSH

Part# 3246-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

3224

59

Screw

Part# 3224

OEM Warranty Repair Part for Toro

Currently unavailable

3218-2

60

NUT-JAM

Part# 3218-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.32

32152-2

61

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-0375

62

Mounting Bracket Idler

Part# 7-0375

OEM Warranty Repair Part for Toro

Currently unavailable

7-0393

63

Spring

Part# 7-0393

OEM Warranty Repair Part for Toro

Not available

32153-2

64

NUT-LOCK, SIDE

Part# 32153-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

7-0385

65

Bell Crank

Part# 7-0385

OEM Warranty Repair Part for Toro

Not available

7-0434

66

Idler Arm Incl. Ref. No. 67

Part# 7-0434

OEM Warranty Repair Part for Toro

Currently unavailable

256-171

67

Bushing

Part# 256-171

OEM Warranty Repair Part for Toro

Currently unavailable

3234

68

Capscrew

Part# 3234

OEM Warranty Repair Part for Toro

Currently unavailable

7-0377

69

Shoulder Bolt

Part# 7-0377

OEM Warranty Repair Part for Toro

Currently unavailable

32121-71

70

PIN-SPRING

Part# 32121-71

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.82

3272-5

71

PIN-COTTER

Part# 3272-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

7-0388

72

Pivot Clutch Rod

Part# 7-0388

OEM Warranty Repair Part for Toro

Currently unavailable

321524

73

Nut

Part# 321524

OEM Warranty Repair Part for Toro

Currently unavailable

7-3808

74

Brake Rod

Part# 7-3808

OEM Warranty Repair Part for Toro

Currently unavailable

7-0382

75

Bracket Idler

Part# 7-0382

OEM Warranty Repair Part for Toro

Currently unavailable

3272-7

76

PIN-COTTER

Part# 3272-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.28

7-0135

77

Bolt

Part# 7-0135

OEM Warranty Repair Part for Toro

Not available

32152-1

78

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

3256-3

79

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

32152-1

80

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-0395

81

Stop Brake Pedal

Part# 7-0395

OEM Warranty Repair Part for Toro

Currently unavailable

322-3

82

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

7-0691

83

Washer

Part# 7-0691

OEM Warranty Repair Part for Toro

Currently unavailable

3224

84

Screw

Part# 3224

OEM Warranty Repair Part for Toro

Currently unavailable

7-0383

85

Bracket Assy.

Part# 7-0383

OEM Warranty Repair Part for Toro

Currently unavailable

32121-71

86

PIN-SPRING

Part# 32121-71

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.82

7-0126

87

Washer

Part# 7-0126

OEM Warranty Repair Part for Toro

Not available

3272-7

88

PIN-COTTER

Part# 3272-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.28

323-7

89

SCREW-HH

Part# 323-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.29

32152-1

90

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

7-3993

Chassis 960

Part# 7-3993

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable

7-1050

91

S-Hook

Part# 7-1050

OEM Warranty Repair Part for Toro

Currently unavailable
