55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) ENGINE ASSEMBLY Parts Diagram

Suburban Lawn Tractor

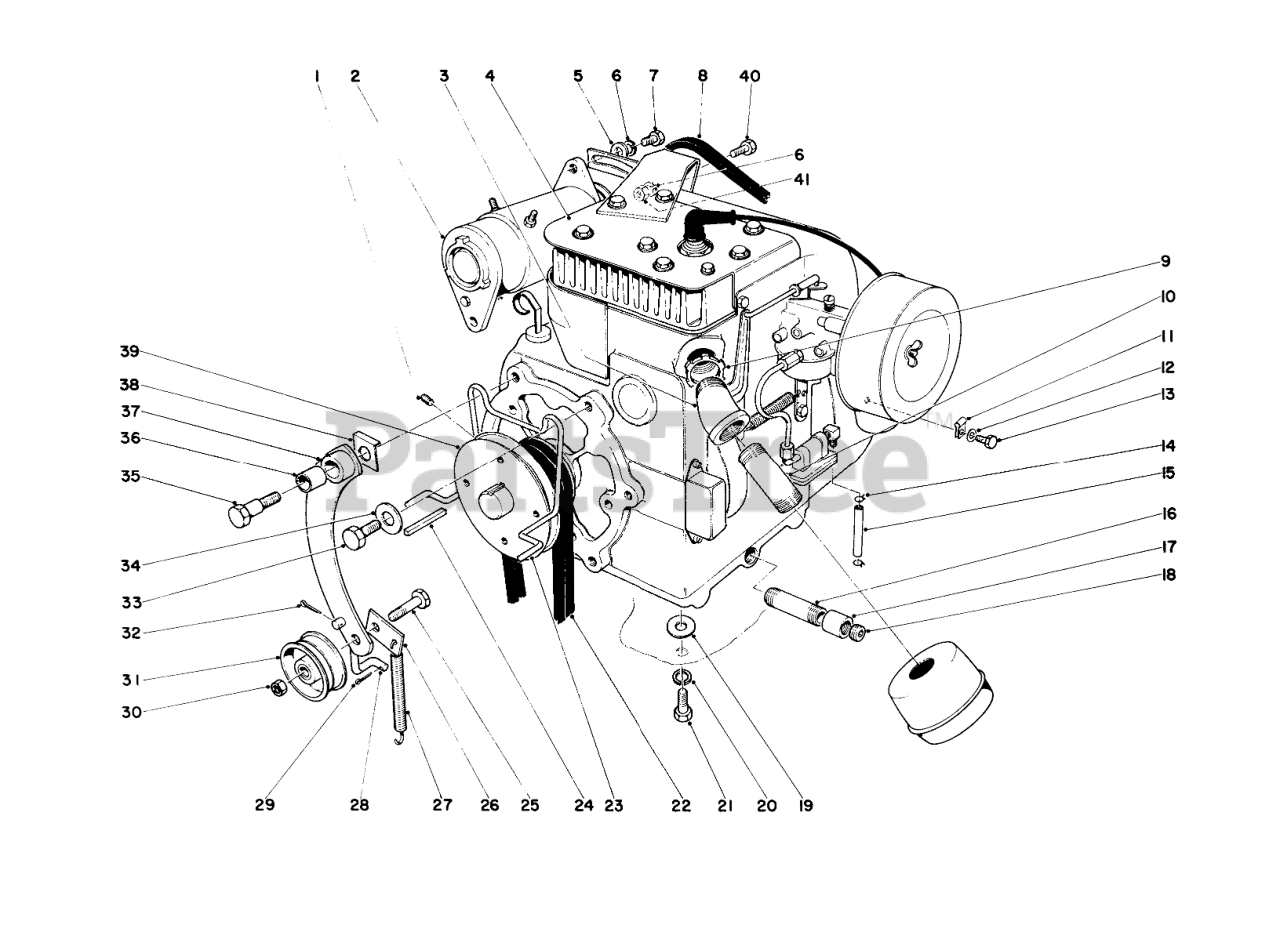

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

2

Toro 218-336

Generator

$

$

Currently unavailable

3

Toro 2811-11

Street Elbow

$

$

Not available

4

Toro 221-277

Engine 950

$

$

Currently unavailable

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 7-0530

Belt, Starter Generator

$

$

Not available

9

Toro 3290-163

Locknut

$

$

Not available

10

Toro 289-28

Pipe Nipple

$

$

Currently unavailable

11

Toro 7-2486

Cable Clamp

$

$

Currently unavailable

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

15

Toro 7-2700

Gas Hose

$

$

Currently unavailable

16

Toro 289-22

Nipple

$

$

Currently unavailable

17

Toro 2810-3

Coupling

$

$

Currently unavailable

18

Toro 285-3

Pipe Plug

$

$

Currently unavailable

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

21

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 7-0550

V-BELT MATCHED SET

$

$

Not available

23

Toro 7-0454

Belt Guide

$

$

Not available

24

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

25

Toro 32141-84

3/8-16 X 1-1/2 BOLT

$

$

Not available

26

Toro 7-3815

Spring Tab

$

$

Currently unavailable

27

Toro 7-0141

Spring

$

$

Not available

28

Toro 7-3838

Idler Rod

$

$

Currently unavailable

29

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

30

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

31

Toro 7-0448

Idler Pulley
(Superseded to 12-6700)

$30.99

$

In Stock, only 1 left!

0

32

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

33

Toro 324-2

SCREW-HH

$4.99

$

In Stock, Qty 5

0

34

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Toro 7-3833

Shoulder Bolt

$

$

Currently unavailable

36

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

37

Toro 7-3831

Idler Arm

$

$

Currently unavailable

38

Toro 7-6270

Clip Belt Guide

$

$

Currently unavailable

39

Toro 7-0453

Pulley Engine

$

$

Currently unavailable

Toro 221-278

Engine, 960

Note: Not illustrated

$

$

Currently unavailable

40

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0
