55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

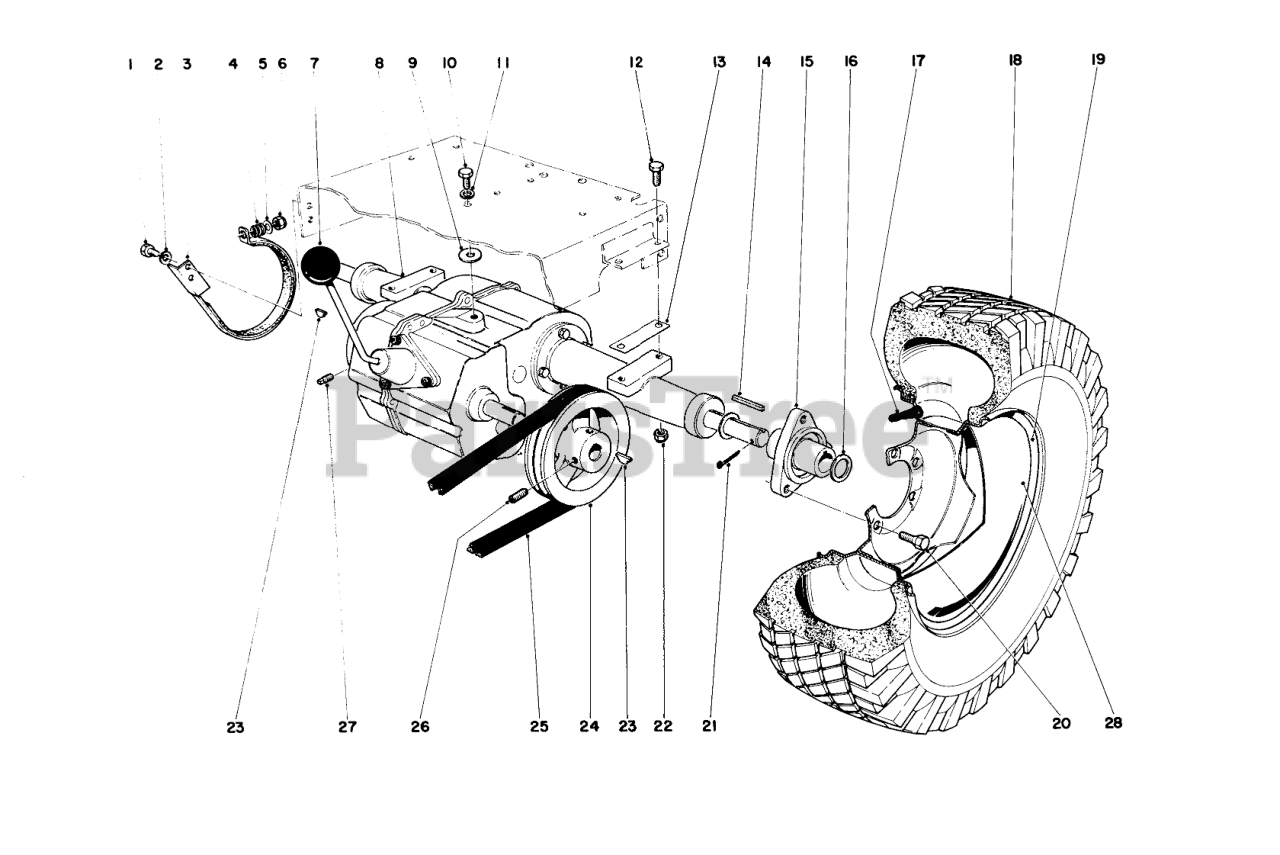

55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > REAR AXLE ASSEMBLY

  • Title
321-2

1

SCREW-HH

Part# 321-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.11

3253-3

2

WASHER-LOCK

Part# 3253-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.10

7-3646

3

Brake Band Assy.

Part# 7-3646

OEM Warranty Repair Part for Toro

Currently unavailable

7-3816

4

Spring

Part# 7-3816

OEM Warranty Repair Part for Toro

Currently unavailable

3256-3

5

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

32152-1

6

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

233-21

7

KNOB

Part# 233-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.29

7-0477

8

Transmission Complete

Part# 7-0477

OEM Warranty Repair Part for Toro

Currently unavailable

3256-4

9

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-6

10

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.97

3253-21

11

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

323-8

12

SCREW-HH

Part# 323-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

7-0461

13

Axle Pad

Part# 7-0461

OEM Warranty Repair Part for Toro

Currently unavailable

7-0238

14

KEY-SQUARE

Part# 7-0238

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.85

7-0480

15

Wheel Hub

Part# 7-0480

OEM Warranty Repair Part for Toro

Currently unavailable

7-0481

16

Washer

Part# 7-0481

OEM Warranty Repair Part for Toro

Currently unavailable

232-24

17

STEM-VALVE

Part# 232-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.82

231-41

18

Tire

Part# 231-41 (Superseded to 231-101)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $154.26

217-62

19

Rear Wheel

Part# 217-62

OEM Warranty Repair Part for Toro

Currently unavailable

7-1418

20

Tapered Capscrew

Part# 7-1418

OEM Warranty Repair Part for Toro

Not available

3272-30

21

PIN-COTTER

Part# 3272-30

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.18

32152-2

22

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

3257-23

23

KEY-WOODRUFF

Part# 3257-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.10

7-0478

24

Pulley Transmission

Part# 7-0478

OEM Warranty Repair Part for Toro

Currently unavailable

7-0551

25

V-BELT, TRANS (SET OF 2)

Part# 7-0551

OEM Warranty Repair Part for Toro

Not available

3246-4

26

SCREW-SET

Part# 3246-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.85

3246-4

27

SCREW-SET

Part# 3246-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.85

217-78

28

Hub Cap 960

Part# 217-78

OEM Warranty Repair Part for Toro

Currently unavailable

7-0554

Wheel Assy.

Part# 7-0554

OEM Warranty Repair Part for Toro

Currently unavailable
