55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

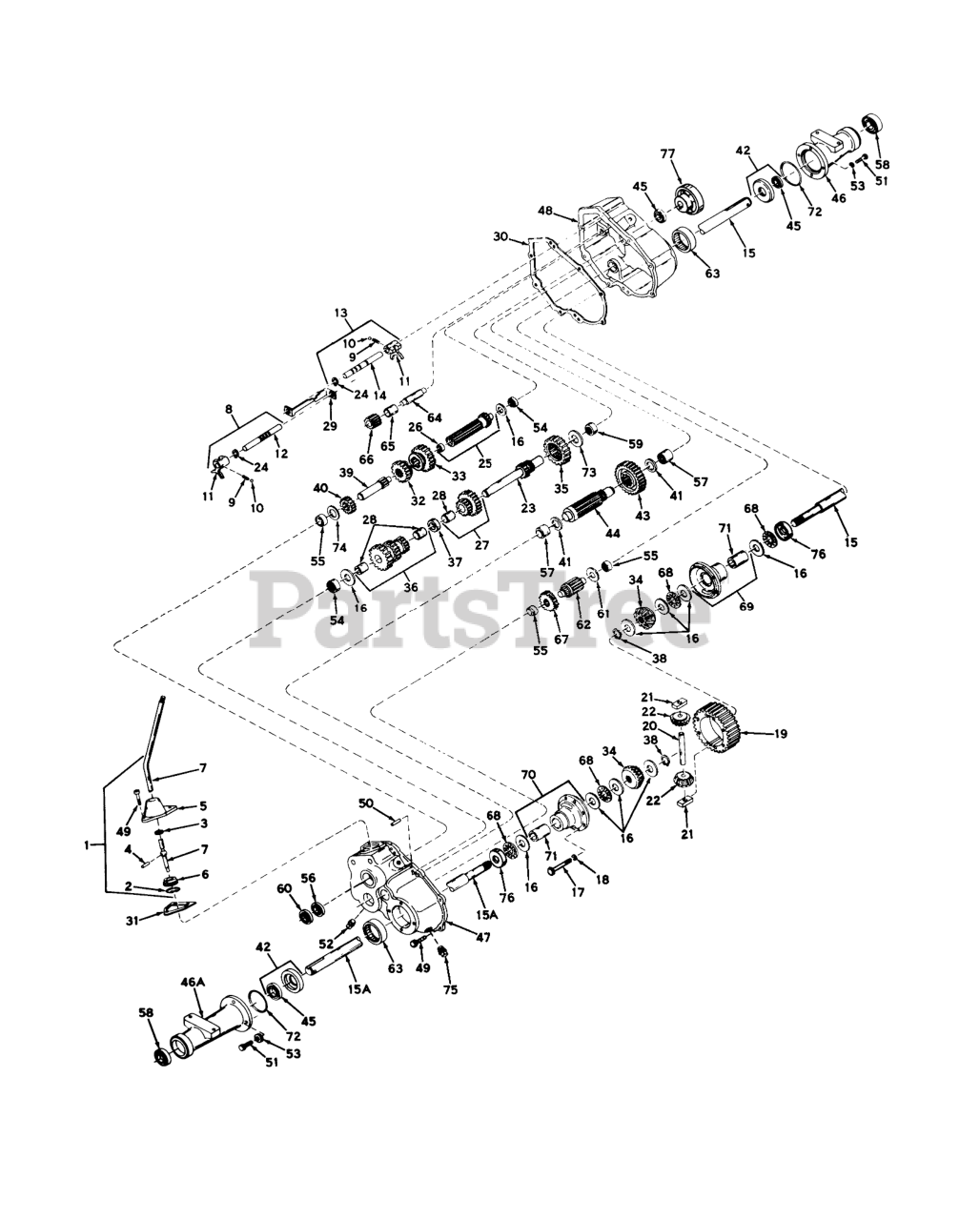

55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > TRANSAXLE ASSEMBLY PARTS LIST

  • Title
784062A

1

Lever & Housing Assy., Shift (Incl. Nos. 2 thru 7)

Part# 784062A

OEM Warranty Repair Part for Toro

Currently unavailable

792016

2

Ring-Snap

Part# 792016

OEM Warranty Repair Part for Toro

Currently unavailable

792001

3

O Ring

Part# 792001

OEM Warranty Repair Part for Toro

Currently unavailable

792002

4

Roll Pin

Part# 792002

OEM Warranty Repair Part for Toro

Currently unavailable

784093

5

Housing-Shift Lever

Part# 784093

OEM Warranty Repair Part for Toro

Currently unavailable

794094

6

Keeper, Shift Lever

Part# 794094

OEM Warranty Repair Part for Toro

Currently unavailable

784063

7

Lever, Shift

Part# 784063

OEM Warranty Repair Part for Toro

Currently unavailable

784054

8

Rod Assy., Shift (Incl. Nos. 9 thru 12 & 24)

Part# 784054

OEM Warranty Repair Part for Toro

Currently unavailable

792003

9

Spring

Part# 792003

OEM Warranty Repair Part for Toro

Currently unavailable

792004

10

Piston ASM

Part# 792004

OEM Warranty Repair Part for Toro

Currently unavailable

784004

11

Shift Fork

Part# 784004

OEM Warranty Repair Part for Toro

Currently unavailable

784055

12

Rod, Shifter

Part# 784055

OEM Warranty Repair Part for Toro

Currently unavailable

784056

13

Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 & 24)

Part# 784056

OEM Warranty Repair Part for Toro

Currently unavailable

784057

14

Rod, Shifter

Part# 784057

OEM Warranty Repair Part for Toro

Currently unavailable

774046

15

Axle, R.H.

Part# 774046

OEM Warranty Repair Part for Toro

Currently unavailable

774047

15A

Axle, L.H.

Part# 774047

OEM Warranty Repair Part for Toro

Currently unavailable

780042

16

Washer

Part# 780042

OEM Warranty Repair Part for Toro

Currently unavailable

792005

17

Screw (1/4-20 x 2-1/2)

Part# 792005

OEM Warranty Repair Part for Toro

Currently unavailable

792006

18

Lockwasher

Part# 792006

OEM Warranty Repair Part for Toro

Currently unavailable

778033A

19

Gear-Ring

Part# 778033A

OEM Warranty Repair Part for Toro

Currently unavailable

786019

20

Pin-Drive

Part# 786019

OEM Warranty Repair Part for Toro

Currently unavailable

786027

21

Biock-Drive

Part# 786027

OEM Warranty Repair Part for Toro

Currently unavailable

778094

22

Pinion-Bevel

Part# 778094

OEM Warranty Repair Part for Toro

Currently unavailable

776029A

23

Shaft & Gear-Brake

Part# 776029A

OEM Warranty Repair Part for Toro

Currently unavailable

792017

24

Ring-Snap

Part# 792017

OEM Warranty Repair Part for Toro

Currently unavailable

776026

25

Shaft & Bearing Assy., Pinion (Incl. No. 26)

Part# 776026

OEM Warranty Repair Part for Toro

Currently unavailable

780018

26

Bearing

Part# 780018

OEM Warranty Repair Part for Toro

Currently unavailable

778034

27

Gear Cluster Assy. (Incl. No .28)

Part# 778034

OEM Warranty Repair Part for Toro

Currently unavailable

780053

28

Bushing

Part# 780053

OEM Warranty Repair Part for Toro

Currently unavailable

784074

29

Stop-Shifter

Part# 784074

OEM Warranty Repair Part for Toro

Currently unavailable

788023

30

Gasket-Case & Cover

Part# 788023

OEM Warranty Repair Part for Toro

Currently unavailable

788022

31

Gasket-Lever Housing

Part# 788022

OEM Warranty Repair Part for Toro

Currently unavailable

778019

32

Gear, Shifting

Part# 778019

OEM Warranty Repair Part for Toro

Currently unavailable

778020

33

Gear, Shifting

Part# 778020

OEM Warranty Repair Part for Toro

Currently unavailable

778095

34

Gear-Bevel

Part# 778095

OEM Warranty Repair Part for Toro

Currently unavailable

778037

35

Gear-Spur

Part# 778037

OEM Warranty Repair Part for Toro

Currently unavailable

778035

36

Gear Cluster Assy., (Incl. No.28)

Part# 778035

OEM Warranty Repair Part for Toro

Currently unavailable

786024

37

Spacer

Part# 786024

OEM Warranty Repair Part for Toro

Currently unavailable

792018

38

Ring-Snap

Part# 792018

OEM Warranty Repair Part for Toro

Currently unavailable

776027

39

Shaft, Input

Part# 776027

OEM Warranty Repair Part for Toro

Currently unavailable

778024

40

Gear (10 teeth)

Part# 778024

OEM Warranty Repair Part for Toro

Currently unavailable

780052

41

Washer-Thrust

Part# 780052

OEM Warranty Repair Part for Toro

Currently unavailable

788021

42

Seal & Retainer Assy., Oil (Incl. No. 45)

Part# 788021

OEM Warranty Repair Part for Toro

Currently unavailable

778036

43

Gear-Output

Part# 778036

OEM Warranty Repair Part for Toro

Currently unavailable

776028

44

Pinion-Output

Part# 776028

OEM Warranty Repair Part for Toro

Currently unavailable

788008

45

Seal-Oil

Part# 788008

OEM Warranty Repair Part for Toro

Currently unavailable

782024

46

Housing, R.H. Axle

Part# 782024

OEM Warranty Repair Part for Toro

Currently unavailable

782025

46A

Housing, L.H. Axle

Part# 782025

OEM Warranty Repair Part for Toro

Currently unavailable

770015

47

Case Assy., Transaxle (Incl. Nos. 54, 55, 57 & 63)

Part# 770015

OEM Warranty Repair Part for Toro

Currently unavailable

772019

48

Cover Assy., Transaxle (Incl. Nos. 54, 55, 57, 59 & 63)

Part# 772019

OEM Warranty Repair Part for Toro

Currently unavailable

792007

49

Screw

Part# 792007

OEM Warranty Repair Part for Toro

Currently unavailable

786026

50

Dowel Pin

Part# 786026

OEM Warranty Repair Part for Toro

Currently unavailable

792028

51

Screw (5/16-18 X 7/8)

Part# 792028

OEM Warranty Repair Part for Toro

Currently unavailable

792019

52

Plug-Magnetic Drain

Part# 792019

OEM Warranty Repair Part for Toro

Currently unavailable

792029

53

Lockwasher

Part# 792029

OEM Warranty Repair Part for Toro

Currently unavailable

780049

54

Bearing-Needle

Part# 780049

OEM Warranty Repair Part for Toro

Currently unavailable

780022

55

Bearing, Needle

Part# 780022

OEM Warranty Repair Part for Toro

Currently unavailable

780024

56

Bearing

Part# 780024

OEM Warranty Repair Part for Toro

Currently unavailable

780047

57

Bearing-Needle

Part# 780047

OEM Warranty Repair Part for Toro

Currently unavailable

780050

58

Bearing-Ball

Part# 780050

OEM Warranty Repair Part for Toro

Currently unavailable

780046

59

Bearing-Needle

Part# 780046

OEM Warranty Repair Part for Toro

Currently unavailable

788025

60

Seal-Oil

Part# 788025

OEM Warranty Repair Part for Toro

Currently unavailable

780001

61

Washer

Part# 780001

OEM Warranty Repair Part for Toro

Currently unavailable

776031

62

Shaft & Pinion

Part# 776031

OEM Warranty Repair Part for Toro

Currently unavailable

780048

63

Bearing Needle

Part# 780048

OEM Warranty Repair Part for Toro

Currently unavailable

776030

64

Shaft-Reverse Idler

Part# 776030

OEM Warranty Repair Part for Toro

Currently unavailable

786025

65

Spacer-Reverse Idler

Part# 786025

OEM Warranty Repair Part for Toro

Currently unavailable

778016

66

Idler Reverse

Part# 778016

OEM Warranty Repair Part for Toro

Currently unavailable

778038

67

Gear-Spur (22 Teeth)

Part# 778038

OEM Warranty Repair Part for Toro

Currently unavailable

780039

68

Bearing-Thrust

Part# 780039

OEM Warranty Repair Part for Toro

Currently unavailable

774071A

69

Carrier Assy., Differential (Incl. No. 71)

Part# 774071A

OEM Warranty Repair Part for Toro

Currently unavailable

774072A

70

Carrier Assy., Differential (Incl. No. 71)

Part# 774072A

OEM Warranty Repair Part for Toro

Currently unavailable

780041

71

Bushing

Part# 780041

OEM Warranty Repair Part for Toro

Currently unavailable

788024

72

O-Ring

Part# 788024

OEM Warranty Repair Part for Toro

Currently unavailable

780007

73

Washer-Thrust

Part# 780007

OEM Warranty Repair Part for Toro

Currently unavailable

780051

74

Washer

Part# 780051

OEM Warranty Repair Part for Toro

Currently unavailable

792010

75

Plug

Part# 792010

OEM Warranty Repair Part for Toro

Currently unavailable

780075

76

Race-Thrust

Part# 780075

OEM Warranty Repair Part for Toro

Currently unavailable

790002

77

Drum, Brake

Part# 790002

OEM Warranty Repair Part for Toro

Currently unavailable
