554 (590-554C-100) - Cub Cadet Belt Driven Vacuum Collector att Blower Parts Diagram

Belt Driven Vacuum Collector

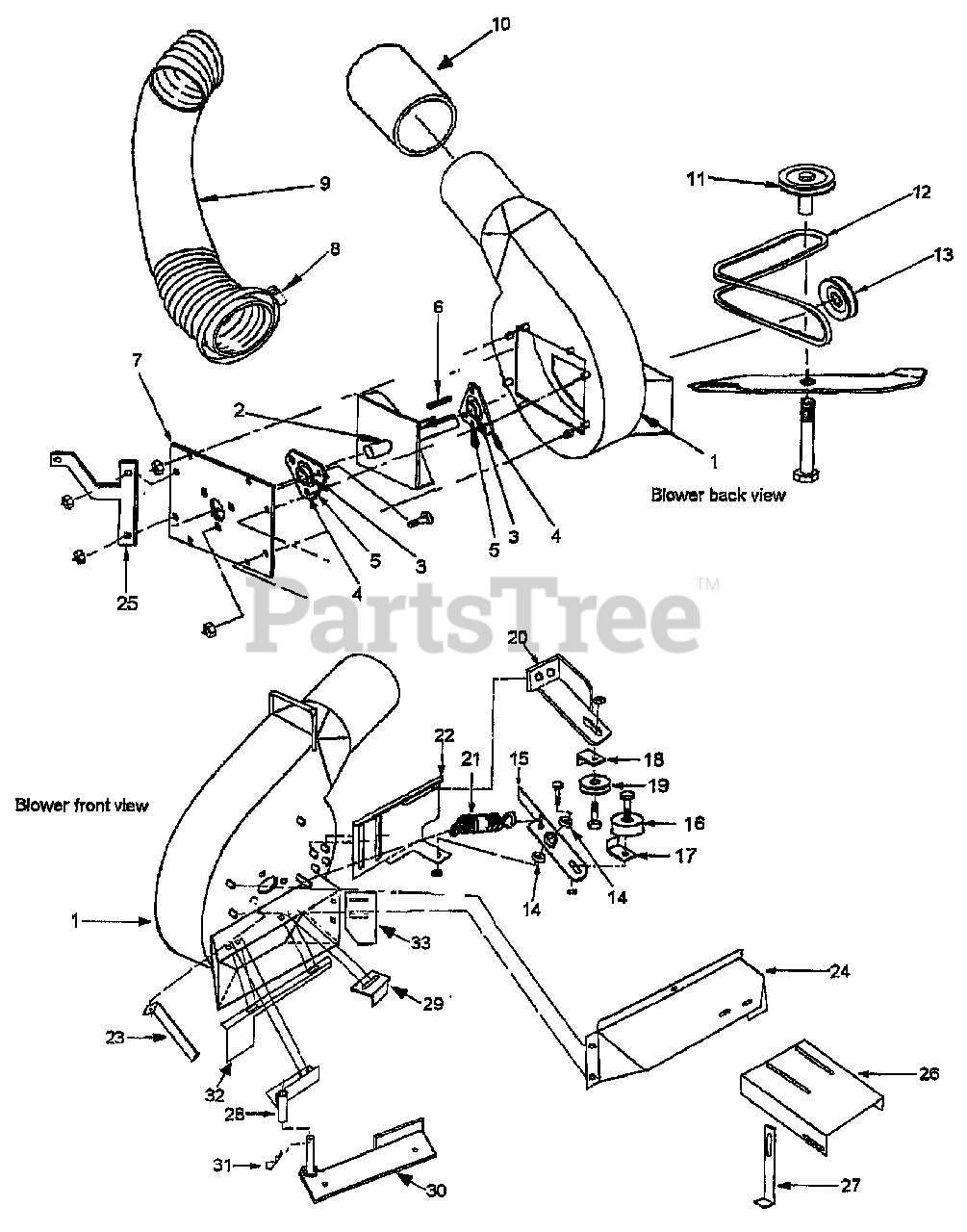

Blower Parts Diagram

  • Title

1

Cub Cadet TS-2002

BLOWER CANISTER UNIVERSAL

$

$

Not available

2

Cub Cadet TS-2011

FAN

$

$

Not available

3

Cub Cadet TS-2150

FAN BEARING w/collar for blower back side
(Superseded to TS-2150P)

$

$

Not available

4

Cub Cadet TS-2162

BEARING FLANGETTE WITH GREASE ZERK

$

$

Not available

5

Cub Cadet TS-2160

BEARING FLANGETTE

$26.99

$

In Stock, only 1 left!

0

6

Cub Cadet TS-2125

MACHINERY KEY 1/4" x 1"
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet TS-2084

BLOWER COVER PLATE

$

$

Not available

8

Cub Cadet TS-30407

7" HOSE CLAMP

$

$

Not available

9

Cub Cadet TS-30046

6" HOSE X 46"

$

$

Not available

10

Cub Cadet TS-20305

HOSE INSERT 6"

$

$

Not available

11

Cub Cadet TS-25355

DECK PULLEY - (48", 54" and 80" DECK)
(Superseded to TS-25455)

$

$

Not available

12

Cub Cadet TS-84580

BELT INSTA POWER A56

$

$

Not available

13

Cub Cadet TS-2418

BLOWER DRIVE PULLEY 3.5

$

$

Not available

14

Cub Cadet TS-2030

IDLER ARM BEARING

$

$

Not available

15

Cub Cadet TS-2033

IDLER ARM

$

$

Not available

16

Cub Cadet TS-16888

FLAT IDLER PULLEY 3.25"

$

$

Not available

17

Cub Cadet TS-17103

FLAT IDLER PULLEY BRACKET

$

$

Not available

18

Cub Cadet TS-18104

V-IDLER PULLEY BRACKET

$

$

Not available

19

Cub Cadet TS-19188

V-IDLER PULLEY 3.5"

$

$

Not available

20

Cub Cadet TS-2045

V PULLEY BRACKET

$

$

Not available

21

Cub Cadet TS-2483

IDLER SPRING

$

$

Not available

22

Cub Cadet TS-2040

BLOWER PULLEY BRACKET

$

$

Not available

23

TS-2089

FAN PULLEY BELT BRACKET

$

$

Not available

24

Cub Cadet TS-2050

BLOWER BELT COVER

$

$

Not available

25

Cub Cadet TS-2042

PULLEY BRACKET SUPPORT

$

$

Not available

26

Cub Cadet TS-2090

BELT GUARD

$

$

Not available

27

Cub Cadet TS-2092

BELT GUARD LEG

$

$

Not available

28

Cub Cadet TS-3710

BLOWER MOUNT FRONT

$

$

Not available

29

Cub Cadet TS-3720

BLOWER SUPPORT BRACKET

$

$

Not available

30

Cub Cadet TS-3730

BLOWER MOUNT DECK

$

$

Not available

31

Cub Cadet TS-150995

HAIR SPRING COTTER # 6

$

$

Not available

32

Cub Cadet TS-3740

BLOWER TAB

$

$

Not available

33

Cub Cadet TS-3750

BLOWER BLOCKING PLATE

$

$

Not available
