55402 (960) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

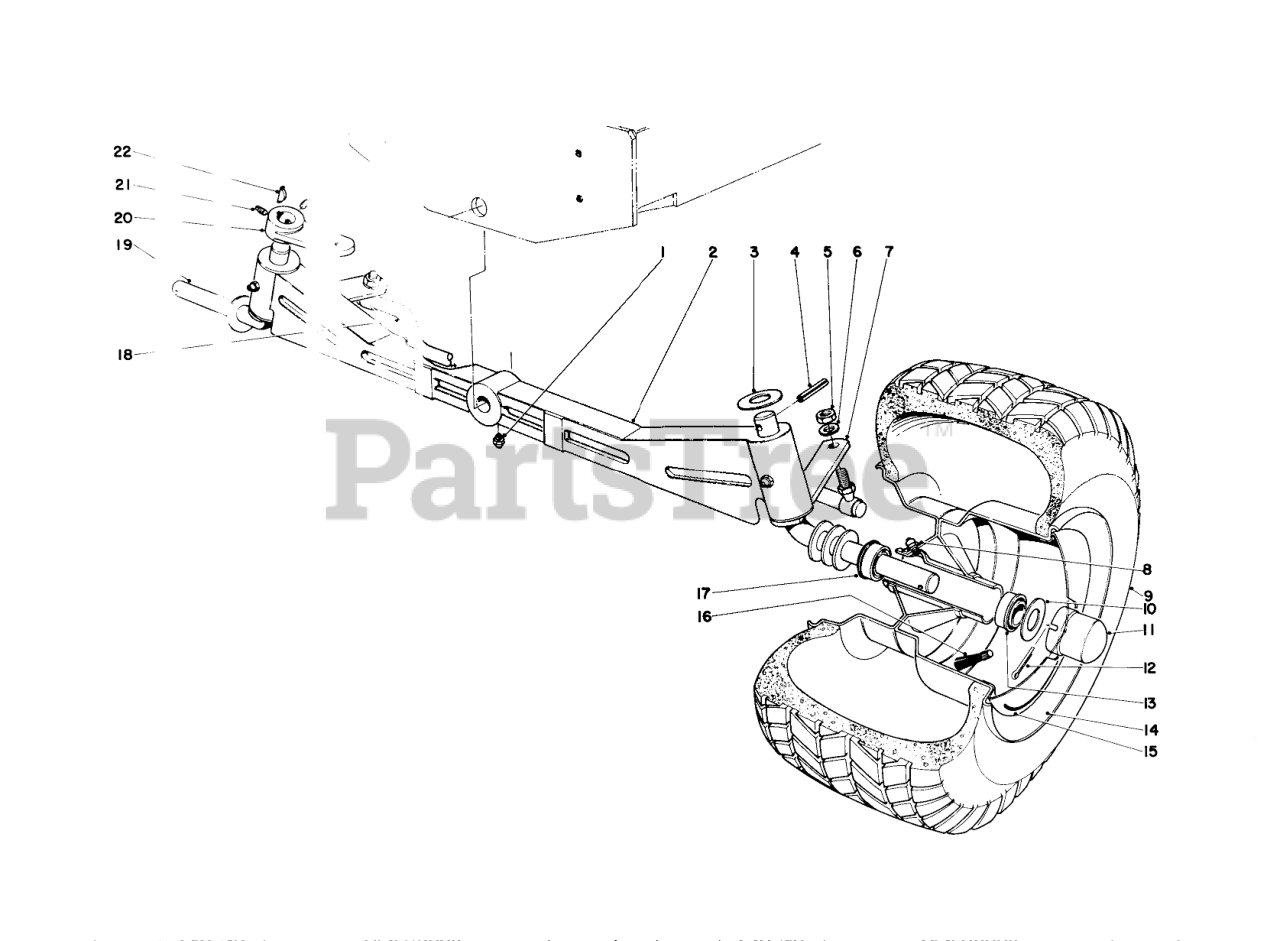

55402 (960) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > FRONT AXLE ASSEMBLY

  • Title
302-43

1

Grease Fitting

Part# 302-43

OEM Warranty Repair Part for Toro

Currently unavailable

7-3846

2

Front Axle Housing

Part# 7-3846

OEM Warranty Repair Part for Toro

Not available

3256-28

3

WASHER-FLAT

Part# 3256-28

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.54

32121-15

4

PIN-ROLL

Part# 32121-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.10

3219-3

5

NUT-HEX

Part# 3219-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.28

3253-21

6

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

7-0416

7

Axle Assy., L.H.

Part# 7-0416

OEM Warranty Repair Part for Toro

Currently unavailable

302-S

8

Grease Fitting

Part# 302-S

OEM Warranty Repair Part for Toro

Currently unavailable

231-39

9

Tire

Part# 231-39

OEM Warranty Repair Part for Toro

Currently unavailable

3256-28

10

WASHER-FLAT

Part# 3256-28

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.54

217-64

11

Hub Cap 10 H.P.

Part# 217-64

OEM Warranty Repair Part for Toro

Currently unavailable

3272-23

12

PIN-COTTER

Part# 3272-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.53

251-210

13

Bearing

Part# 251-210 (Superseded to 110513)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

217-79

14

Rim

Part# 217-79

OEM Warranty Repair Part for Toro

Currently unavailable

217-77

15

Hub Cap 960

Part# 217-77

OEM Warranty Repair Part for Toro

Currently unavailable

232-21

16

VALVE -STEM

Part# 232-21 (Superseded to 5108)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.68

251-209

17

Bearing, Inner

Part# 251-209

OEM Warranty Repair Part for Toro

Currently unavailable

7-0417

18

Tie Rod

Part# 7-0417

OEM Warranty Repair Part for Toro

Currently unavailable

7-0415

19

Axle Assy., R.H.

Part# 7-0415

OEM Warranty Repair Part for Toro

Currently unavailable

7-0418

20

Steering Lever

Part# 7-0418

OEM Warranty Repair Part for Toro

Currently unavailable

3242-2

21

SCREW-SQH

Part# 3242-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.35

3257-23

22

KEY-WOODRUFF

Part# 3257-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.84

7-3340

Front Wheel Assy.

Part# 7-3340

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable
